FTTH 8 PON GPON OLT 78Gbps Switching Capacity With 10G Uplink Port

Basic Information
Place of Origin: Shenzhen
Brand Name: OPTFOCUS
Certification: 3C,CE,RoHS,FCC
Model Number: OFSG3508
Minimum Order Quantity: 1 piece
Price: USD 799 1piece
Packaging Details: Box and carton
Delivery Time: 7-14 days
Payment Terms: L/C, T/T
Supply Ability: 1000 piece a month
Type: FTTx Solutions Use: FTTH
Product: FTTH OLT GPON Switching Capacity: 78Gbps
Working Temperature: -10°C~55°C Keywords: GPON OLT
PON Port: 8 PON Ports Forwarding Capacity(Ipv4/Ipv6): 65.472Mpps
High Light:

FTTH 8 PON GPON OLT

,

10G Uplink 8 PON GPON OLT

,

FTTx Solutions 8 Ports GPON OLT

OPTFOCUS Good Price FTTH 8 PON Ports GPON OLT with 10G Uplink port

OPTFOCUS Good Price FTTH 8 PON Ports GPON OLT with 10G Uplink port

Product Description

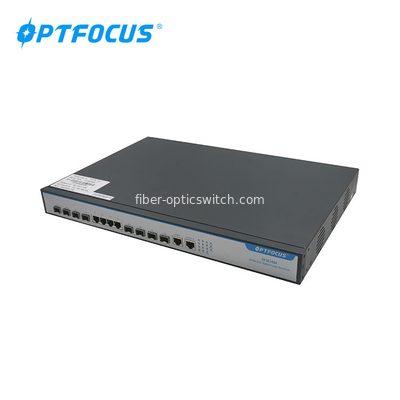

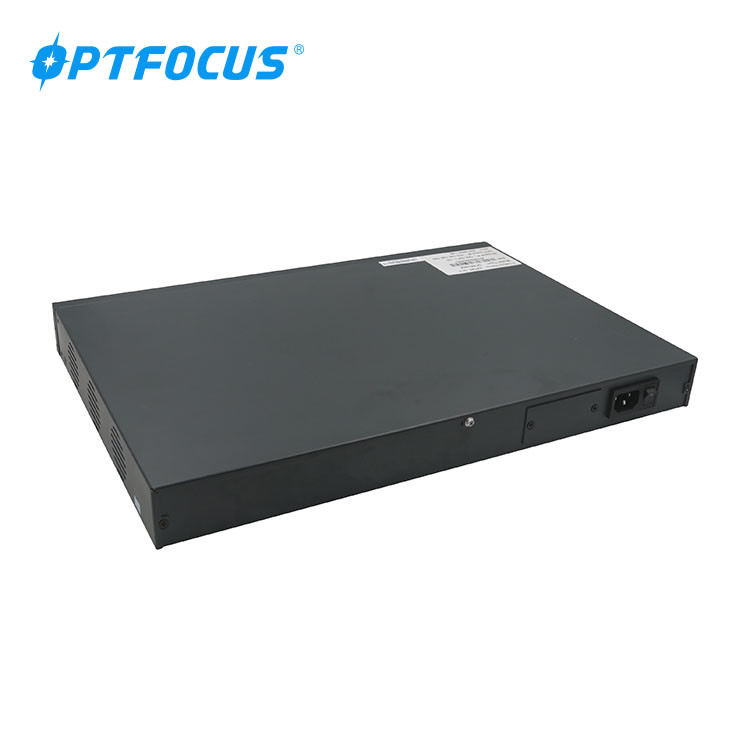

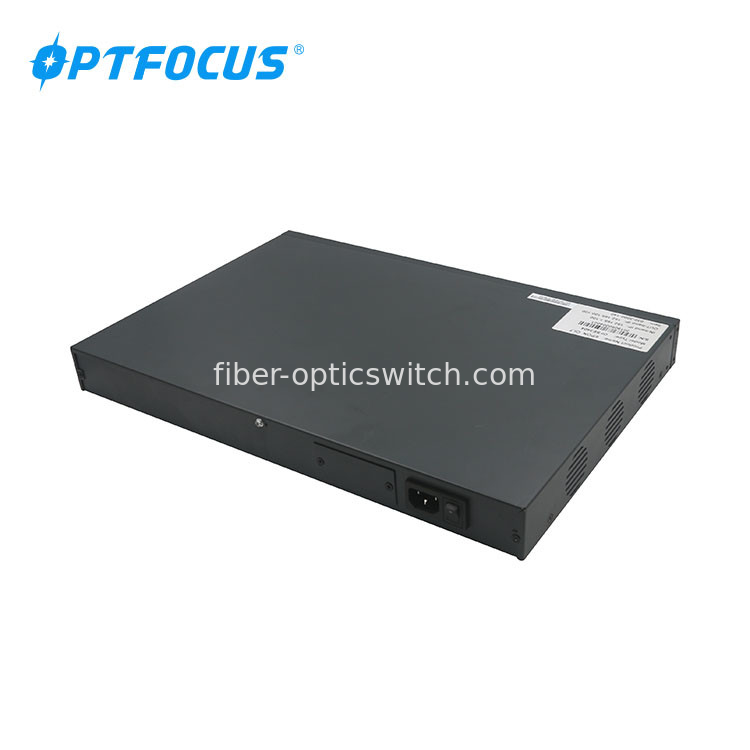

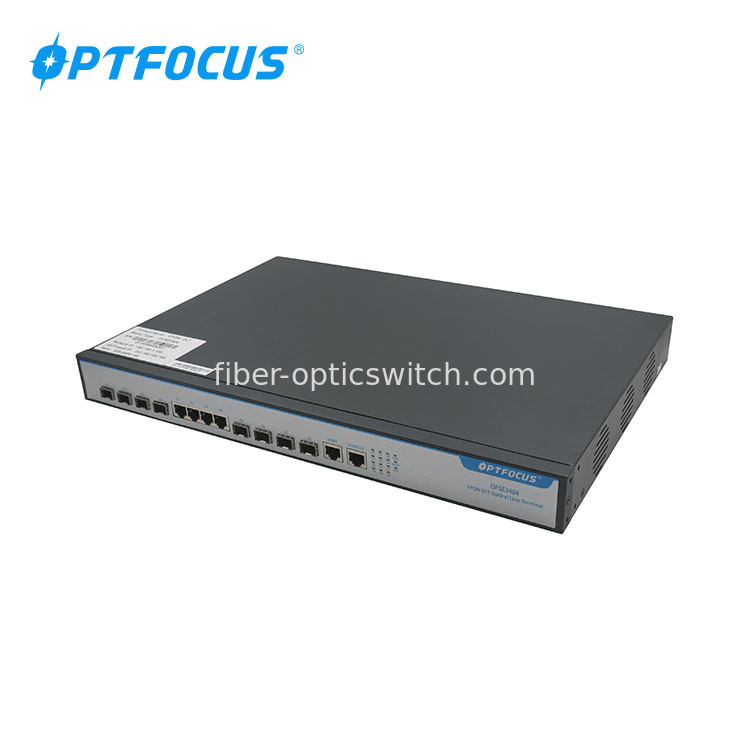

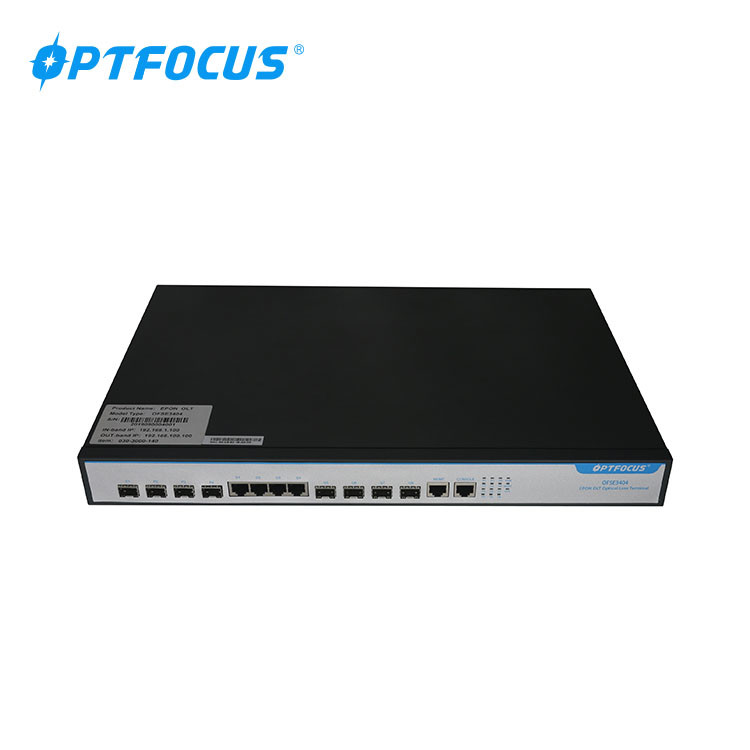

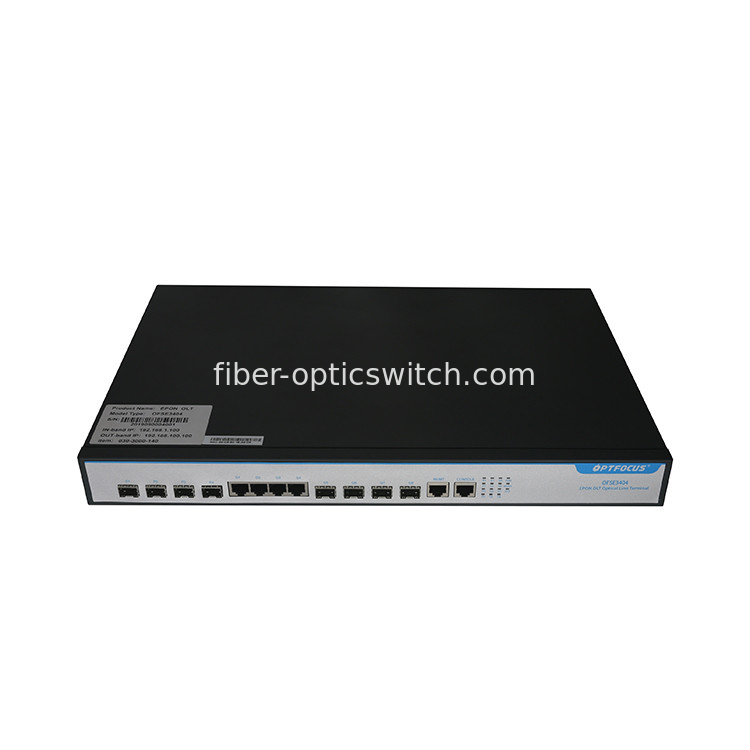

OFSG3508 Smart Cassette GPON OLT
8*PON port, 4*GE COMBO port, 2*10GE SFP+ port

[Product Overview]

OFSG3508 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode.OFSG3508 can be used with NGBNVIEW network management system so as to provide users with the comprehensive access and perfect solution.
OFSG3508 provides 8 * downlink GPON port, 4 *GE combo port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. OFSG3508 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

[Specification]

Item
OFSG3508
Switching Capacity
78Gbps
Forwarding
Capacity(Ipv4/Ipv6)
65.472Mpps
Service Port
8*PON port, 4*GE COMBO port, 2*10GE SFP+ port
Redundancy Design
Dual power supply
Support double AC input, double DC input and AC+DC input
Power Supply
AC: input 90~264V 47/63Hz;
DC: input -36V~-72V
Power consumption 50W
Dimensions (Width
x Depth x Height)
437mm×44mm×280mm
Weight (Fully-Loaded) ≤5kg

Environmental

requirements

Working temperature:-10°C~55°C

Storage temperature:-40°C~70°C

Relative humidity:10%~90%,not-condensing







ACL

Support standard and extended ACL

Support ACL policy based on time period

Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802. 1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc.





QoS

Support flow rate limiting function based on custom business flow

Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function,

support queue scheduling algorithms such as SP/WRR/SP+WRR









Safety

Support user hierarchical management and password protection

Support IEEE 802. 1X authentication

Support Radius TAC ACS+ authentication

Support MAC address learning limit, support black hole MAC function Support port isolation

Support broadcast message rate suppression

Support IP Source Guard Support ARP flood suppression and ARP spoofing protection

Support DOS attack and virus attack protection



Layer 3

Support ARP learning and aging

Support static route

Support dynamic route RIP/OSPF/BGP/ISIS

Support VRRP











System management

CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0

Support FTP,TFTP file upload and download

Support RMON

Support SNTP

Support system work log

Support LLDP neighbor device discovery protocol

Support 802.3ah Ethernet OAM

Support RFC 3164 Syslog

Support Ping and Traceroute

Our Services

Warranty: 1.5 years free repair, lifetime compensatory maintenance.

Contact us for more details.

Packaging & Shipping

PACKING: 1pcs/carton

G.W.: 8.5KGS
