| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE ROSE |
| Model Number: | OFS-IMSF2T4 |
| Minimum Order Quantity: | 1 pcs |
| Price: | 15USD |
| Packaging Details: | 30 pcs per carton box |
| Delivery Time: | 7-14 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 PCS per month |
| Type: | Industrial POE Switch | Use: | FTTX/FTTB |
|---|---|---|---|
| Distance: | 80KM | Wavelength: | 1310/1550NM |
| High Light: | 4 Ports POE Managed Network Switch,2 Gigabit SFP Managed Network Switch,2 Gigabit SFP Industrial Ethernet Switch |
||

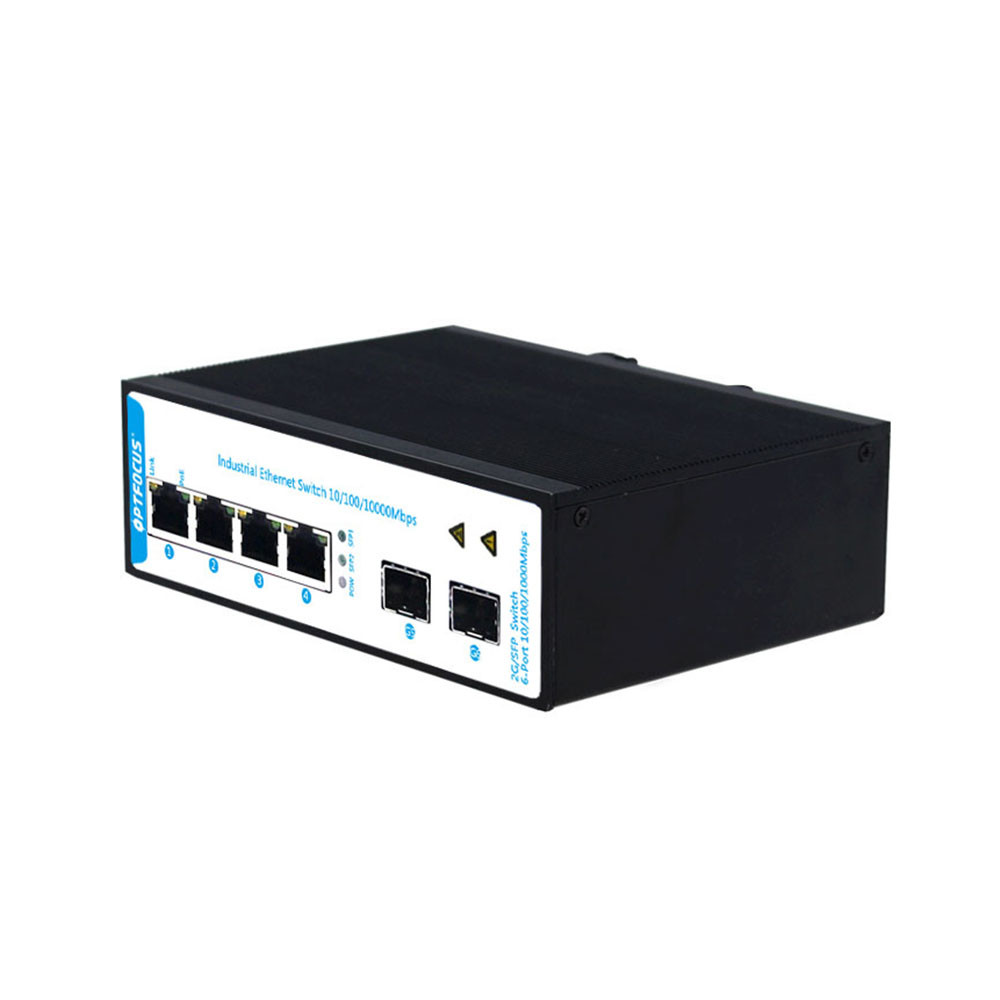

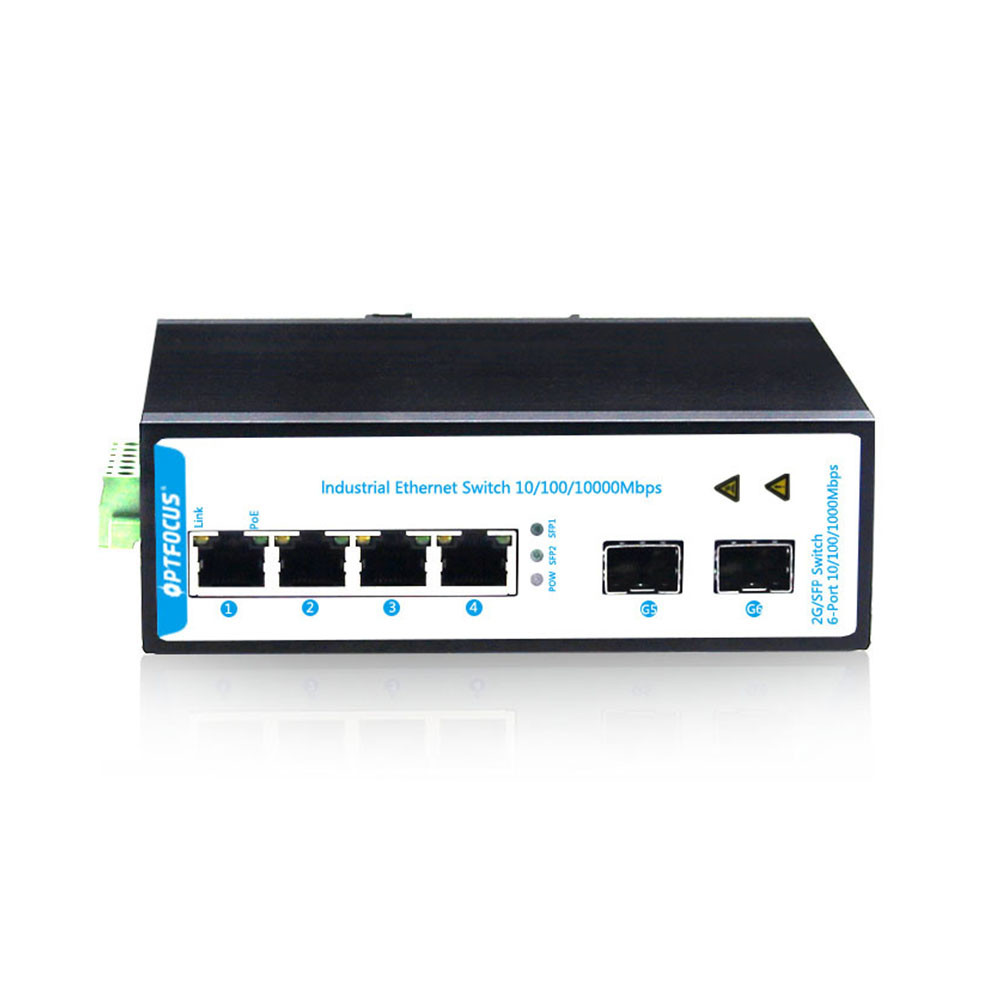

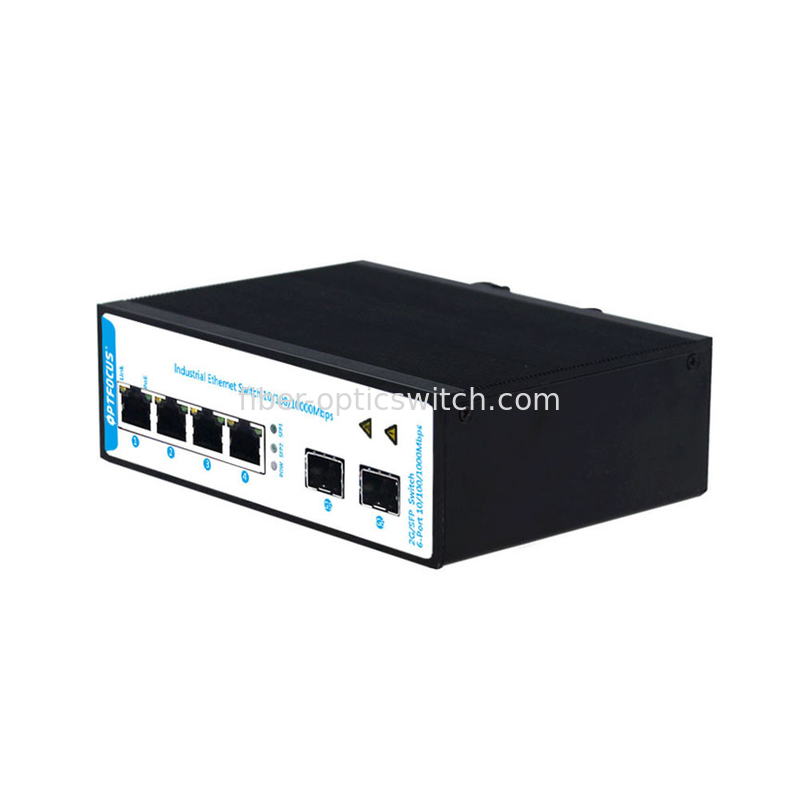

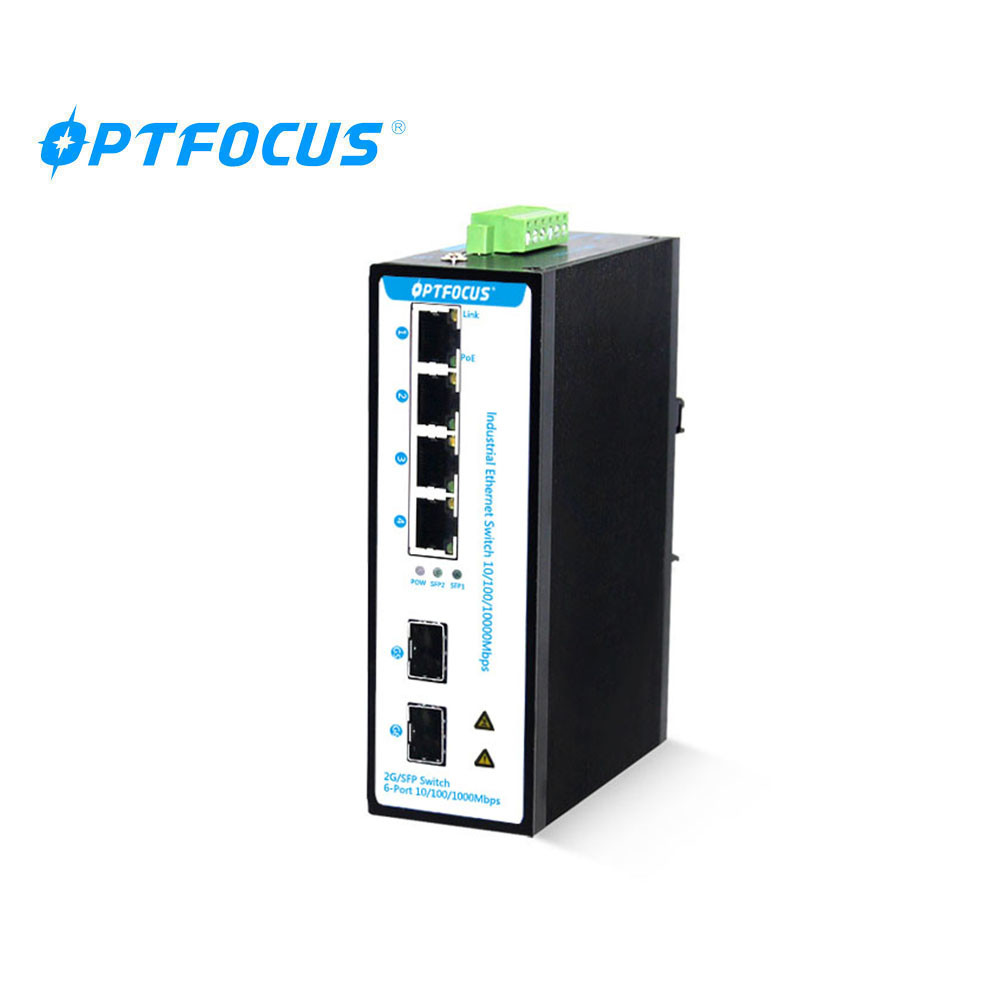

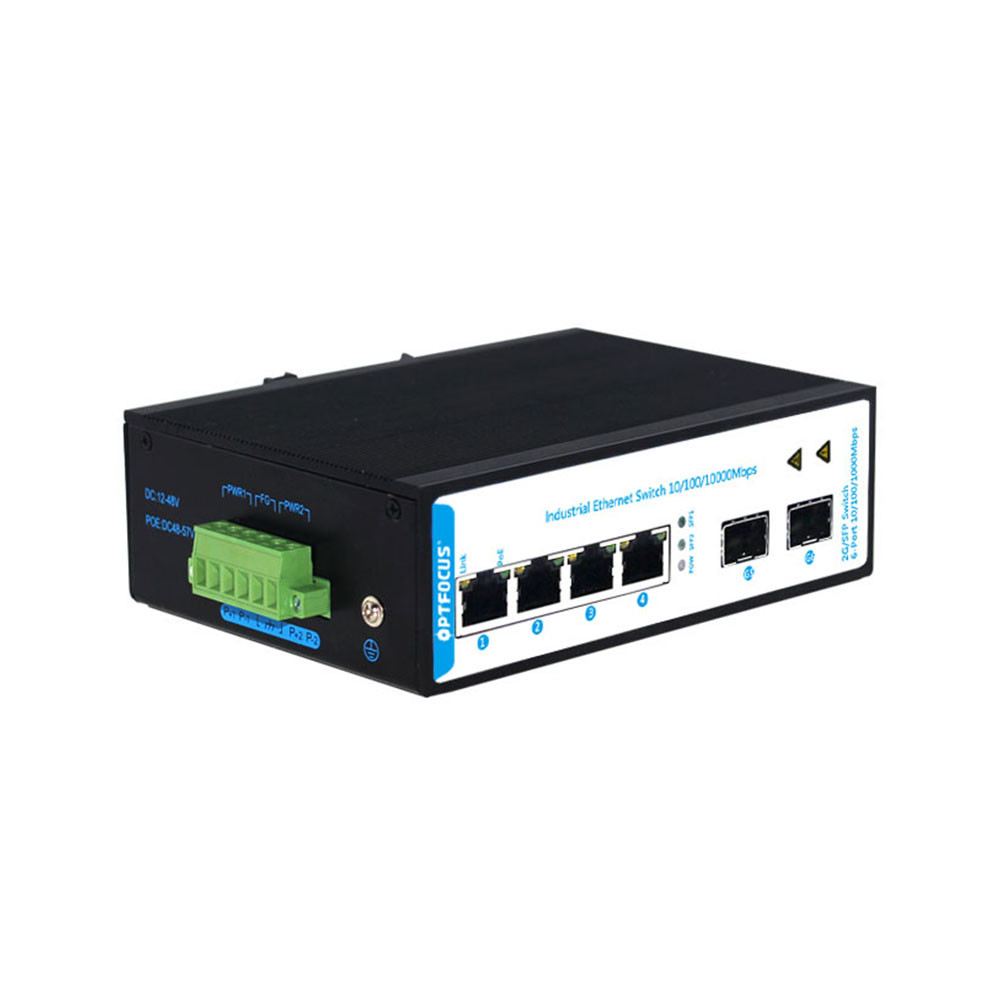

Managed Network Switch 4 Ports Industrial Ethernet Switch 2 Gigabit SFP Ports POE Switch
Technical parameter list
with 4*10/100/1000M PoE Ports + 2*1000M SFP Port, using high-quality high-speed network IC and the
most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be
10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically
detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards.
The non-POE device intelligently detects no power and only transmits data.
PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals
(such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals.
These devices receiving dc Power supply are called receiving devices.
| Product Name | 6-Ports 10/100/1000M PoE Switch |
| Model | OFS-PE-GSF2T4 |
| Connector Type | 4 Ports 10/100/1000M PoE + 2 Port 1000M SFP Uplink |
Features
Ø 4 port 10/100/100Mbps with Auto Uplink™ , 2 port 100Mbps Fiber Slot
Ø Automatic MAC address learning and aging
Ø 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
Ø LED indicators for monitoring power/link/activity
Ø Supports10/100/1000Mbps-Full/Half-duplex
Ø Excellent heat elimination without cooling fan.
Ø Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Ø Support dual power redundancy(optional)
Ø The built-in 12V lead acid battery charging circuit. (optional)
