| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | 3C,CE,FCC,RoHS |
| Model Number: | OFS-IGSF1T8 |
| Minimum Order Quantity: | 3 piece |
| Price: | USD 29.9 1piece |
| Packaging Details: | Box and carton |
| Delivery Time: | 7-14 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 piece a month |
| Certification: | CE RoHS FCC | Ports: | ≤ 8 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | POE |
| Products Status: | Stock | Warranty: | 1 Year |
| Poe Standard: | IEEE802.3af/at | Operating Temperature: | -40~85 ℃ |
| Application: | Industrial Ethernet Switch For IP Camera | Condition: | 100% Original Brand |
| Keywords: | Industrial Switch | Key Words: | 8 Port Industrial Switch |
| High Light: | IEEE802.3af Micro POE Switch,OPTFOCUS Micro POE Switch,FCC Industrial Push Switch |
||
Factory OEM/ODM Industrial Peo Switch Micro Switch Industrial Push Switch Double

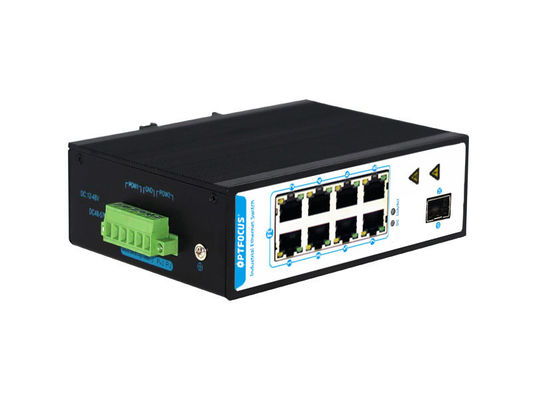

The OFS-IGSF1T8 series is an industrial Ethernet switch/media converter independent development by OPTFOCUS,with 8*10/100/1000M Ethernet ports and 1x 1000M SFP port, Users can select different optical modules according to their needs, such as multi-mode dual fiber and single-mode dual fiber, single-mode single fiber, etc. It uses the latest IC in the United States, with stable performance, high quality and high cost performance. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use
| Product Name | 11-Ports 10/100M PoE Switch | ||
| Model | OFS-PE-GSF1T2DT8-I | ||
| Connector Type | 8 Ports 10/100M PoE + 2 Ports 10/100/1000M Ethernet Uplink + 1 Port 1000M SFP Uplink | ||
| Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z IEEE802.3af/at |
||
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||
|
Max each port: 15.4W ( IEEE 802.3af ) Max each port:30W ( IEEE 802.3at ) |
|||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media |
10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-T: Cat 5 UTP(≤250 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||
| Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||
|
Performance Specification
|
Bandwidth: 7.6Gbps | ||
| MAC Address: 2K | |||
| Packet Buffer Memory: 448K | |||
| Packet Forwarding Rate: 5.6Mpps | |||
| Forwarding Mode: Store-And-Forward | |||
| Power Supply | Adapter Input Voltage: AC100-240V; Product Input Voltage: DC48-55V, Output: 52V2A, Power Budget: 104W | ||
| Led indicator | PWR |
Power supply indicator (Red) |
Lighting:Powered Un-Light:No Power |
|
SW |
DIP indicator (Green) |
OFF: Normal VLAN: Lighting Extend: Slow flash |
|
|
1-10 |
RJ-45 ACT indicator (Green) |
Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect |
|
| Working Environment |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
||
| Physical Parameter |
Product Dimension (L*W*H): 270mm*180mm*45mm Package Dimension (L*W*H): 312mm*262mm*84mm N.W: 1.1KG G.W: 1.5KG |
||
| Package Contents |
1.Ethernet Switch:1 unit 2.User Guide:1 unit 3.Warranty Card:1 unit 4.Power Cord:1unit 5. Power Adapter: 1 units 6.Wall Mount: 1 pair |
||
| MTBF | 100,000 hours | ||
| Certification | CE ,RoHS, FCC, CCC | ||
| Warranty | 2 years | ||
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.
Advantage of our company :
1 National High-tech enterprise certification;
2 Fiber Optical Innovative &production team Over 10 years;
3 Fiber optical active and passive components production Workshop;
4 Strict quality management system;
5 Professional One stop supply & service;
6 OEM&ODM available;
7 Reliable and Timely customer services;
1. Who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Switch,GPON ONU,EPON ONU
4. How many days can shipment after ordered?
