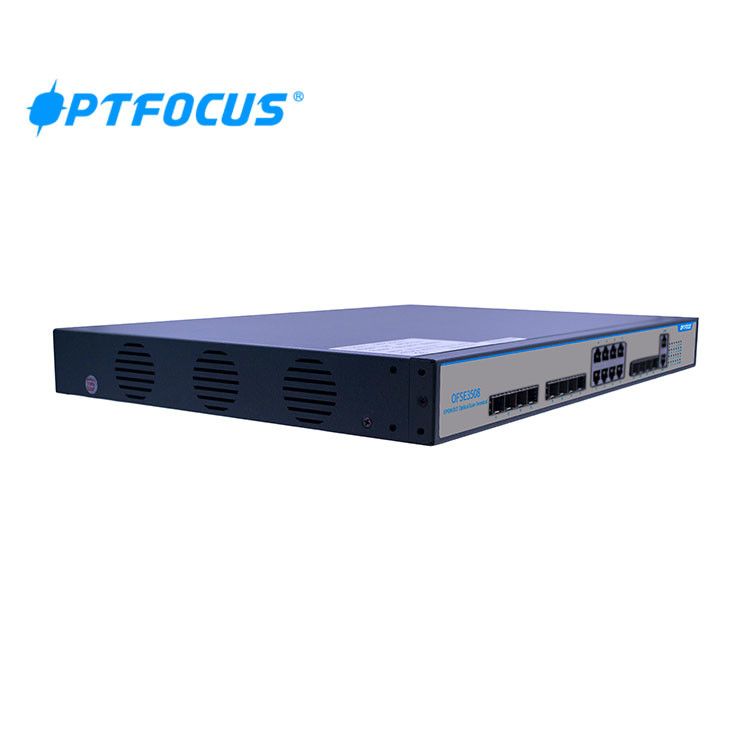

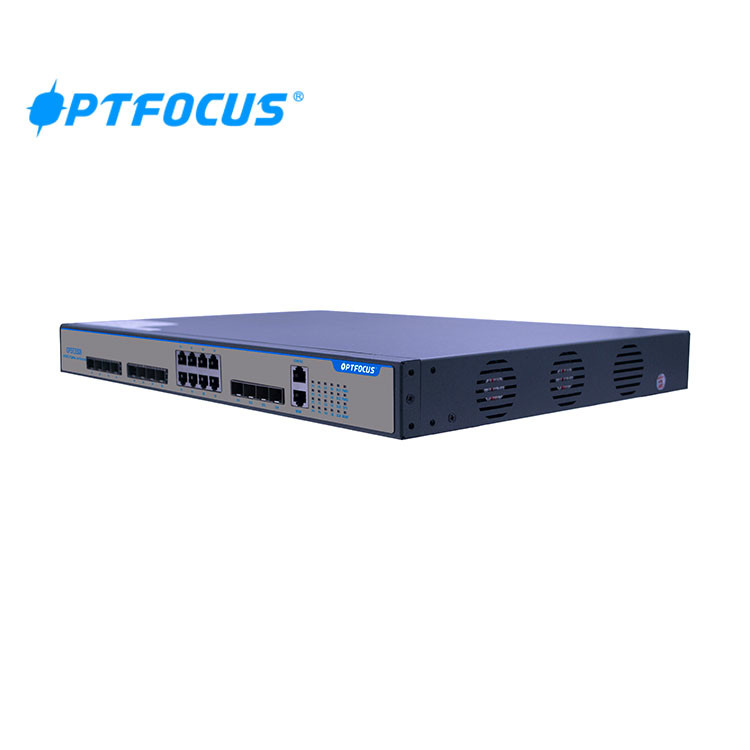

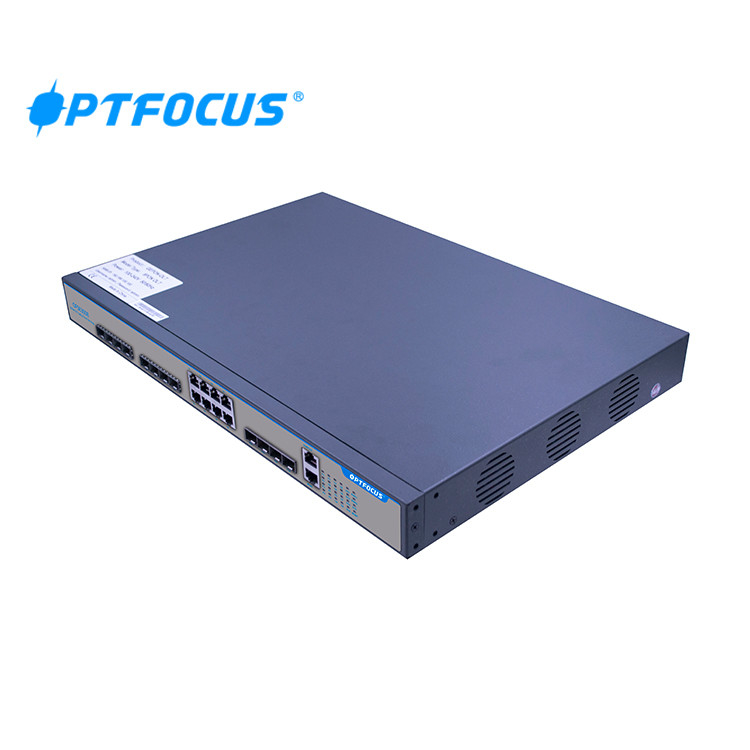

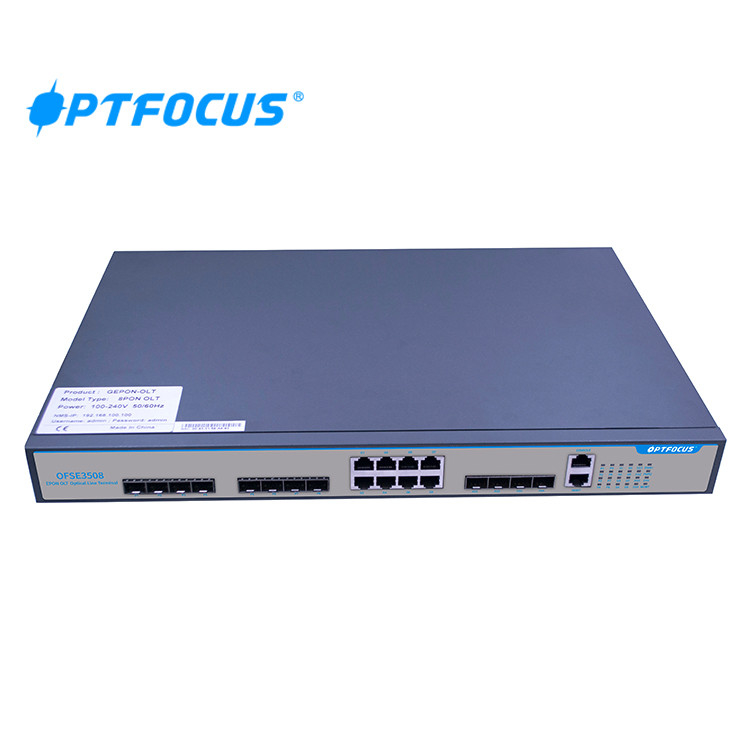

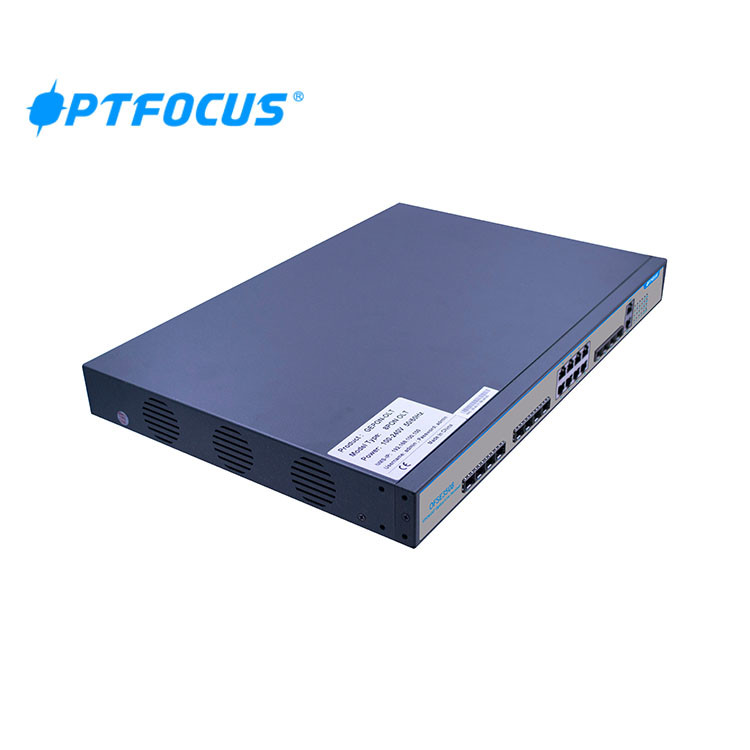

FTTH GPON EPON OLT High Integration Medium Capacity Cassette For Campus Network

Basic Information
Place of Origin: China
Brand Name: Optfocus
Certification: CE ROSE
Model Number: OFSE3506
Minimum Order Quantity: 1 pcs
Price: 900USD per pieces
Packaging Details: 4 pcs per carton box
Delivery Time: 5-14 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs
USE: FTTH Pon Port: 8
Date Rate: 1000% Keywords: OLT
Warranty: 18 Month
High Light:

FTTH GPON EPON OLT

,

Campus Network GPON EPON OLT

Huawei compatible 8 16 PON Ports GPON/EPON FTTH OLT Whole Sales PriceFTTH GPON EPON OLT High Integration Medium Capacity Cassette For Campus Network 0

OFSE3508 Smart Cassette EPON OLT



8*EPON+8GE RJ45+4*10GE SFP(optional 4 port GE uplink SFP)

Product Description

OFSE3508 is a high integration and medium capacity cassette EPON OLT

designed for operators’ access and enterprise campus network. It follows

the IEEE802.3 ah technical standards and meets the EPON OLT equipment

requirements of YD/T 1945-2006 Technical requirements for access

network——based on Ethernet Passive Optical Network (EPON) and

China telecom EPON technical requirements 3.0. OFSE3508 possesses

excellent openness, large capacity, high reliability, complete software

function, efficient bandwidth utilization and Ethernet business support

ability, widely applied to the operator front-end network coverage,

private network construction, enterprise campus access and

other access network construction.



Product Features:

l Support Dynamic Bandwidth Allocation (DBA),the bandwidth

granularity 64Kbps;

l Support ONU auto-MAC binding and filtering, support the ONU

offline business configuration and automatically configure;

l Support 4096 VLAN additions, transparent transmission and

conversion, support VLAN stacking (QinQ);

l Support 32K MAC’s line speed learning and aging,

support MAC address restriction;

l Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning

l Support IGMP v1/v2 Snooping and Proxy,  CTC controllable multicast;

l Support priority queue scheduling, SP, WRR or SP + WRR algorithm;

l Supports port speed, support packet filtering;

l Support port mirroring and port trunking;

l Provide logs, alarms and performance statistics;

l Support WEB Management;

l Support SNMP v1/v2c network.



Product Specification:

Hardware Features
Business Interface

Supply 8 PON Port



4SFP 10GE slots for Uplink
10/100/1000M auto-negotiable,RJ45:8pcs for Uplink
Management Ports Provide 10/100Base-T RJ45 out-band network management port

It can manage the in-band network through any GE uplink port

Provide local configuration port



Provide 1 CONSOLE port
Data exchange 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching
LED Light RUN,PW instructions system running,power working status
PON1 to PON8 instructions 8 pcs PON port LINK and Active status
GE1 to GE8 instructions 8 pcs GE uplink’s LINK and Active status
XGE1 to XGE4 instructions 4 pcs 10GE uplink’s Link and Active status
Power Supply 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V
Power Consumption 50W
Weight 4.6 Kg
Working Temperature 0~55
Dimension 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
EPON Function
EPON Standard Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 ,2.1 and 3.0 standard

Dynamic bandwidth allocation

(DBA)

Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;



Company Profile

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which

is a National High-tech Enterprise integrating with R&D, manufacturing,

marketing and service to our worldwide partners and customers.



We also committed to provide Customized OEM & ODM

services to Global communication distributors, Telecom Operators

and System Integrator. OPTFOCUS manufacturing center covering

area around 2,500 M². Our high quality products and outstanding

service will help you win more market and customers. Join us to

make Win-Win business,looking forward having cooperation with
