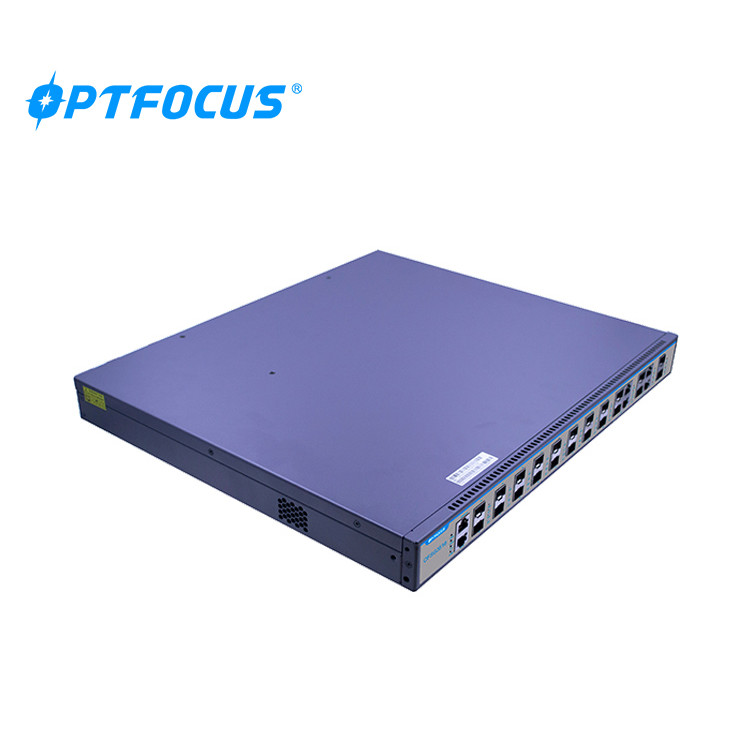

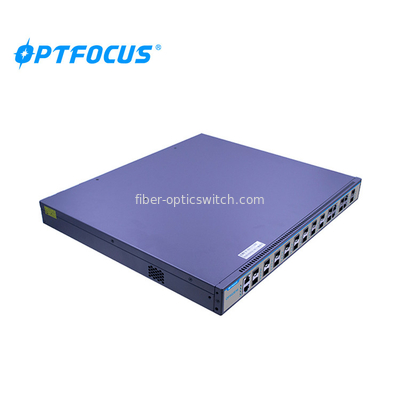

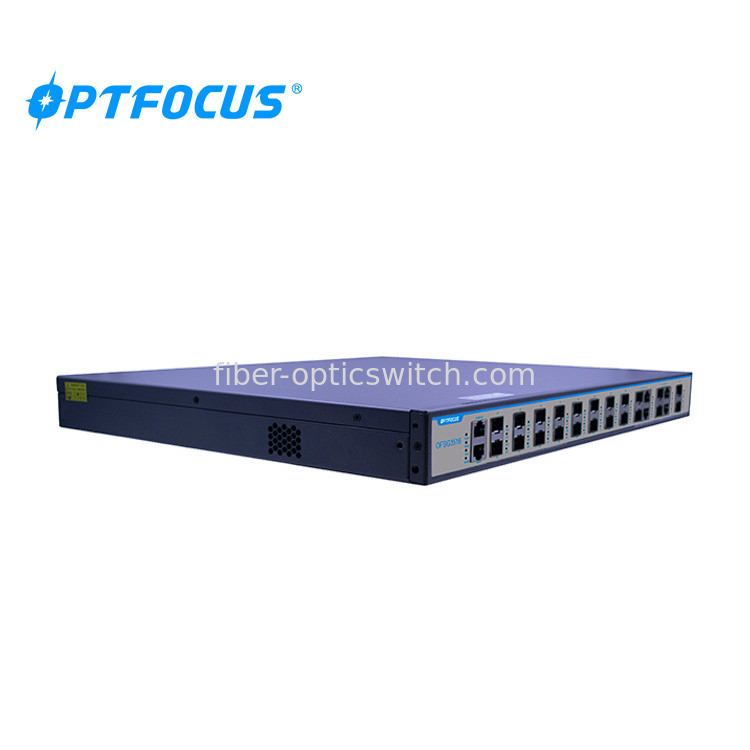

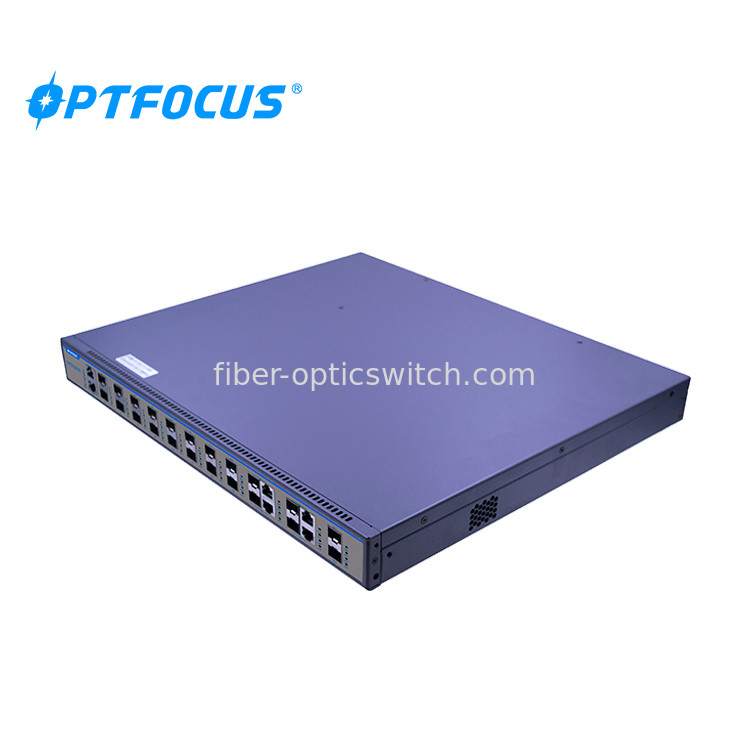

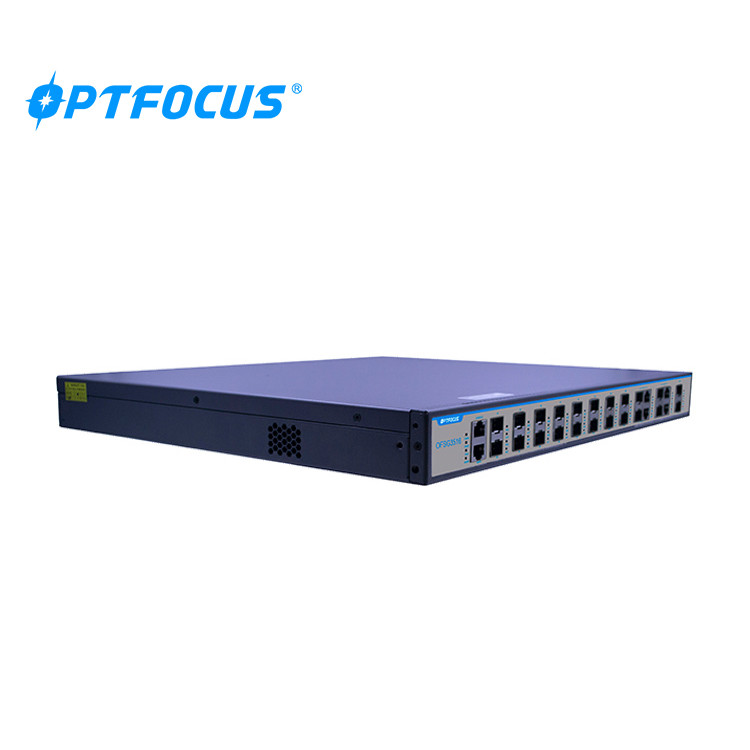

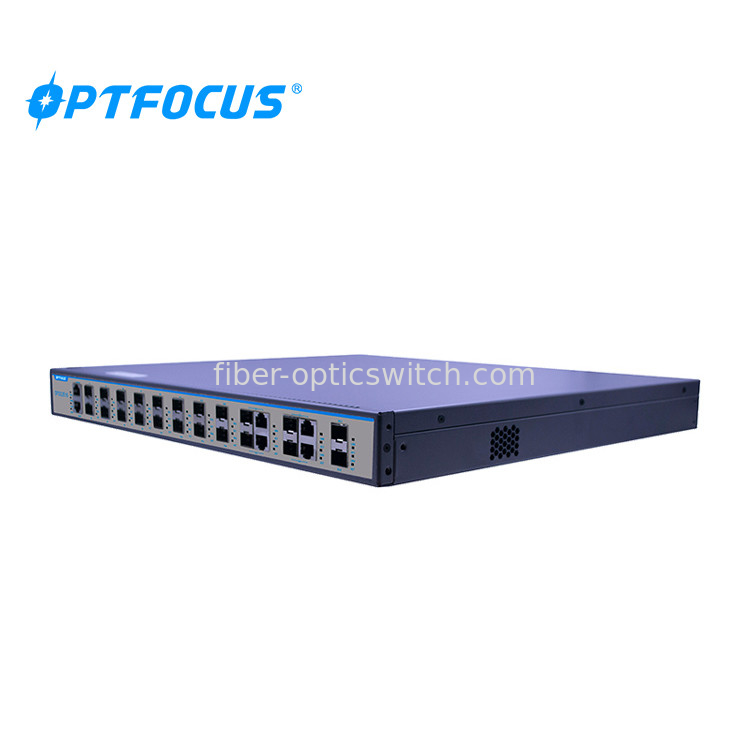

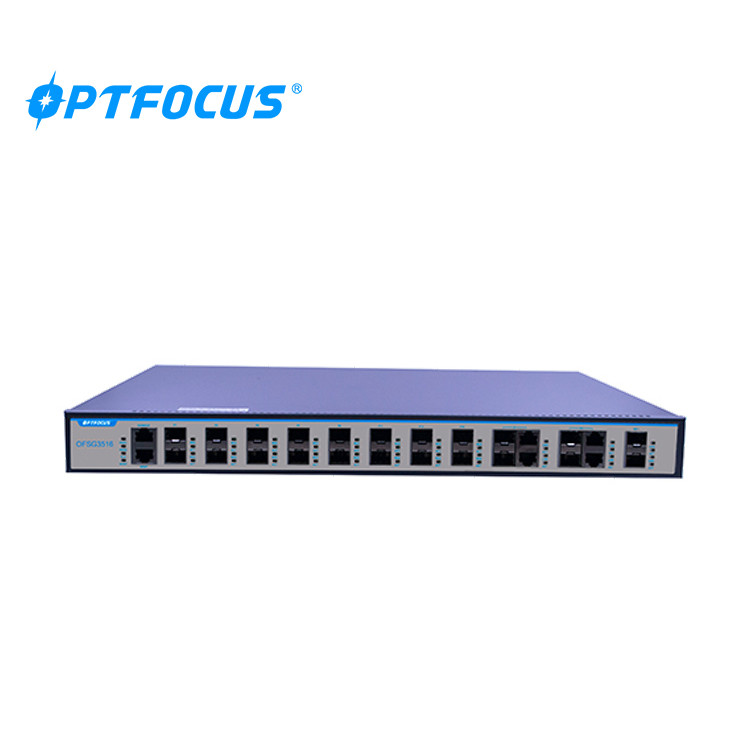

OEM Olt Gpon 16 Port Compatible With HUAWEI ZTE ONU 16 GPON 4GE COMBO Port 2 10GE SFP

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSG3516
Minimum Order Quantity: 1
Price: USD2032 per Unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Product Name: Gpon Olt Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFSG3516
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS
High Light:

OEM Olt Gpon 16 Port

,

4GE COMBO Olt Gpon 16 Port

,

Customized 16 port gpon olt

Factory OEM/ODM Olt Gpon 16 Ports Compatible with HUAWEI/ZTE ONU 16*GPON+4GE COMBO port +2*10GE SFP

Product Overview

OFSG3516 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. GPON OLT 16PON can be used with NGBNVIEW network management system so as to provide users with the comprehensive access and perfect solution.

GPON OLT 16PON provides 16 * downlink GPON port, 4 *GE combo port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. GPON OLT 16PON is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.





Item OFSG3516
Switching Capacity 140Gbps
Forwarding Capacity(Ipv4/Ipv6) 104MPPS
Service Port 16*PON port, 4*GE COMBO port, 2*10GE SFP+ port
Redundancy Design

Dual power supply

Support AC input, double DC input and AC+DC input

Power Supply

AC: input 90~264V 47/63Hz;

DC: input -36V~-72V;

Power Consumption ≤110W
Dimensions (Width x Depth x Height) 440mm×44mm×380mm
Weight (Full-Loaded) ≤5kg
Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing





Product Features:

Item GPON OLT 16PON

PON Features





ITU-TG.984.x standard

Maximum 20 Km PON transmission distance

access 128 terminals for single fiber PON

Uplink and downlink triple churning encrypted function with 128Bits

ONU terminal legitimacy certification, report illegal ONU registration

DBA algorithm, the particle is 1Kbit/s

Standard OMCI management function

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON port optical power detection

L2 Features MAC

MAC Black Hole

Port MAC Limit

64K MAC (packet exchange chip cache 2MB, external cache 720 MB )

VLAN

4K VLAN entries

Port-based/MAC-based/protocol/IP subnet-based

QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark

PVLAN to realize port isolation and saving public-vlan resources

GVRP

Spanning Tree

STP/RSTP/MSTP

Remote loop detecting

Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring
