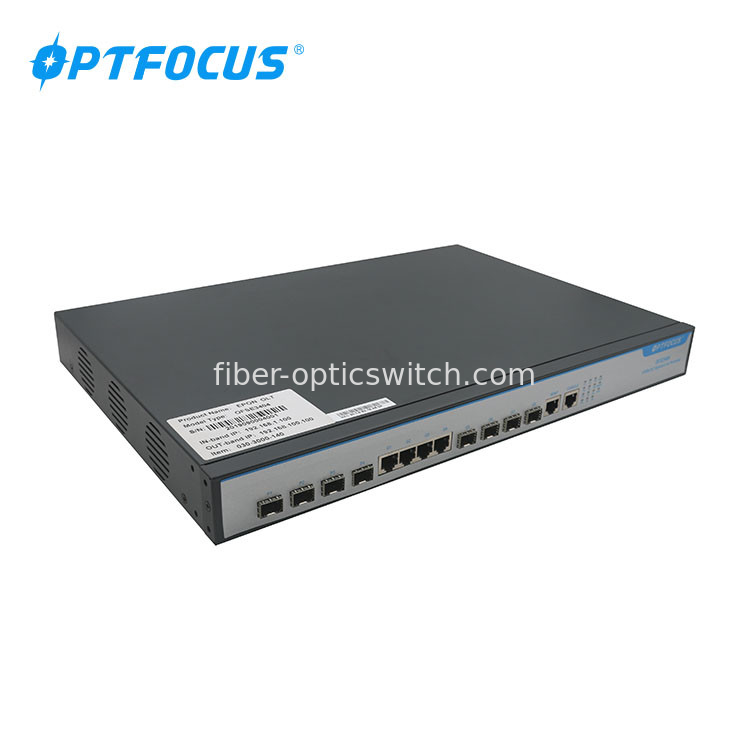

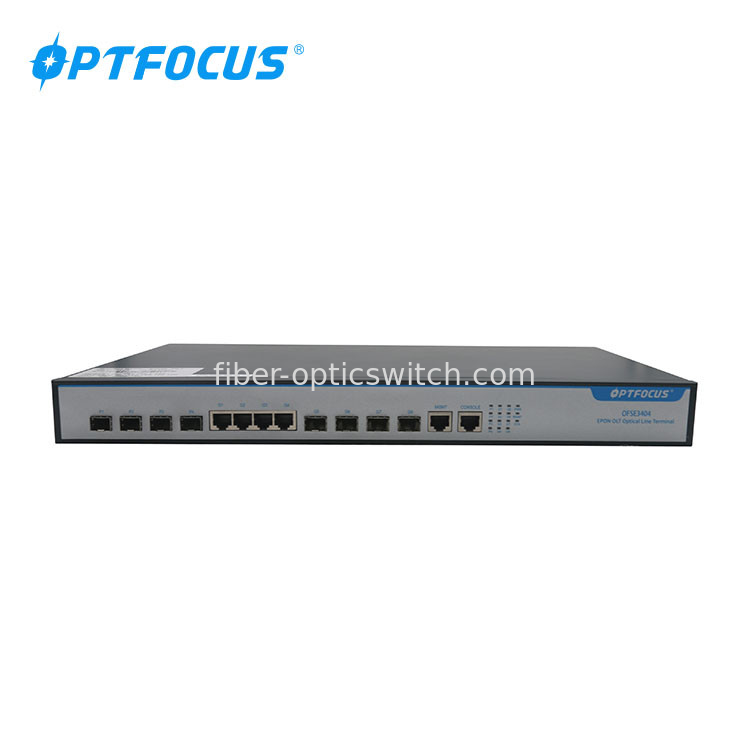

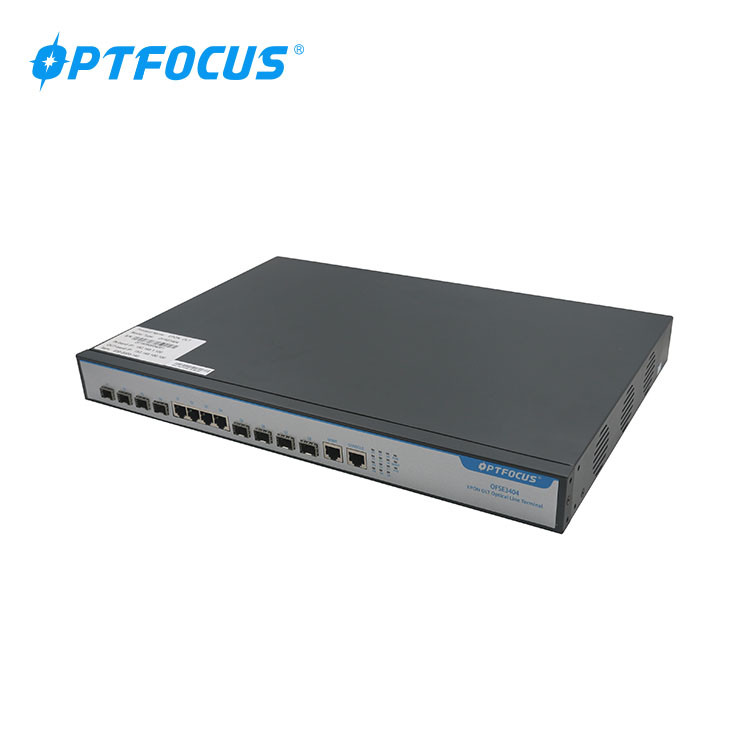

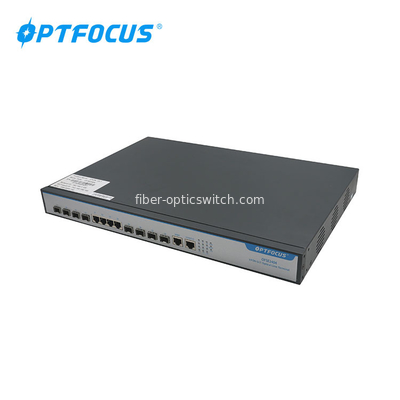

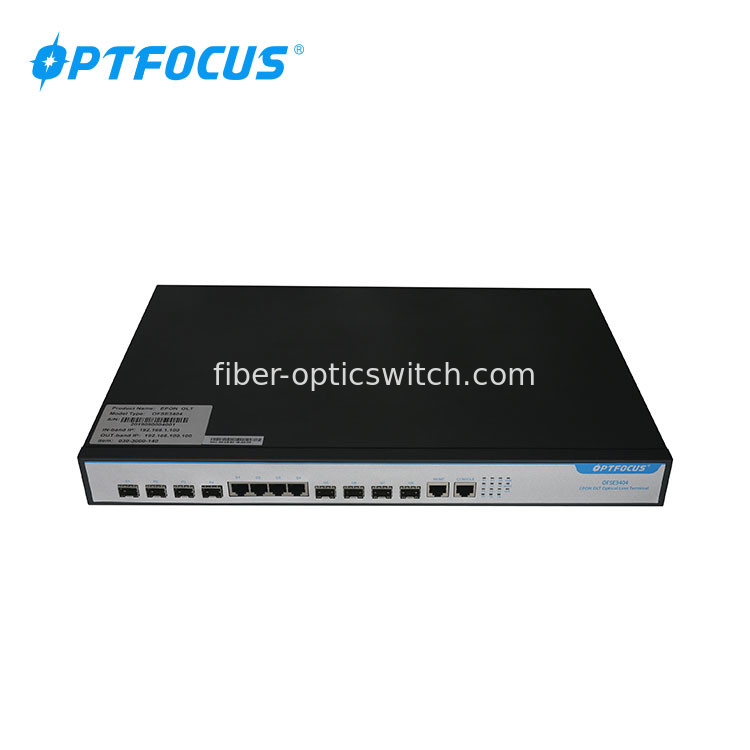

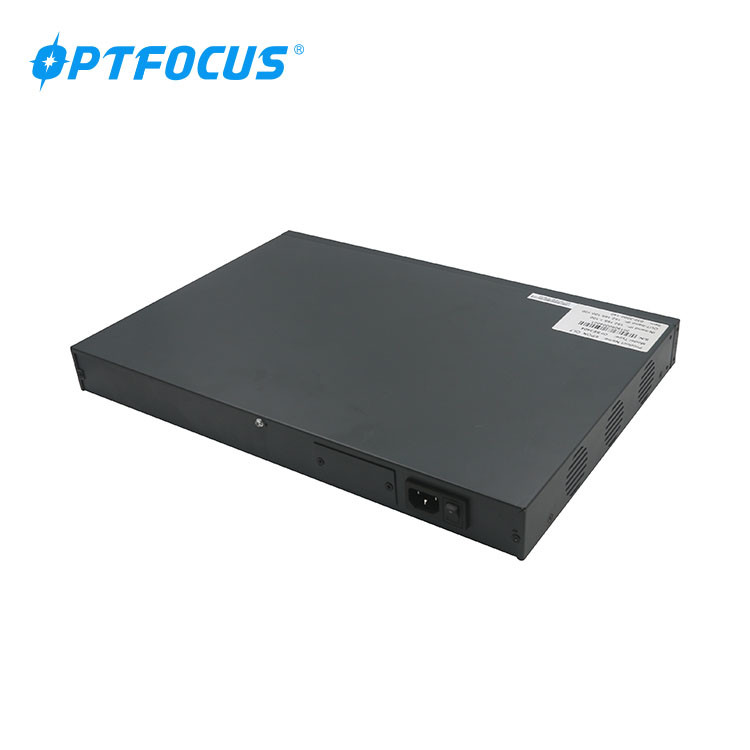

IEEE802.3 Ah 4 Port Epon Olt 4 EPON 4GE RJ45 4GE SFP Ports For Enterprise Campus Network

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSE3504
Minimum Order Quantity: 1
Price: USD1105 per Unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Product Name: Epon Olt Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFSE3504
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS
High Light:

Enterprise Network 4 Port Epon Olt

,

Campus Network 4 Port Epon Olt

,

IEEE802.3 Ah olt epon 4 port

Factory OEM/ODM Olt Epon 4 Port Compatible with HUAWEI/ZTE ONU 4*EPON+4GE RJ45+4GE SFP

Product Description



    OFSE3404 is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. OFSE3404 possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.



.l Supply 4 PON Port

.l Supply 4 pcs RJ45 Uplink Port

.l Supply 4 SFP slots

.l Supporting 256 ONUs under 1:64 splitter ratio.

.l Supporting various types of management mode, such as out-band, in-band, CLI ,WEB and EMS based on development interface.

.l Typical Power 50W







Hardware Features
Business Interface

Supply 4 PON Port



  4SFP slots for Uplink
  10/100/1000M auto-negotiable,RJ45:4pcs for Uplink
Management Ports Provide 10/100Base-T RJ45 out-band network management port


It can manage the in-band network through any GE uplink port

Provide local configuration port



  Provide 1 CONSOLE port
Data exchange 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching
LED Light RUN,PW instructions system running,power working status
  PON1 to PON4 instructions 4 pcs PON port LINK and Active status
  GE1 to GE8 instructions 8 pcs GE uplink’s LINK and Active status
Power Supply 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V
  Power Consumption 50W
Weight 4.6 Kg
Working Temperature 0~55℃
Dimension 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
EPON Function
EPON Standard Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 ,2.1 and 3.0 standard

Dynamic bandwidth allocation

(DBA)

Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;
  Bandwidth granularity 64Kbps
Security Features Support PON line AES and triple churing encryption;
  Support ONU MAC address binding and filtering;
VLAN Support 4095 VLAN additions, transparent transmission, conversion and deletion;
  Support 4096 VLAN additions, transparent transmission, conversion and deletion;
  Support VLAN Stacking (QinQ)
MAC address learning Support 32K MAC addresses;
  Hardware-based wire-speed MAC address learning;
  Based on port, VLAN, link aggregation MAC restrictions;
Spanning Tree Protocol Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Multicast Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;
  Support IGMP v1/v2 and v3
NTP protocol Support NTP protocol
Quality of Service(QoS) Support 802.1p priority queue scheduling;
  Support SP, WRR or SP + WRR scheduling algorithm;
