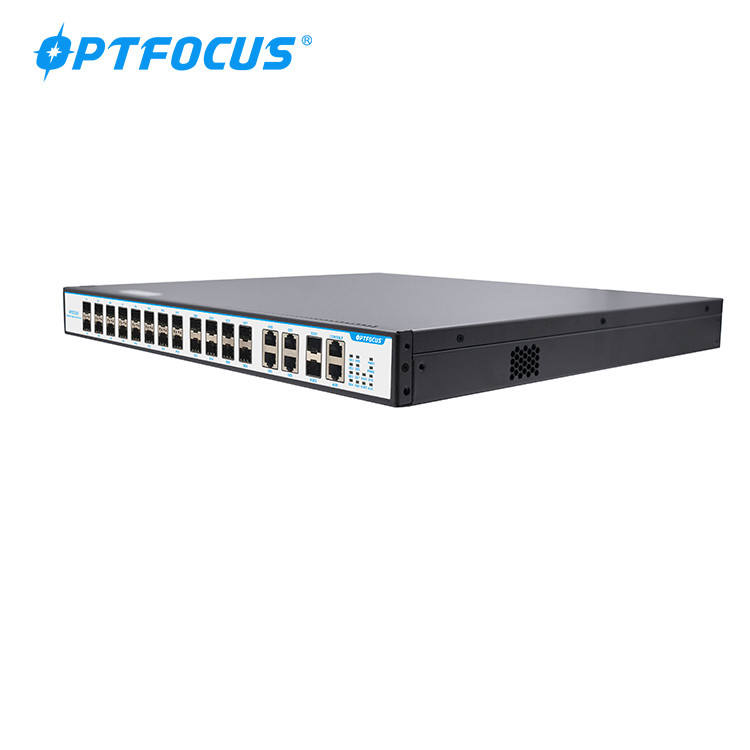

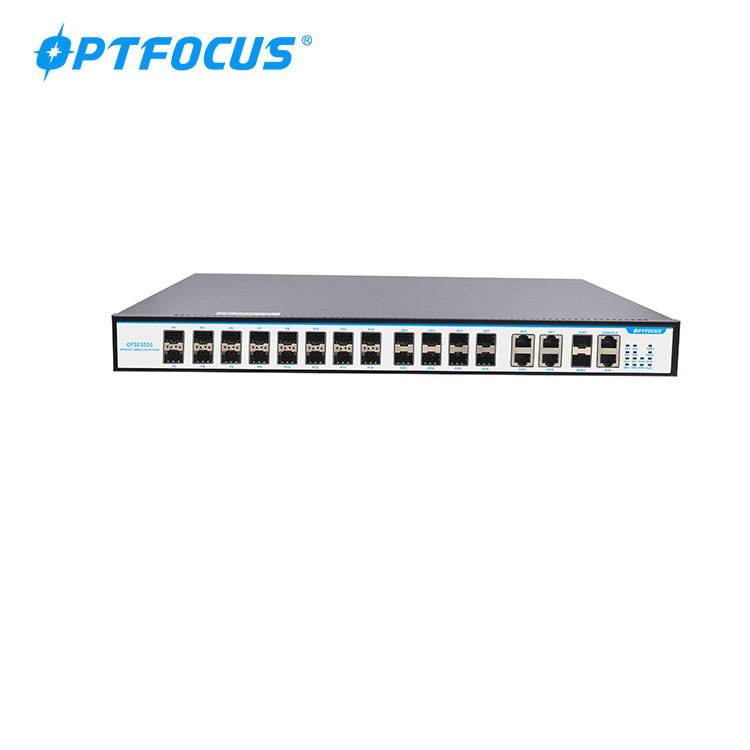

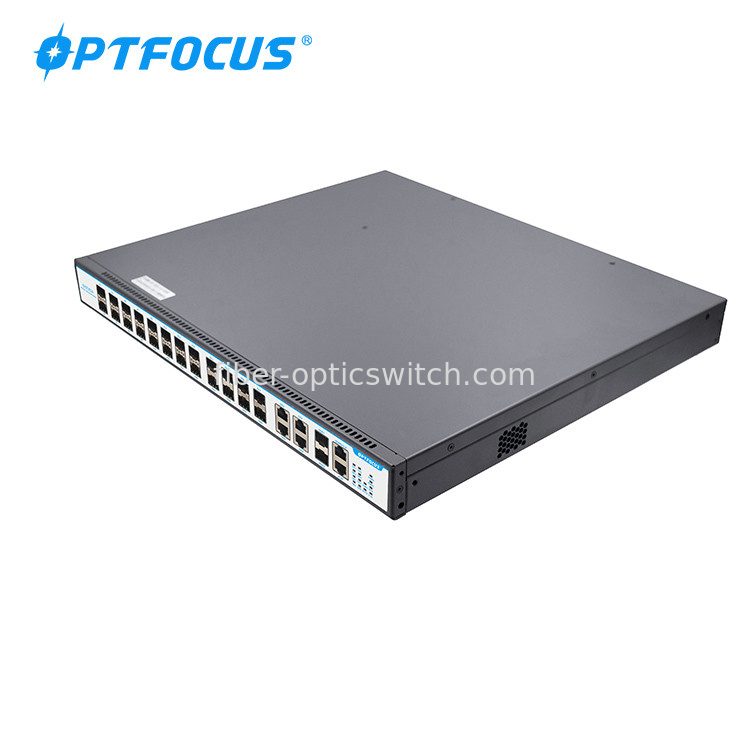

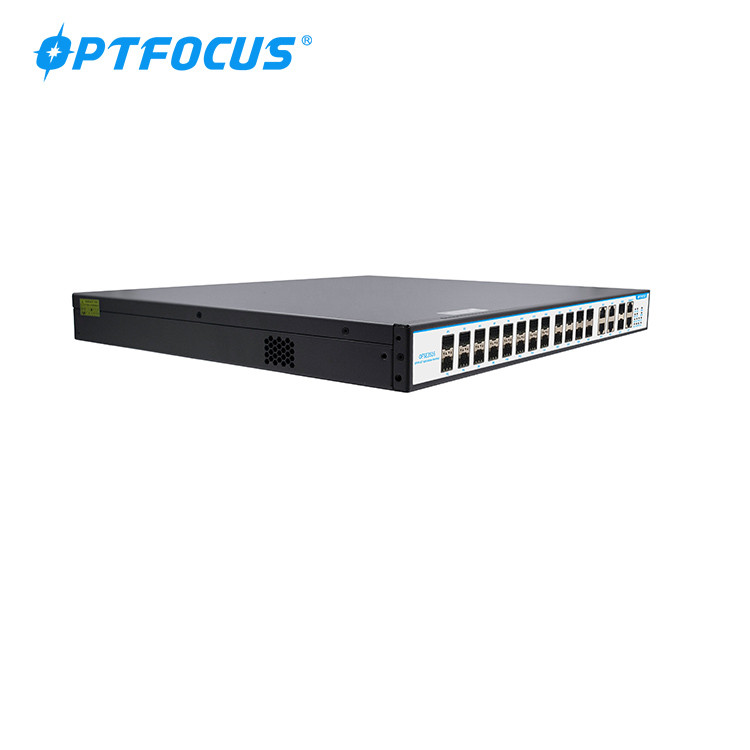

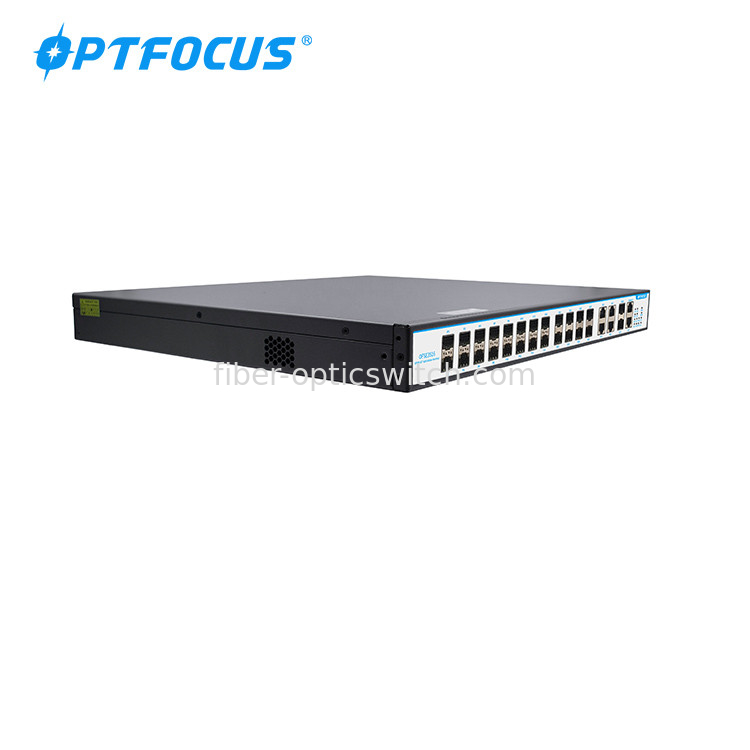

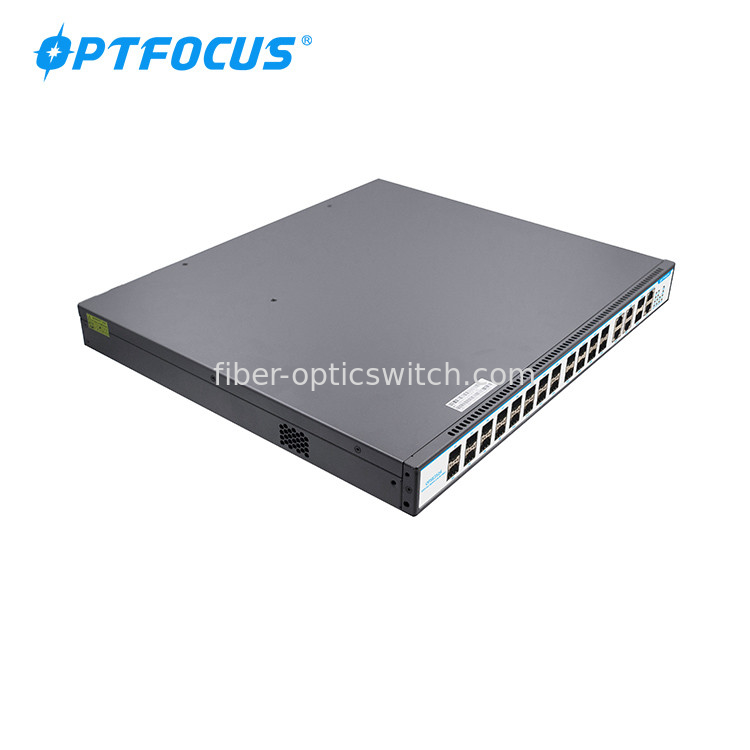

20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSE3516
Minimum Order Quantity: 1
Price: USD1105 per Unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Product Name: Epon Olt Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFSE3516
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS
High Light:

medium capacity 16 Port Epon Olt

,

high integration 16 Port Epon Olt

,

20km epon olt 16 port

Factory OEM/ODM Olt Epon 16 Port Compatible with HUAWEI/ZTE ONU 16*EPON, 4*GE SFP, 4*GE COMBO port, 2*10GE SFP

Product Description

    OFSE3516 is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. OFSE3516 possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.

    OFSE3516 provides 16 * downlink 1000M EPON ports, 8 * GE Ethernet ports and 2 * 10G uplink ports. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.







Item
  1.
Switching Capacity 128Gbps
Forwarding Capacity(Ipv4/Ipv6) 95.23Mpps
Service Port 16*PON, 4*GE SFP, 4*GE COMBO port, 2*10GE/GE SFP
Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC
Power Supply

AC: input100~240V 47/63Hz

DC: input36V~75V

Power Consumption ≤85W
Dimensions (Width x Depth x Height) 442mm×44mm×380mm
Weight (Full-Loaded) ≤3kg
Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing







Item
  1.

PON Features



IEEE 802.3ah EPON

China Telecom/Unicom EPON

Maximum 20 Km PON transmission distance

Each PON port supports the max. 1:64 splitting ratio

Uplink and downlink triple churning encrypted function with 128Bits

Standard OAM and extended OAM

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON transmit and inspect receiving optical power

PON port optical power detection

L2 Features MAC

MAC Black Hole

Port MAC Limit

16K MAC address

VLAN

4K VLAN entries

Port-based/MAC-based/protocol/IP subnet-based

QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark

PVLAN to realize port isolation and saving public-vlan resources

GVRP

Spanning Tree

STP/RSTP/MSTP

Remote loop detecting

Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring

Security

Features

User’s Security

Anti-ARP-spoofing

Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network Security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5

cryptograph authentication
