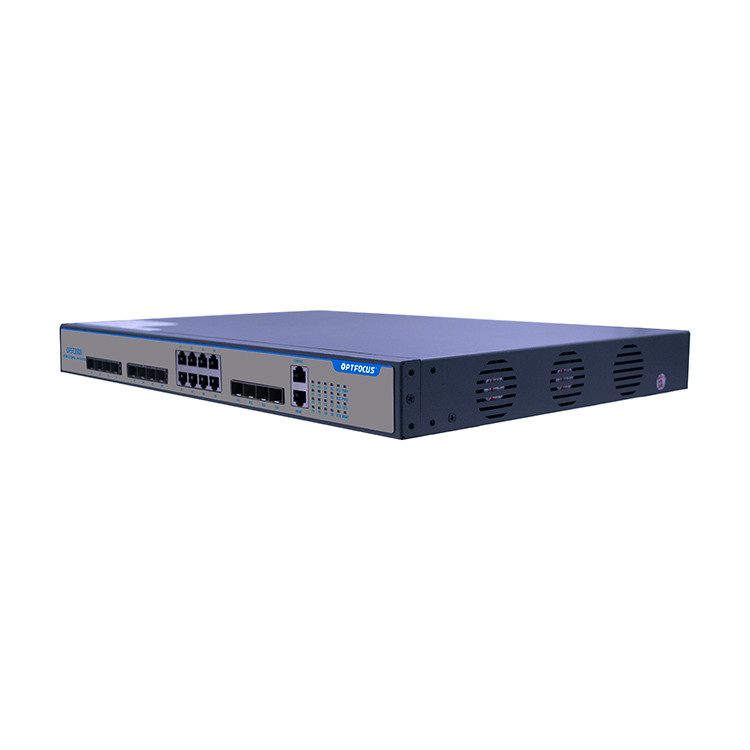

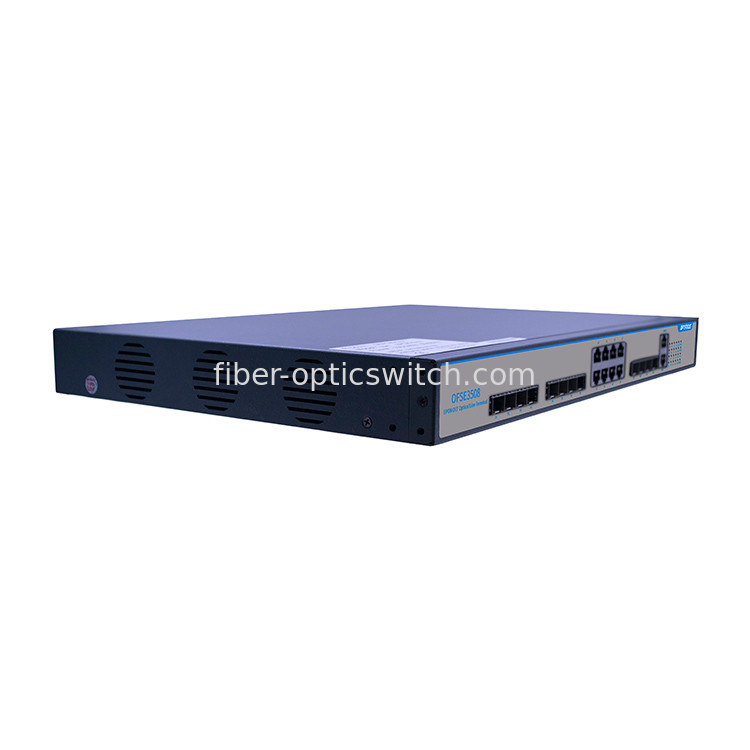

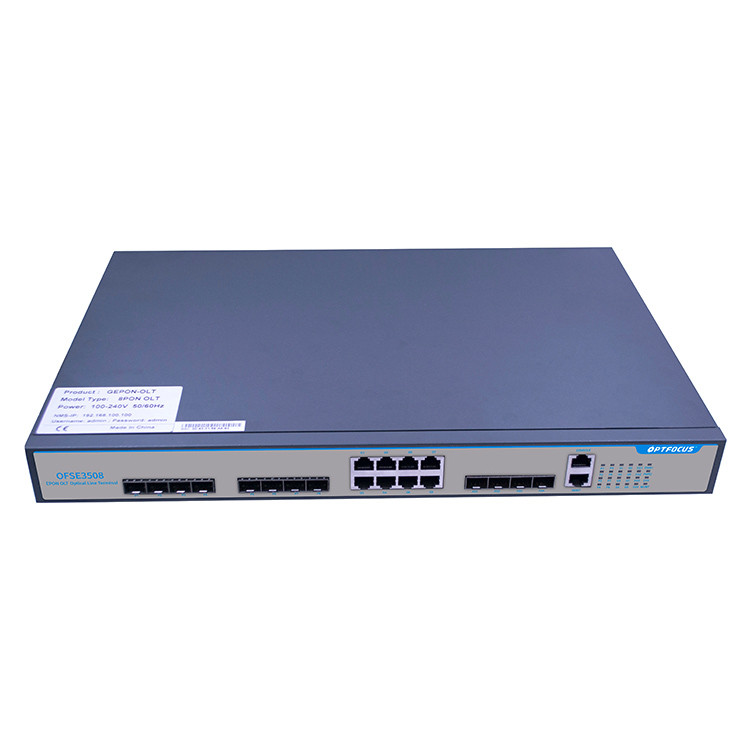

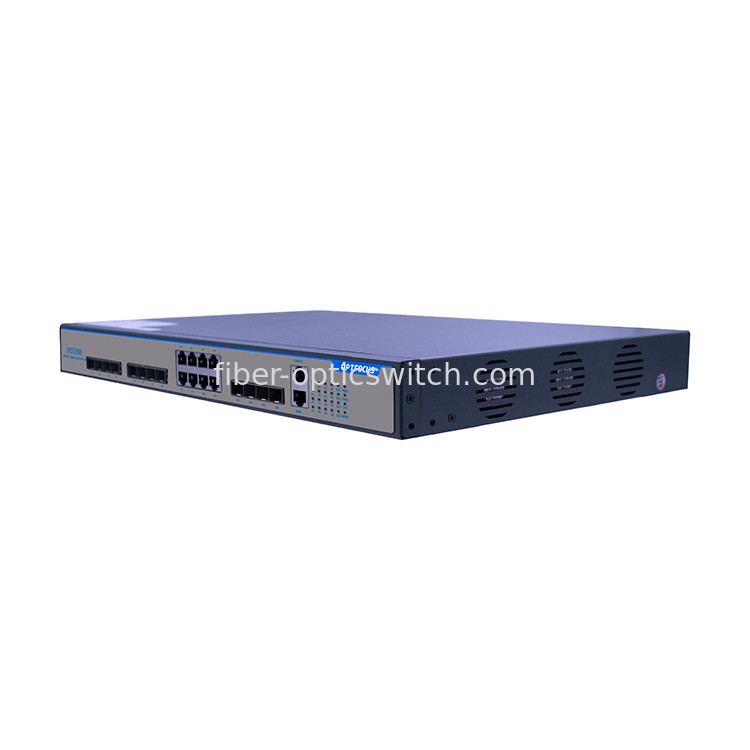

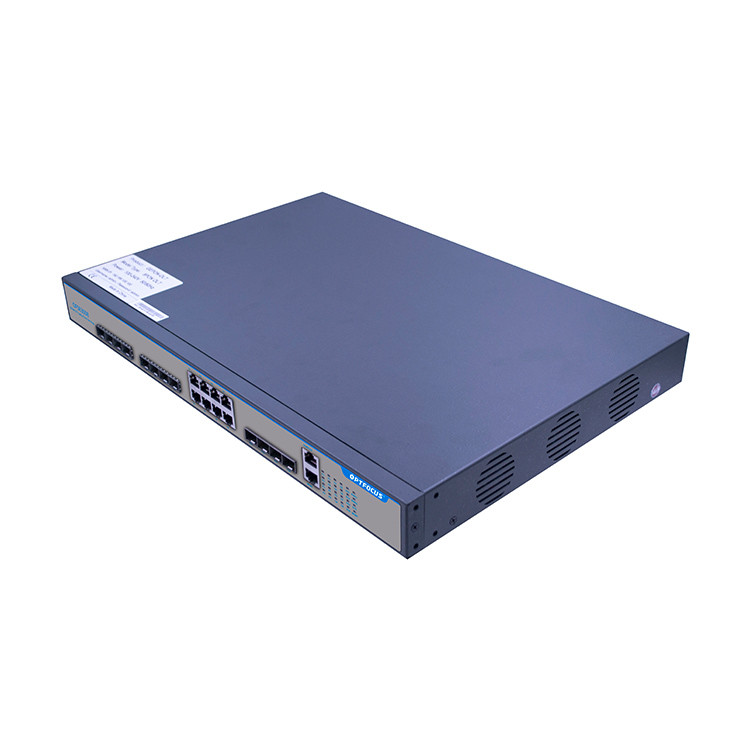

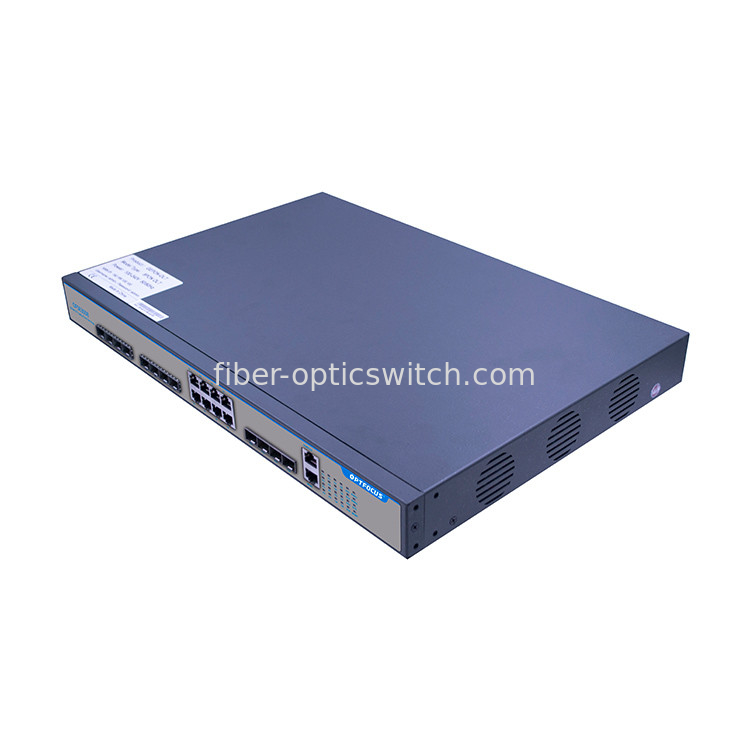

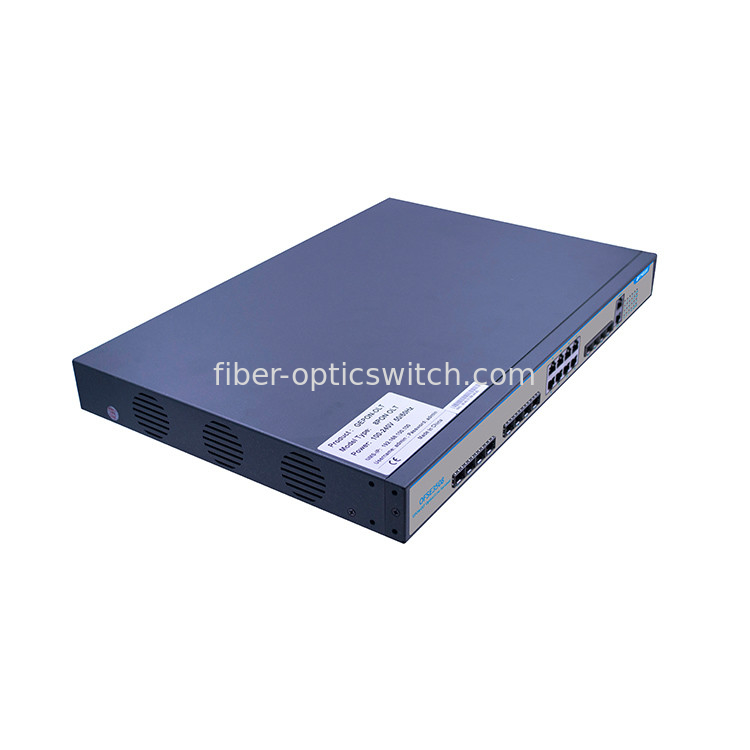

50W Epon 8 Port Olt Compatible With HUAWEI / ZTE ONU 8 EPON 8GE RJ45 4 10GE SFP Ports

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSE3508
Minimum Order Quantity: 1
Price: USD565 per Unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Product Name: Epon Olt Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFSE3508
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS
High Light:

50W Epon 8 Port Olt

,

NTP protocol Epon 8 Port Olt

,

Customized 8 pon epon olt

Factory OEM/ODM Epon 8 Port Olt Compatible with HUAWEI/ZTE ONU 8*EPON+8GE RJ45+4*10GE SFP

OFSE3508 is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. OFSE3508 possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.



.Supply 8 PON Port

.Supply 8 pcs RJ45 Uplink Port

.Supply 4 10GE SFP slots

.Supporting 512 ONUs under 1:64 splitter ratio.

.Supporting various types of management mode, such as out-band, in-band, CLI ,WEB and EMS based on development interface.

.Typical Power 50W



Hardware Features
Business Interface

Supply 8 PON Port



  4SFP 10GE slots for Uplink
  10/100/1000M auto-negotiable,RJ45:8pcs for Uplink
Management Ports Provide 10/100Base-T RJ45 out-band network management port


It can manage the in-band network through any GE uplink port

Provide local configuration port



  Provide 1 CONSOLE port
Data exchange 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching
LED Light RUN,PW instructions system running,power working status
  PON1 to PON8 instructions 8 pcs PON port LINK and Active status
  GE1 to GE8 instructions 8 pcs GE uplink’s LINK and Active status
  XGE1 to XGE4 instructions 4 pcs 10GE uplink’s Link and Active status
Power Supply 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V
  Power Consumption 50W
Weight 4.6 Kg
Working Temperature 0~55℃
Dimension 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
EPON Function
EPON Standard Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 ,2.1 and 3.0 standard

Dynamic bandwidth allocation

(DBA)

Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;
  Bandwidth granularity 64Kbps
Security Features Support PON line AES and triple churing encryption;
  Support ONU MAC address binding and filtering;
VLAN Support 4095 VLAN additions, transparent transmission, conversion and deletion;
  Support 4096 VLAN additions, transparent transmission, conversion and deletion;
  Support VLAN Stacking (QinQ)
MAC address learning Support 32K MAC addresses;
  Hardware-based wire-speed MAC address learning;
  Based on port, VLAN, link aggregation MAC restrictions;
Spanning Tree Protocol Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Multicast Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;
  Support IGMP v1/v2 and v3
NTP protocol Support NTP protocol
Quality of Service(QoS) Support 802.1p priority queue scheduling;
  Support SP, WRR or SP + WRR scheduling algorithm;

50W Epon 8 Port Olt Compatible With HUAWEI / ZTE ONU 8 EPON 8GE RJ45 4 10GE SFP Ports 0

Packaging & Shipping

 23



Company Information



Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.



Advantage of our company :

1 National High-tech enterprise certification;

2 Fiber Optical Innovative &production team Over 10 years;

3 Fiber optical active and passive components production Workshop;

4 Strict quality management system;

5 Professional One stop supply & service;

6 OEM&ODM available;

7 Reliable and Timely customer services;

company profile

FAQ:

1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.what can you buy from us?
Switch,GPON ONU,EPON ONU



4. How many days can shipment after ordered?

According to the quantity you order, we will reply you the shipment day


5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
