OEM ODM 8 Port Gpon Olt 8 PON Port 4 GE COMBO Port 2 10GE SFP+ Port

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSG3508N
Minimum Order Quantity: 1
Price: USD1080 per Unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Wavelength: T1550/R1310 Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFSG3508N
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS
High Light:

ODM 8 Port Gpon Olt

,

78Gbps 8 Port Gpon Olt

,

double DC input 8 port olt

Factory OEM/ODM 8 Port Gpon Olt 10G Uplink Gpon Olt Gpon Olt 8 Port 8* GPON +4*10G/1GE SFP +4GE RJ45

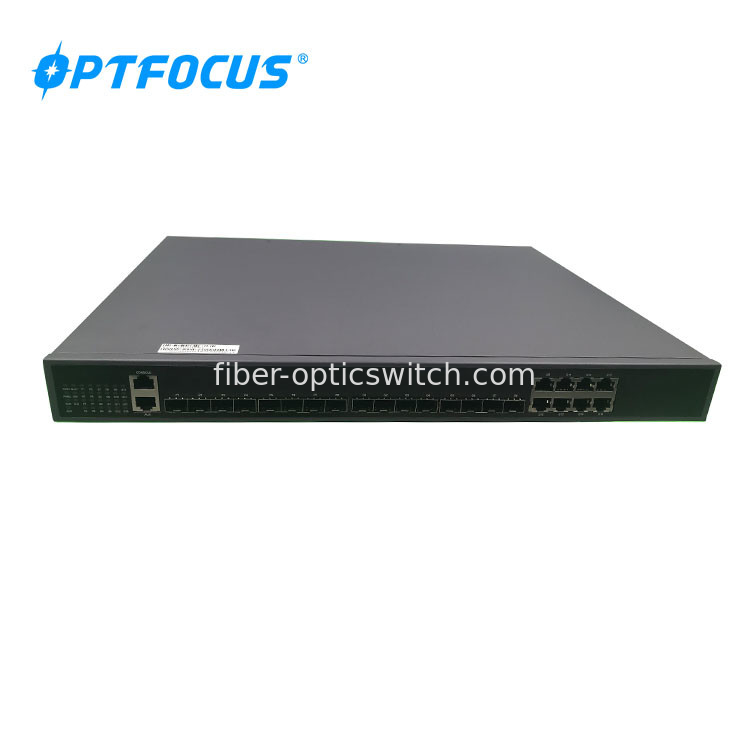

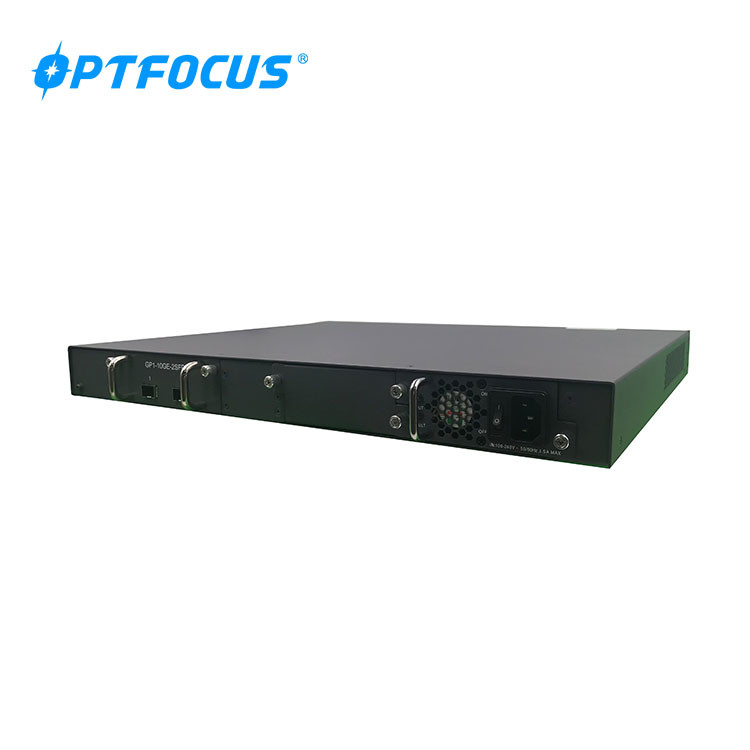

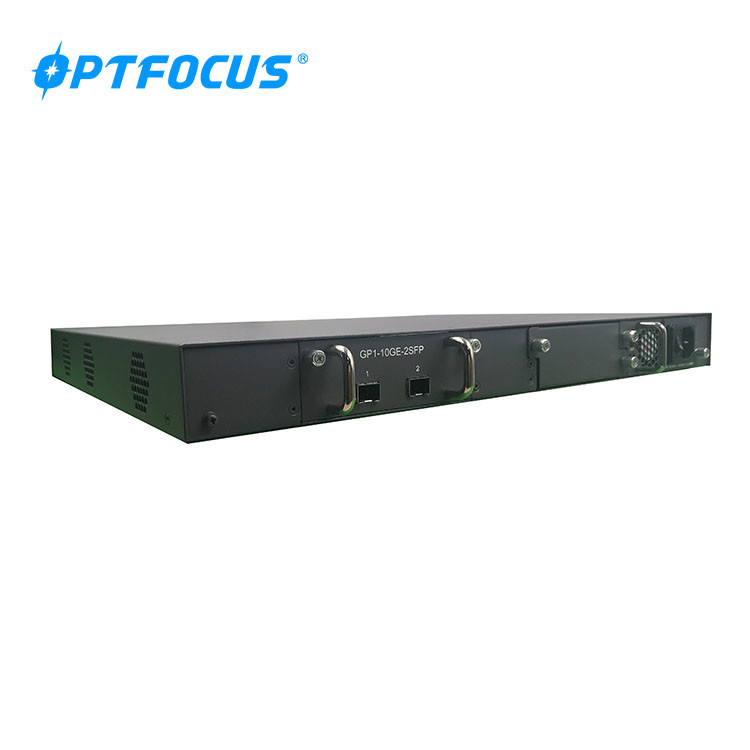

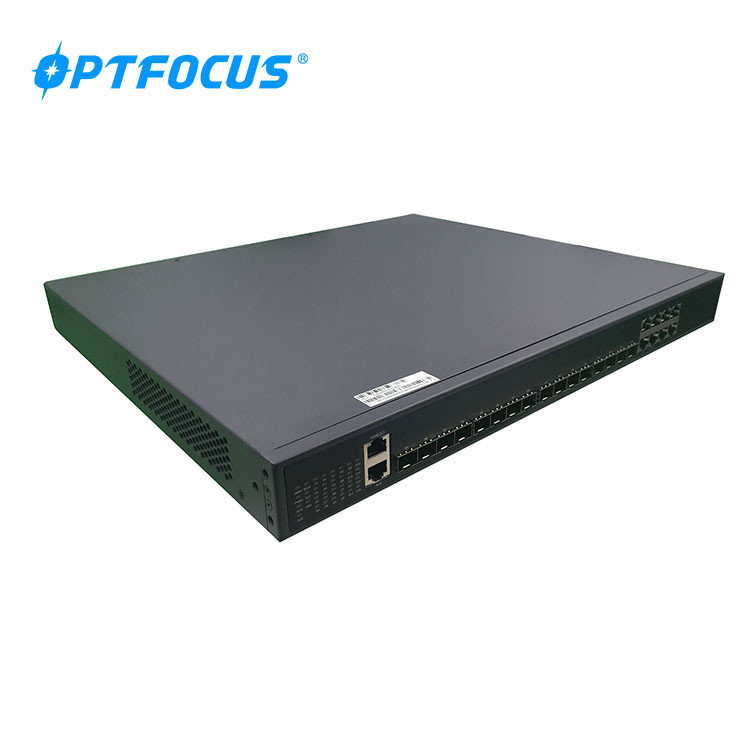

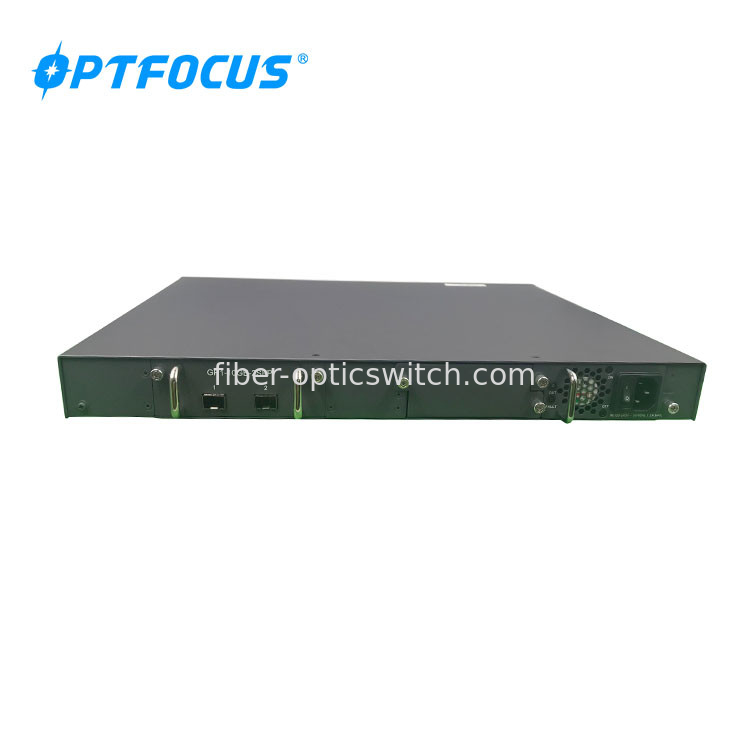

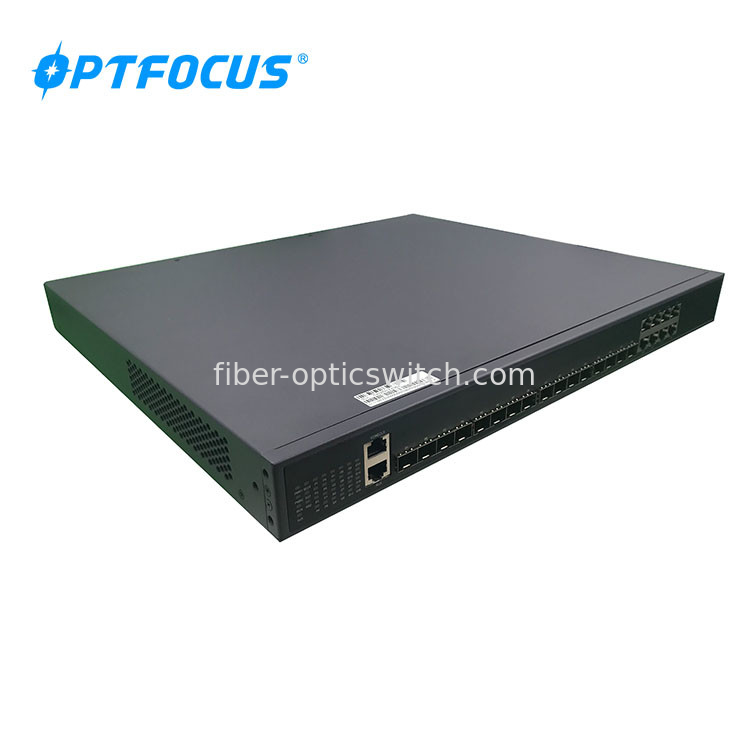

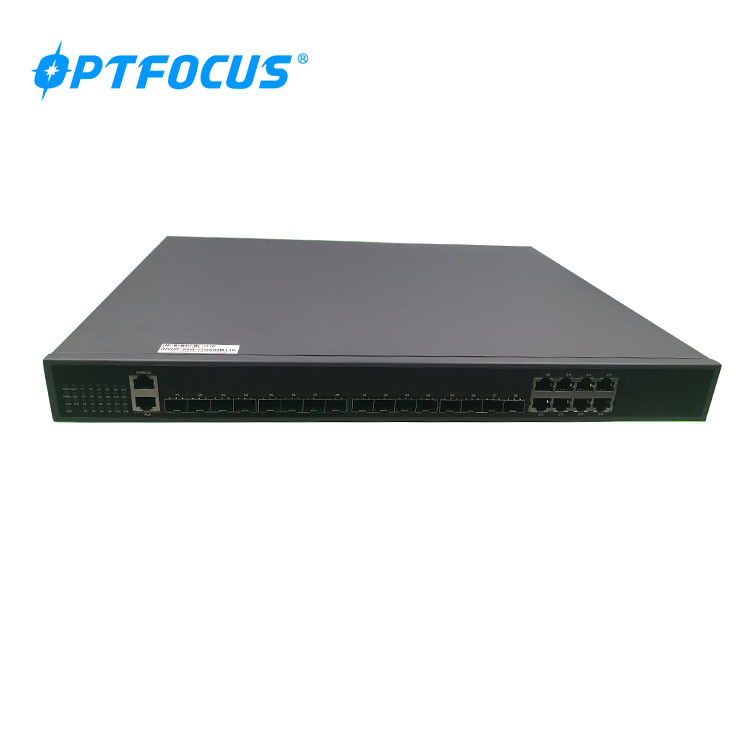

       OFSG3508 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode.OFSG3508 can be used with NGBNVIEW network management system so as to provide users with the comprehensive access and perfect solution.

       OFSG3508 provides 8 * downlink GPON port, 4 *GE combo port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. OFSG3508 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.



Item

OFSG3508

Switching Capacity

78Gbps

Forwarding Capacity(Ipv4/Ipv6)

65.472Mpps

Service Port

8*PON port, 4*GE COMBO port, 2*10GE SFP+ port

Redundancy Design

Dual power supply

Support double AC input, double DC input and AC+DC input

Power Supply

AC: input 90~264V 47/63Hz;

DC: input -36V~-72V;

Power Consumption

50W

Dimensions (Width x Depth x Height)

437mm×44mm×280mm

Weight (Full-Loaded)

5KG

Item

OFSG3508

PON Features



ITU-TG.984.x;

SN/Password/SN+Password/LOID/LOIDPassword/LOID+LOID Passwordauthentication modes;

Terminal access up to 60km on a single fiber;

1:64 split ratio on single PON port, scalable to 1: 128 split ratio;

DBA algorithm, and the particle is for 64Kbit/s;

Standard OMCI management function;

ONU batch software upgrade;

PON port optical parameter detection;

L2 Features

MAC

MAC Black Hole;

Port MAC Limit;

32K MAC (packet exchange chip cache 2MB );



VLAN

4K VLAN entries;

Port-based VLAN classification;

Uplink static QinQ and flexible QinQ(Stack VLAN);

Uplink VLAN Swap and VLAN Remark;

GVRP;



Spanning Tree

STP/RSTP/MSTP;

Remote loop detecting;



Port

Bi-directional bandwidth control;

Support static and LACP dynamic port aggregation;

Port mirroring;

Security

Features

Features

User’s Security

Anti-ARP-spoofing;

Anti-ARP-flooding;

IP Source Guard for creating IP+VLAN+MAC+Port binding;

Port Isolation;

MAC address binding to the port and MAC address filtering;

IEEE 802.1x and AAA/Radius authentication;



Device Security

Support the control layer to prevent a variety of DOS attacks and virus attacks against the CPU;

SSHv2 Secure Shell;

SNMP v3 encrypted management;

Login Security IP via Telnet;

Hierarchical management and password protection of users;



Network Security

User-based MAC and ARP traffic examination;

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic;

Dynamic ARP table-based binding;

IP+VLAN+MAC+Port binding;

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet;

Port-based broadcast/multicast suppression and auto-shutdown risk port;

URPF to prevent IP address counterfeit and attack;

DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5cryptograph authentication;

Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

         Relative humidity: 10%~90%, non-condensing
