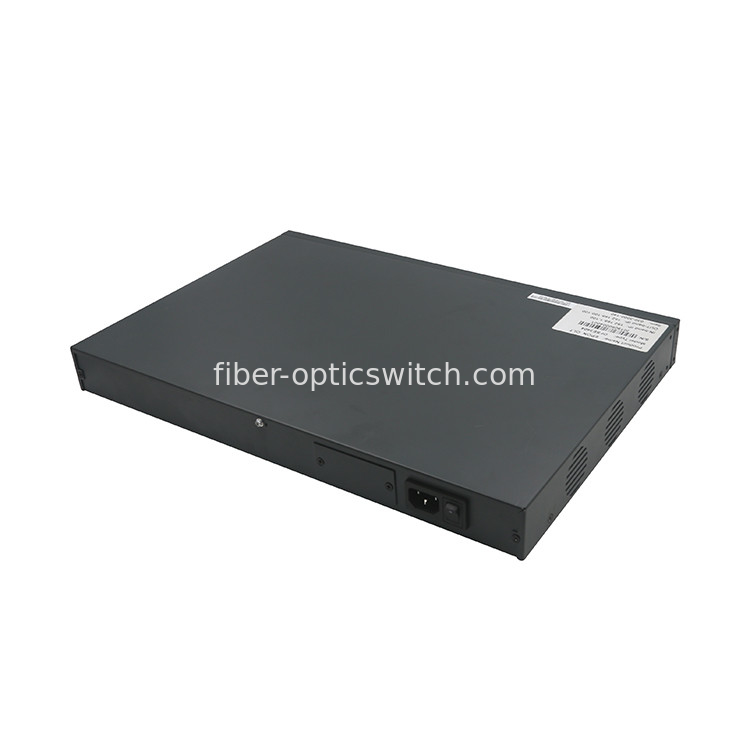

Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution

Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution
Basic Information
Place of Origin: china
Brand Name: OPTFOCUS
Certification: CE,RoHS
Model Number: 4*EPON+4GE RJ45+4GE SFP
Minimum Order Quantity: 1 piece
Price: USD 51.9 1piece
Packaging Details: box and carton
Delivery Time: 6-14 days
Payment Terms: T/T
Supply Ability: 4000 piece a month
Contact Now
Key Word: 4 Pon Port Olt Type: Enterprise Switch
Forwarding Mode: Store-and-Forward Power Supply: Input: AC100 ~ 250V, Output:DC5V 2A.
Certification: CCC,CE Use: FIBER OPTIC NETWORK
Place Of Origin: China Keywords: 4 Ports Epon Olt
Warranty: 1 Year Pon Port: 4*GPON Port,4,8 Port
Name: Gepon Equipment,32 Ports PON & Catv EDFA Combiner / OLT PON &WDM EDFA Downlink: 4 GE Port,1*100/1000M Auto-adaptive
Epon: IEEE802.3ah
High Light:

mini 4 Port Epon OLT

,

PX20+++ 4 Port Epon OLT

,

FTTH Solution 4 pon olt

mini 4Port Epon OLT for ftth solution with 1pcs PX20+++ epon olt factory price

Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 0





Main Features:
 Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
 Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
 Support China Telecom GPON CTC3.1 standard and expand OAM
 Support triple churning encryption request
 Support DBA reporting mechanism request
 Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
 Support the remote upgrade and download
 Support status detection and fault report
 Support to save configured parameters if power down
 Support to configure the work mode at the user port
 Support MDI-MDIX automatic-detection at the user port.
 Support data encryption and decryption
 Support access authentication based on serial number
 Support access authentication based on MAC address
 Support 802.1Q VLAN
 Support rich QinQ VLAN functions and IGMP Snooping
 Support traffic rule to modify the related priority
 Support IEEE802.11n 2T2R WiFi function
 Support to restore the factory settings
 Support the remote reset and reboot
 Support dying gasp outage alarm
 Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
 Support USB port


Technical Parameters
Product Name
10/100M Media Converter
Product Model
OFSDS-20C
onnector
Fiber: 1* 100Mbps Connector
RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media
Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 120km)
Forwarding Mode
Store-and-Forward
Forwarding Rate:
1488000pps/port
Operating standard
EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power
external
Input:AC 100~250VOutput:DC 5V 1A ,(default).
or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional)

USB power supply(Optional).
Power consumption
2.5W
LED
Power, Link/Act, TX 100,TX,FDX, Link/Act.
Working Environment
Working temperature: -10～55℃ ;
Storage temperature: -20～75℃
Relative Humidity: 5%~95 %( no condensation)
Other Specifications :
Installation
DIN-Rail or Wall mounts,Optional,Default device is not
Packing List
1× Media Converter
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF
100,000 hours
Weight & Size
Product Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L×W×H): 94.5*70*26mm
Packing size(L×W×H):215*138*56mm
Warranty
1-year
DIP Switch:
SW1
ON
Enable LFP
OFF
Disable LFP
SW2
ON
Cut-through
OFF
Store-and-Forward
SW3
OFF
No function
SW4
OFF
No function





Product packaging

Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 1
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 2  Company



View of the CompanyMini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 3
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 4
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 5
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 6
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 7
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 8
Mini 4 Port Epon OLT IEEE802.3ah With 1pcs PX20+++ For FTTH Solution 9Customer Feedbac
FAQ
1. who are we?
We are based in Guangdong, China, started our business in 2009,we are selling our products to South America(30.00%),Southeast Asia(35.00%),Domestic Market(7.00%),North America(9.00%),Europe(5.00%),,Western Europe(11.00%),Mid East(3.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Switch,GPON ONU,EPON ONU

4. why should you buy from us not from other suppliers?
Pls check our company's advantages on the above , section"Why choose us"/

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
Accepted Payment Currency:USD,EUR,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
