| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE |
| Model Number: | OFSX622-VW |
| Minimum Order Quantity: | 2 |
| Price: | 23.23 USD per Unit |
| Packaging Details: | Box/Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 70000 per Month |
| Wavelength: | T1550/R1310 | Distance: | 20km |
|---|---|---|---|
| Material: | Plastic | LOGO: | Customized |
| Connector: | SC,LC | MOQ: | 2 |
| Model Number: | OFSX622-VW | Place Of Origin: | China |
| Warranty Time: | 1 Year | ||
| High Light: | 1POTS Optical Network Unit,20km Optical Network Unit,1GE 1FE FTTH Epon Onu |
||
Product Description

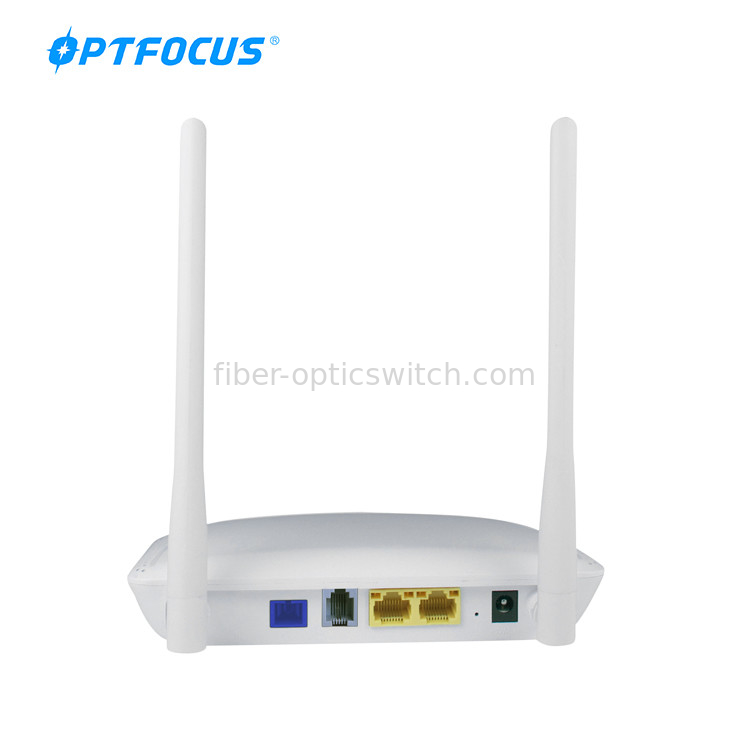

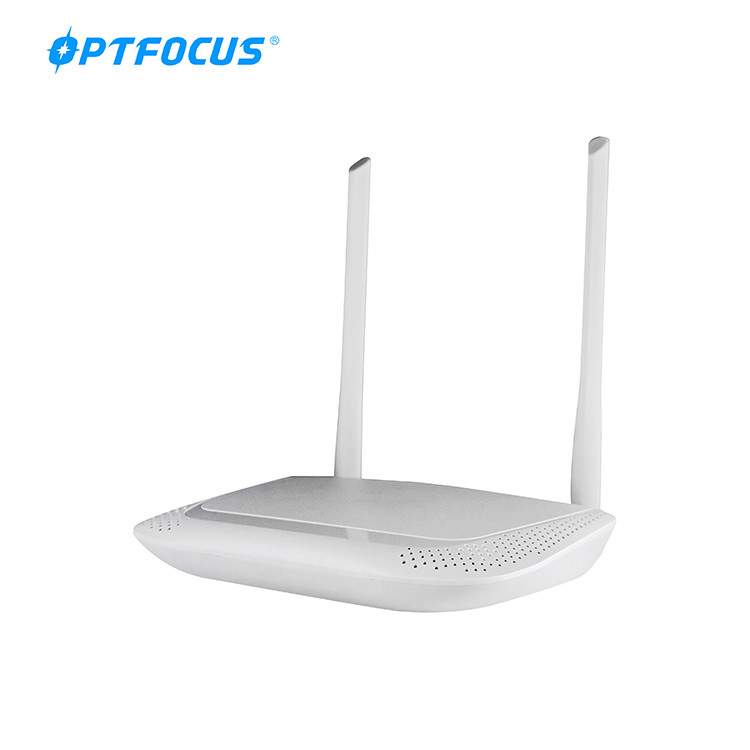

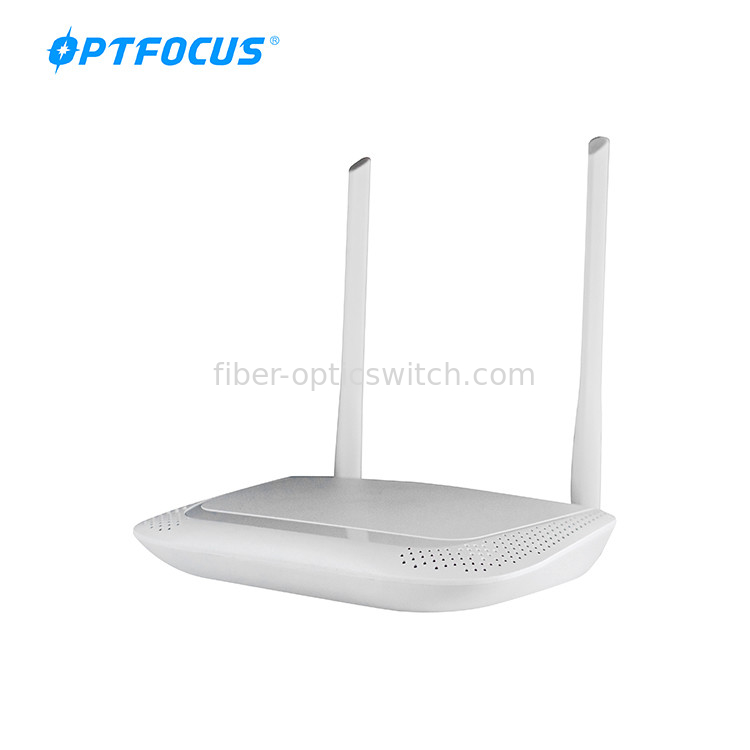

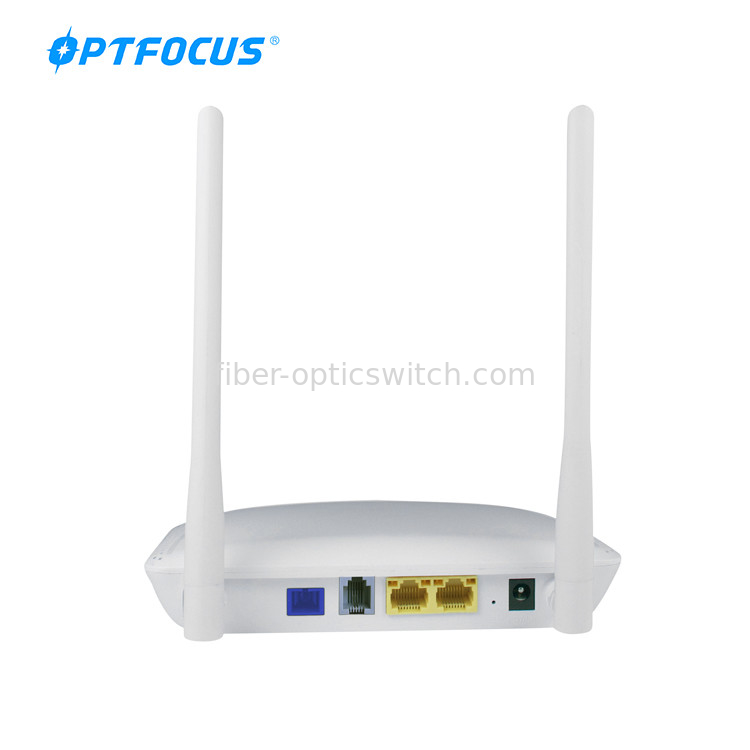

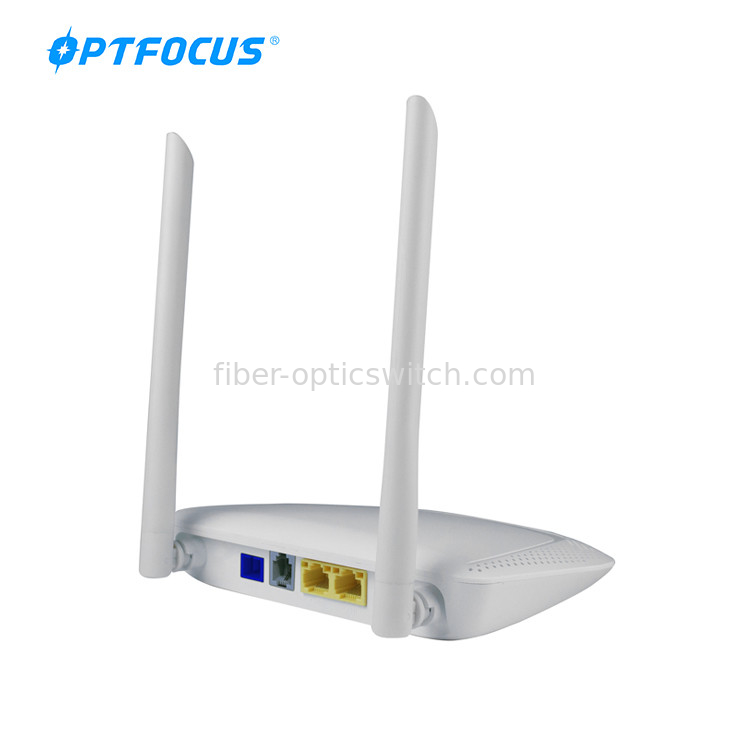

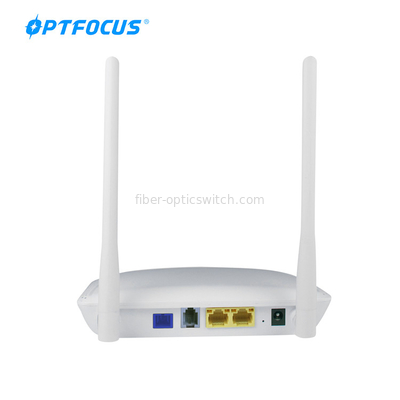

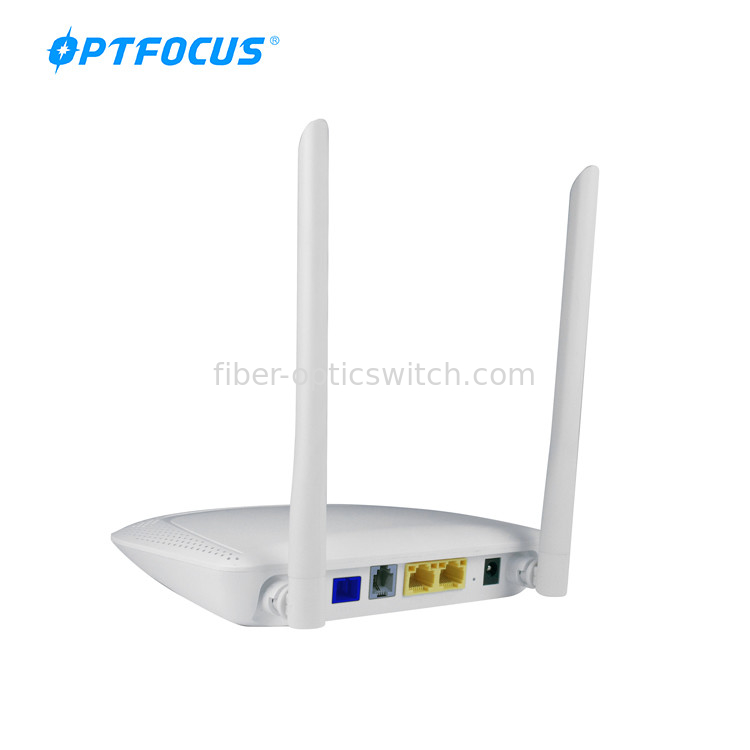

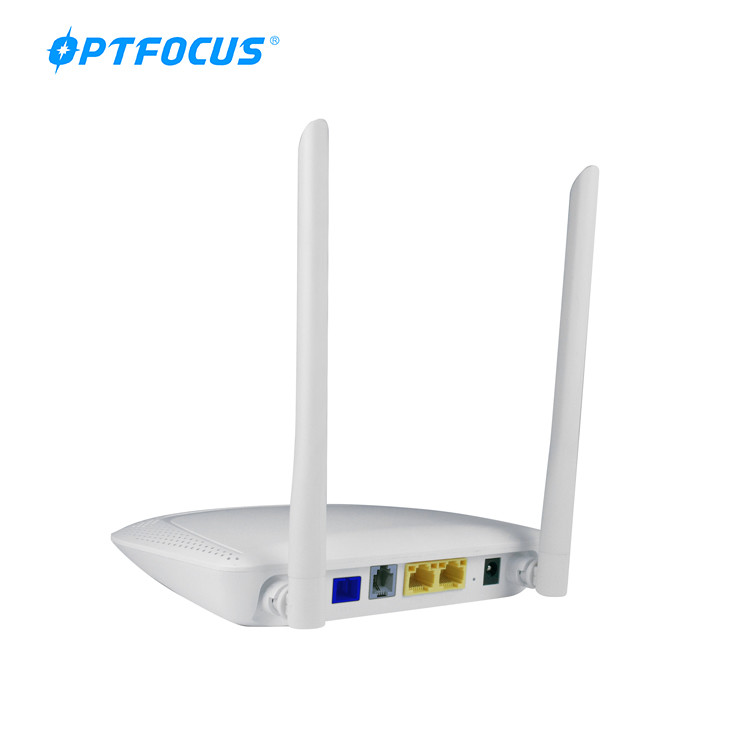

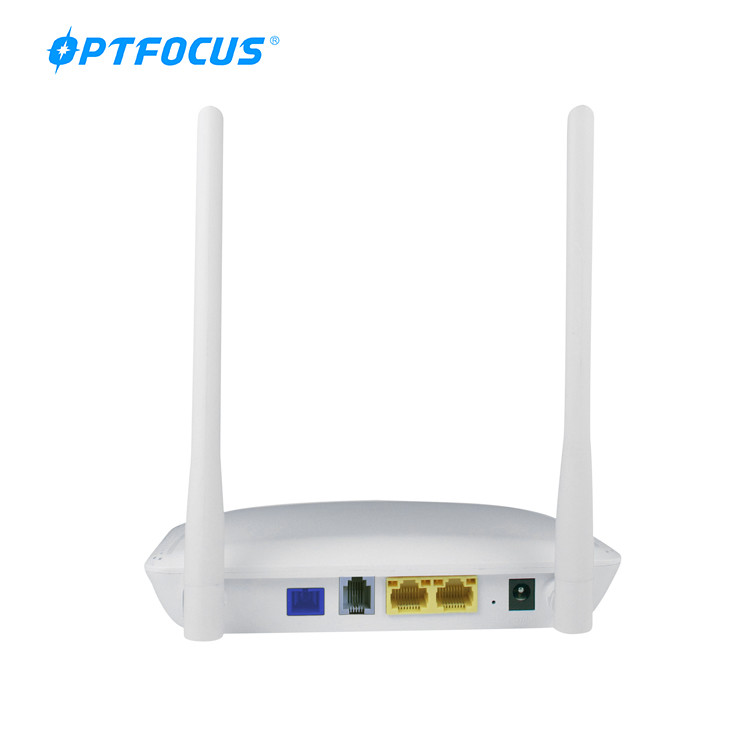

OFSX622-VW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Features:
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 7 pcs |
| DC supply interface | input＋12V 1A |
| Power | ≤8W |
| Operating temperature | -5～+55℃ |
| Humidity | 5～95%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 167*119*32mm(mainframe) |
| Weight | 0.4Kg(mainframe) |
Applications
l Support IEEE802.11n 2T2R WiFi function
