| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE |
| Model Number: | OFSX611 |
| Minimum Order Quantity: | 2 |
| Price: | 8.66 USD per Unit |
| Packaging Details: | Box/Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 70000 per Month |
| Wavelength: | T1550/R1310 | Distance: | 20km |
|---|---|---|---|
| Material: | Plastic | LOGO: | Customized |
| Connector: | SC,LC | MOQ: | 2 |
| Model Number: | OFSX611 | Place Of Origin: | China |
| Warranty Time: | 1 Year | ||
| High Light: | Xpon Optical Network Unit,1.25G Optical Network Unit,plastic Xpon ONU Router |
||
Product Description

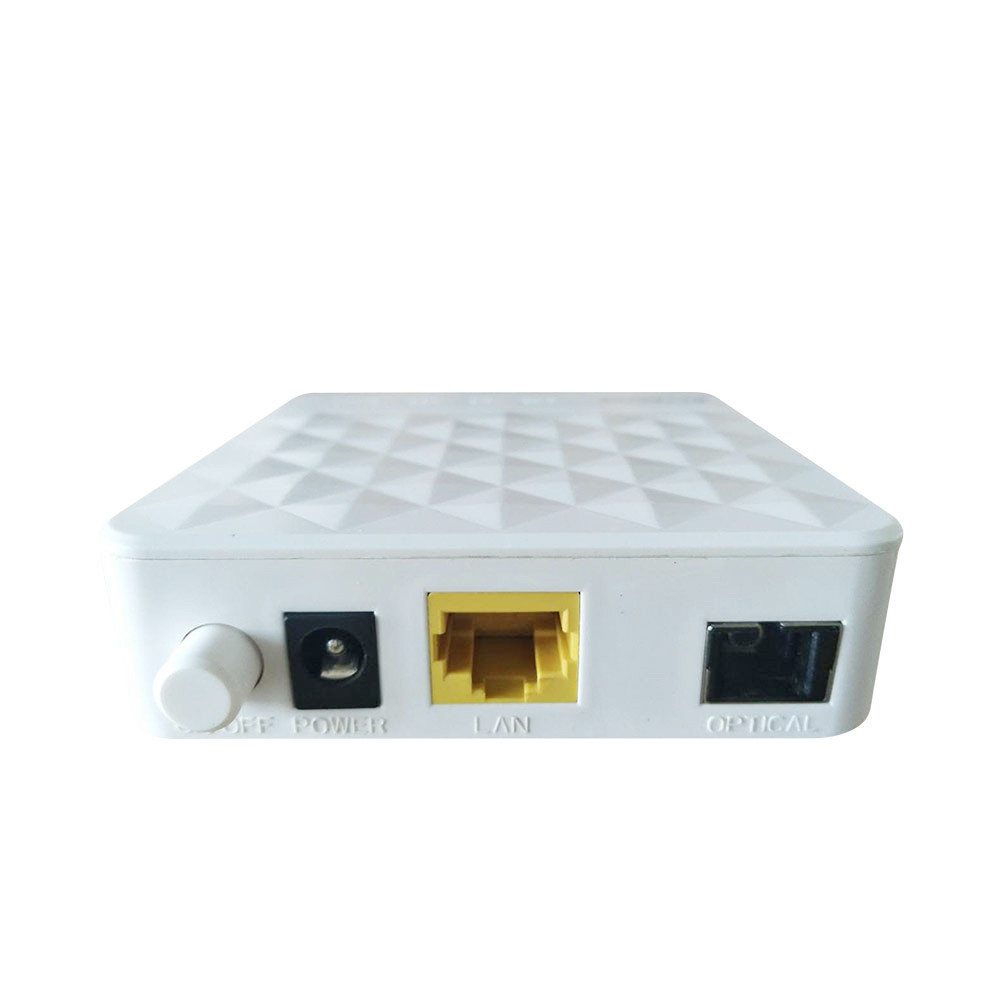

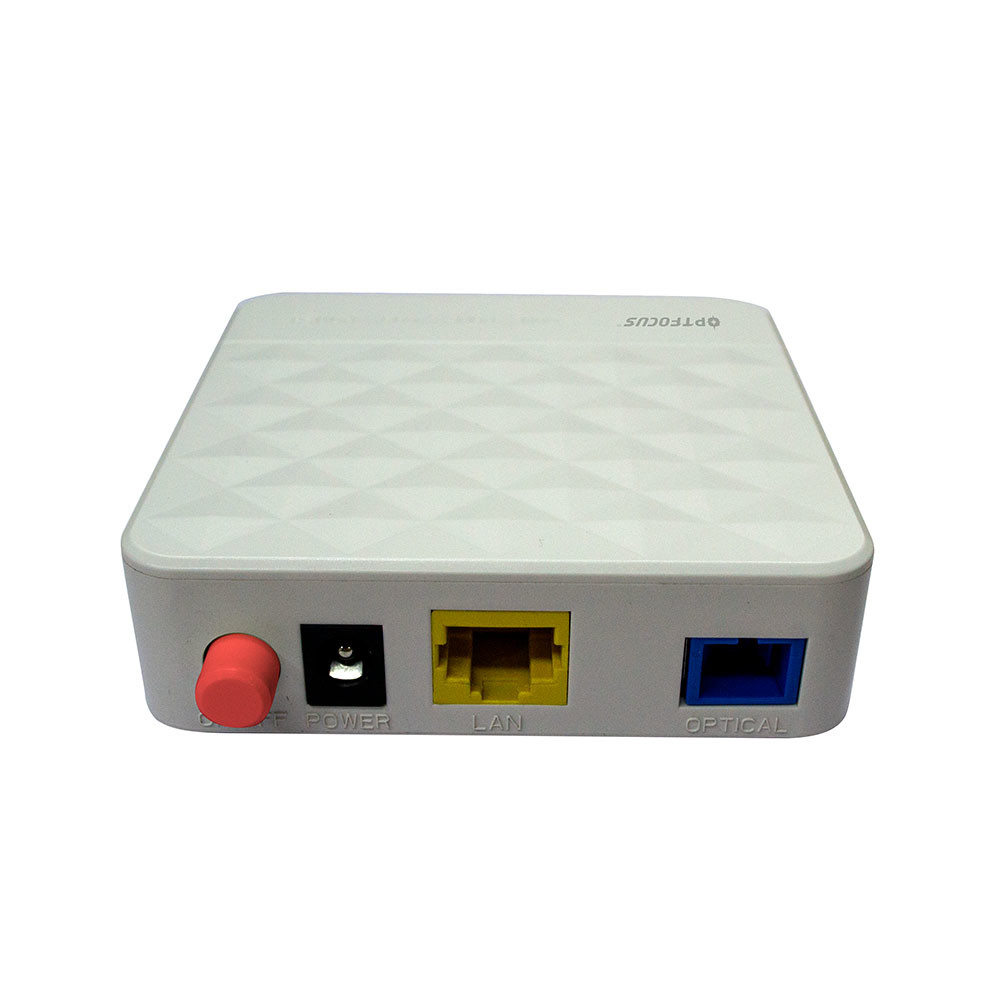

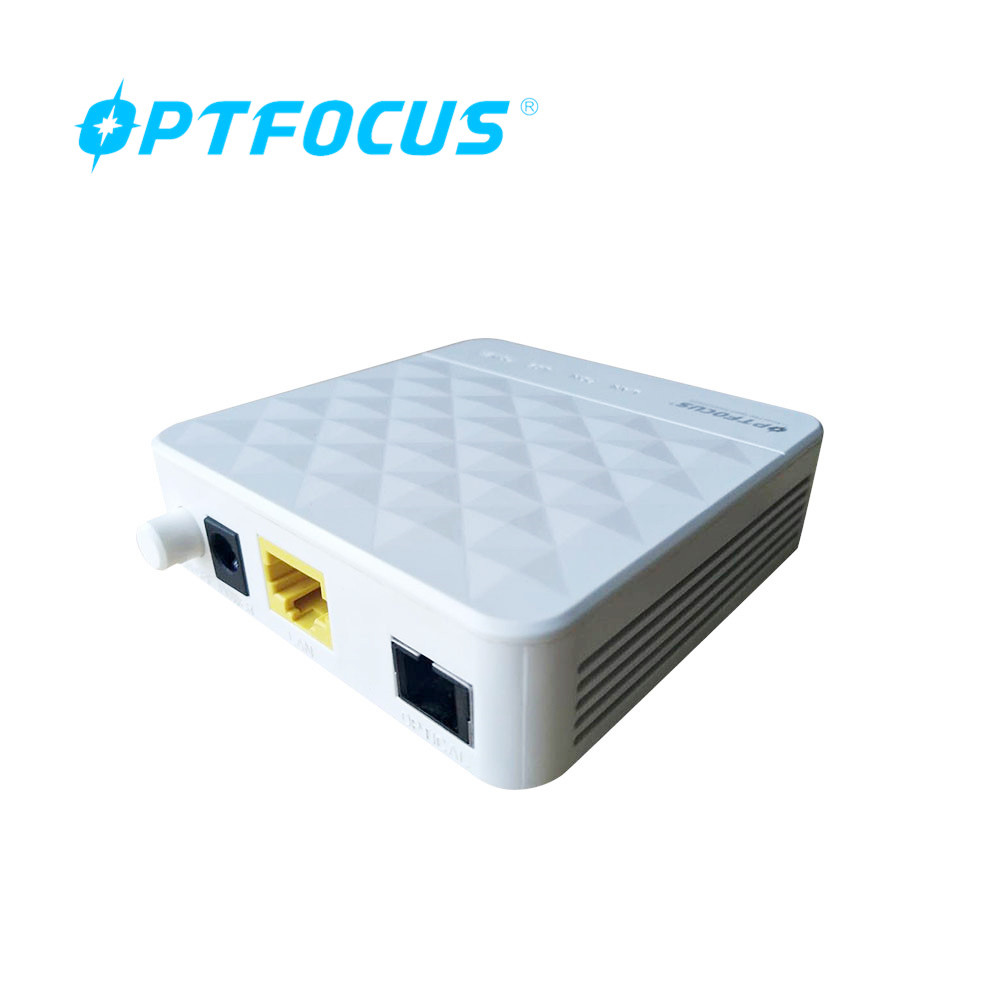

OFSX611 XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Features:
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input＋12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5～+55℃ |
| Humidity | 5～95%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 85*85*28mm(mainframe) |
| Weight | 0.24Kg(mainframe) |

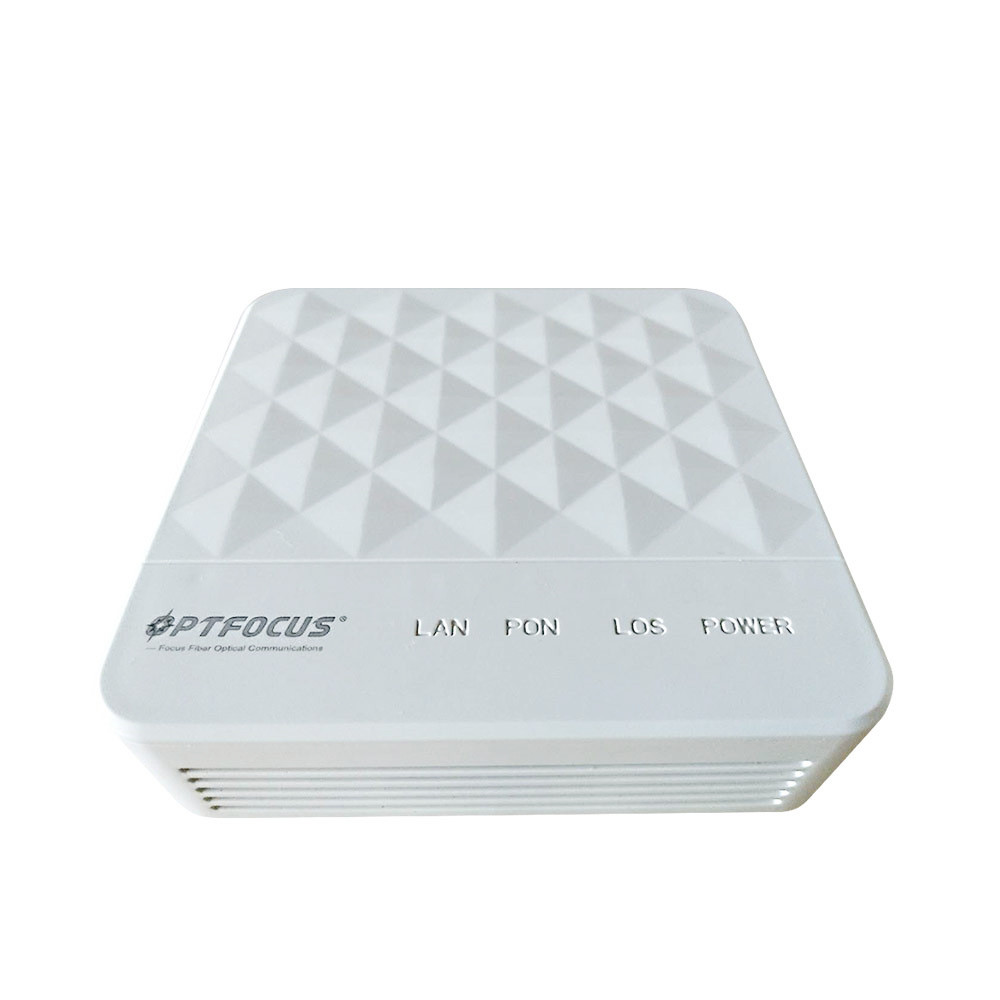

| symbol | color | meaning |
| PWR | green | ON:successfully connect with power OFF:fail to connect with power |
| PON | green |
ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
| LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
| LOS | red |
Flicker: fail to connect with PON port OFF: detected fiber to input |
Applications
1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switch,GPON ONU,EPON ONU
