FTTH ONU WIFI Modem 1GE 3FE CATV WIFI WDM EPON GPON ONU With RF Output

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE ROSE
Model Number: OFSX622-CV
Minimum Order Quantity: 1 PCS
Price: 20USD
Packaging Details: 20 pcs per carton box
Delivery Time: 4-14 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 5000 PCS per month
Port: 4 LANS Use: FTTH/FTTB/FTTC
Wavelength: 1310/1550NM Distances: 20/40km
Keywords: GPON ONT
High Light:

FTTH ONU WIFI Modem

,

RF Output ONU WIFI Modem

,

1GE 3FE EPON GPON ONU

ONU WIFI Modem 1GE+3FE+CATV+WIFI WDM EPON GPON ONU FTTH ONU With RF Output

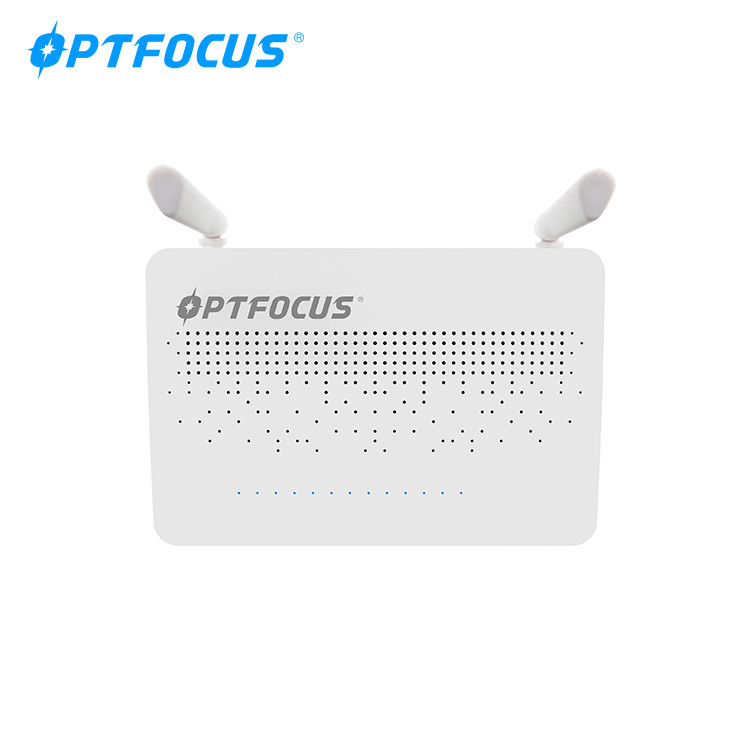

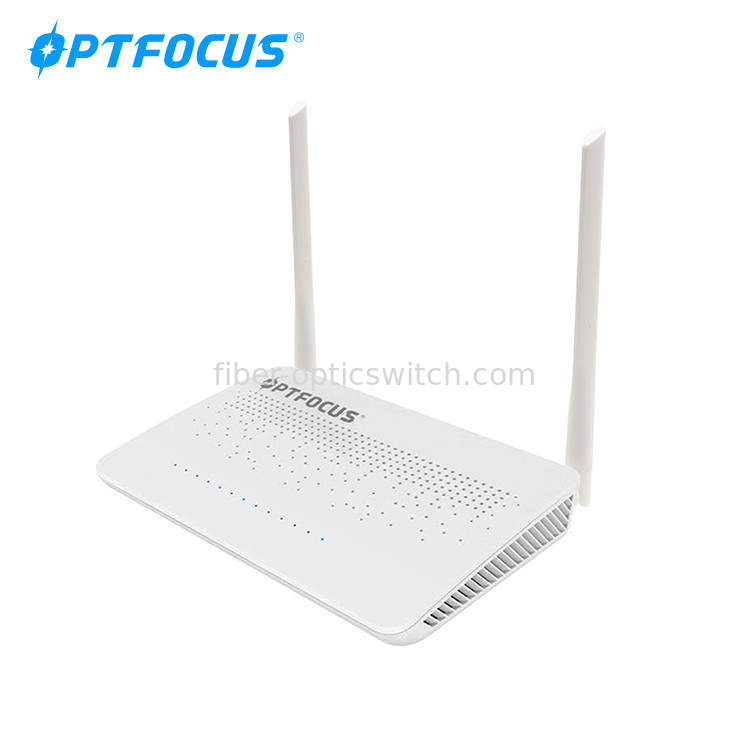

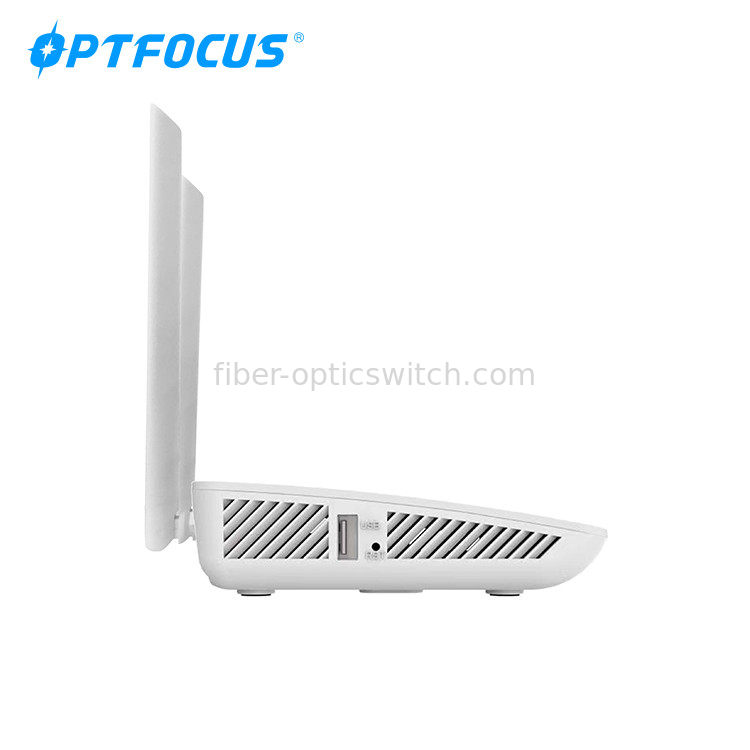

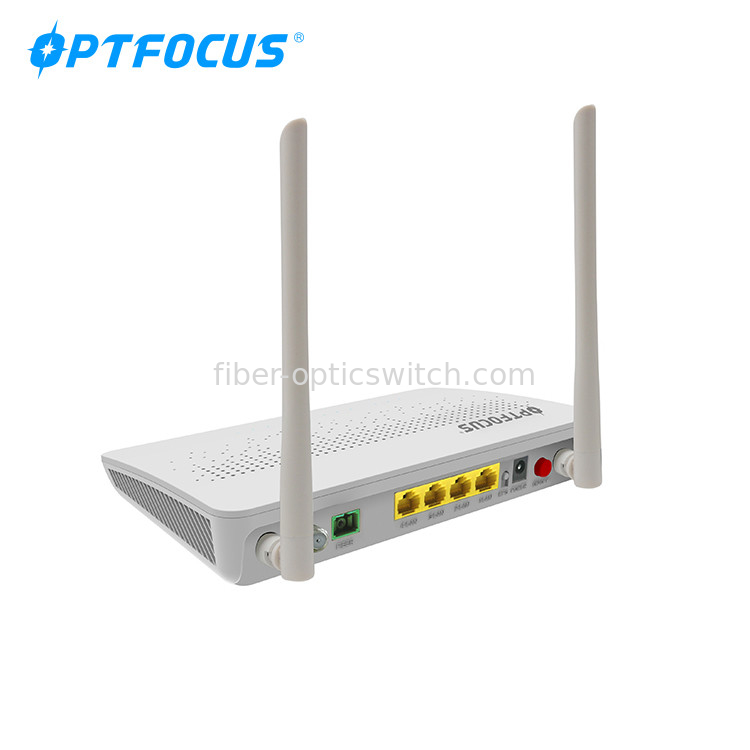

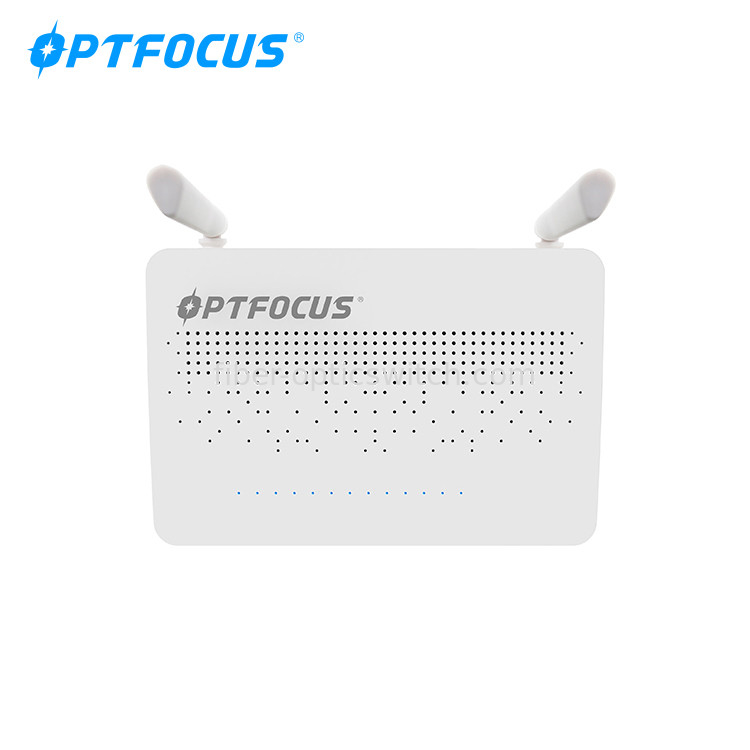

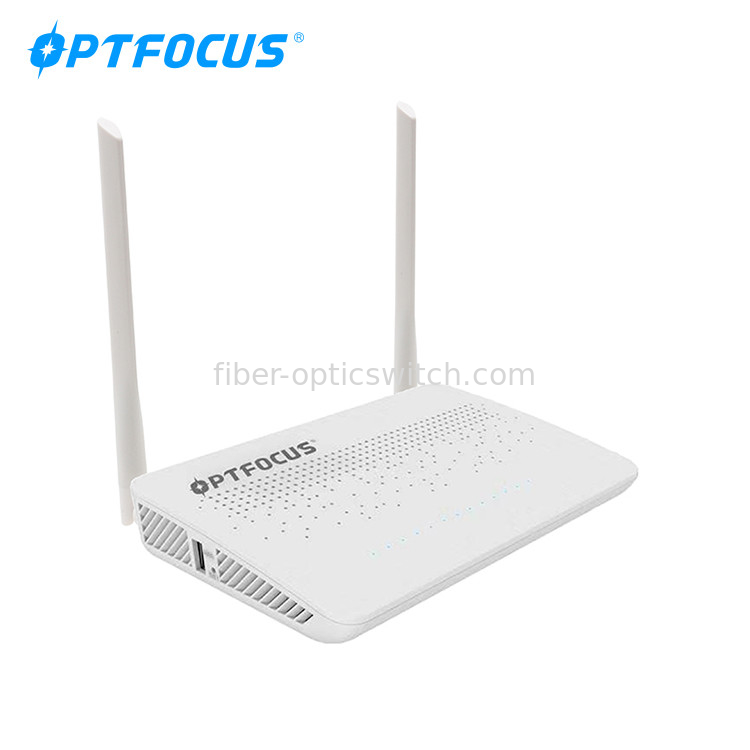

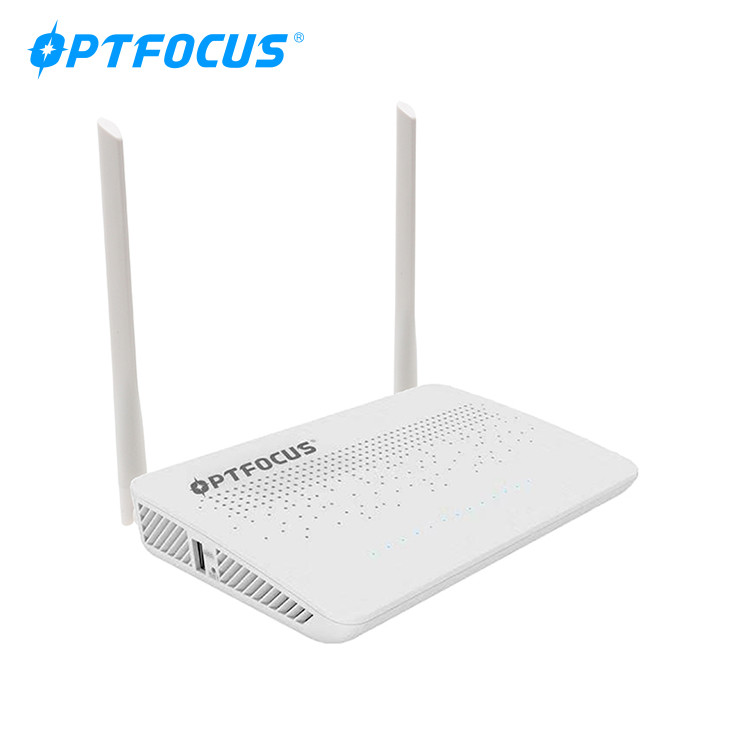

FTTH ONU WIFI Modem 1GE 3FE CATV WIFI WDM EPON GPON ONU With RF Output 0



OFSX624-CW

1GE+1FE Ethernet ports with Wifi VOIP GPON ONU Description:

OFSX624-CW is XPON ONU terminal devices. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement.



Tech parameters description



Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 7 pcs
DC supply interface input+12V 1A
Power ≤8W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃
Dimension(MM) 167*119*32mm(mainframe)
Weight 0.4Kg(mainframe)
Tech features description
antenna

2T2R Mode

5DBI Gain ,Frequency:2.4G

rate 300Mbps PHY rate
encryption methods WFA,WPA,WPA2,WAPI
Tech features description
Voltage and Current Monitoring The GPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC



Products Features:

l Support IEEE802.11n 2T2R WiFi function



Product name Product description
OFSG622-VW 1*GPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,1*10/100Base-T,1*WIFI,VOIP, 12V Power supply



Company Profile

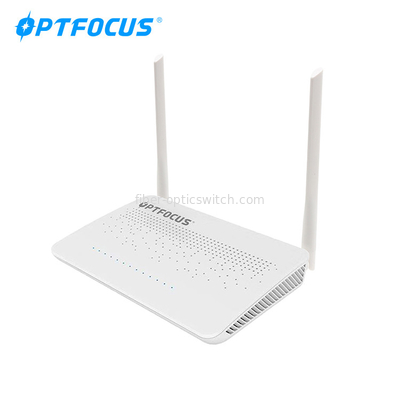

FTTH ONU WIFI Modem 1GE 3FE CATV WIFI WDM EPON GPON ONU With RF Output 1

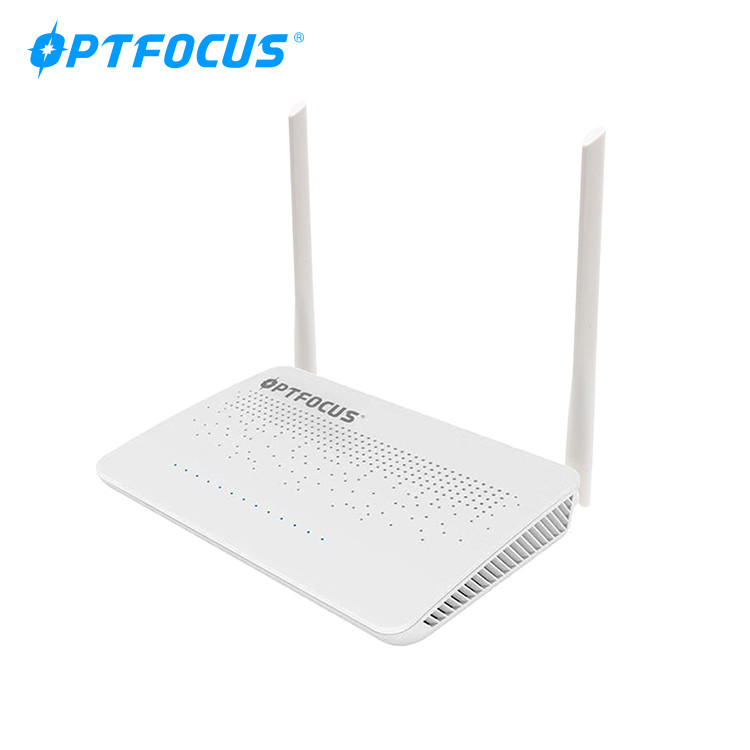

FTTH ONU WIFI Modem 1GE 3FE CATV WIFI WDM EPON GPON ONU With RF Output 2
