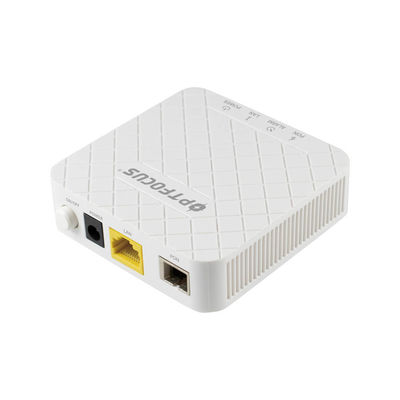

1GE Zte GPON OLT ONU Epon ONT 5W Fiber Optical Ont Without Wifi

Basic Information
Place of Origin: China
Brand Name: Optfocus
Certification: CE&FC
Model Number: OFSE511F
Minimum Order Quantity: 100
Price: $6.5/pcc exw price
Packaging Details: paper box/export carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month
Up-link Interface: 1 EPON Interface,SC Single Mode Single Fiber RX 2.488 Gbits/s Rate And TX 1.244 Gbits/s Rate Fiber Type:SC/UPC Optical Power:0~4 DBm Sensitivity:-27 DBm Safety: ONU Authentication Mechanism Wavelength(nm): TX 1310nm,RX 1490nm
Fiber Connector: SC/UPC Connector (SC / APC Optional) Down-link Data Interface: 1*10/100/1000M Auto-negotiation Ethernet Interface, RJ45 Interface
Indicator LED: 4 Pcs DC Supply Interface: Input+12V 0.5A
Power: ≤5W Operating Temperature: -5~+55℃
Humidity: 10~85%(non-condensation) Storage Temperature: -30~+70℃
Dimension(MM): 85*85*28mm(mainframe) Weight: 0.24Kg(mainframe)
High Light:

1GE Zte GPON OLT ONU

,

Epon ONT GPON OLT ONU

,

5W Fiber Optical Ont

High quality ftth gpon ont modem gpon onu ont with 1GE+1FE XPON ONT sip phone ports for FTTH zte









OFSG511F

1GE Ethernet ports EPON ONU for FTTH solution



Description:

OFSG511F is EPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators.This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch. It is highly reliable and easy to maintain, with guaranteed QoS for different service.













Technical Specifications

Technical items

Description

Optical property

Upstream PON

interface

1 EPON interface, SC single-mode/single-fibre,

symmetric 1.25 Gbps

Wavelength

Tx 1310nm, Rx 1490nm

Optical output power

-1~+4dBm

Receiving sensitivity

<-26dBm

Farthest distance

20km between OLT and ONU

Optical interface

SC/UPC connector

Downstream LAN

interface

1*10/100/1000Mbps auto adaptive Ethernet interfaces,

Full Duplex/Half Duplex, RJ45 connectors

Layer 2/3 switch

Support IEEE802.1Q VLAN

Support speed rate inhibition of broadcast packet at ONU

IEEE 802.3X flow control

Support 16 multicast addresses at each LAN port

Security strategy

Support AES-128,data encryption for both upstream

and downstream

Support dynamic update of key

Management

maintenance

Centralized OLT management based on OAM

WEB,CLI

Upgrade software remotely

Hardware information

Indicators

4 indicators, for status of power supply, PON port and 1

Giga-Ethernet port.

DC power supply

+12V, external AC-DC power adaptor

Chipset

zte chipset

Power switch

1

Power consumption

≤2.5W

Operating condition

Operating temp: -5~+55
Operating humidity:10~90%(non-condensed)

Storing condition

Storing temp: -30~+60
Storing humidity:10~90%(non-condensed)

Dimension

83mm*83mm*25mm(length*width*height)

Net weight

0.24Kg









Feature:

lPlug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

lSupport triple churning encryption request

lSupport DBA reporting mechanism request

lSupport OAM remote configuration maintenance function

lSupport the remote upgrade and download

lSupport status detection and fault report

lSupport to configure the work mode at the user port.

lSupport data encryption and decryption

lSupport 802.1Q VLAN

lSupport rich QinQ VLAN functions and IGMP Snooping

lSupport traffic rule to modify the related priority.

lSupport LED indication

lSupport to restore the factory settings

lSupport the remote reset and reboot

lSupport dying gasp outage alarm

lFully compatibility with OLT based=on=Broadcom/PMC/Cortina chipset.



1GE Zte GPON OLT ONU Epon ONT 5W Fiber Optical Ont Without Wifi 0





Product Description

1GE+1FE Ethernet ports with Wifi VOIP WDM CATV XPON ONU for FTTH solution



XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.









Solution:

Customized logo OEM zte compatible GPON ONU Epon ONT 1GE port fiber optical ont without wifi from factory

Company Information:

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx,

Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.



Customized logo OEM zte compatible GPON ONU Epon ONT 1GE port fiber optical ont without wifi from factory



Production Workshop:

Customized logo OEM zte compatible GPON ONU Epon ONT 1GE port fiber optical ont without wifi from factory



Customized logo OEM zte compatible GPON ONU Epon ONT 1GE port fiber optical ont without wifi from factory
