metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU

Basic Information
Place of Origin: CHINA
Certification: CE , RoHS
Model Number: OFSE3404
Minimum Order Quantity: 2 pcs
Price: 293-349 USD
Packaging Details: standard PE bag and carton for delivery
Delivery Time: 5-15 working days
Payment Terms: MoneyGram, L/C, Western Union
Supply Ability: 5000 pieces per month
Product Name: 4*SPF Ports Smart Cassette EPON OLT Optic GPON ONU OLT Port: 4*SPF+4*EPON+4*RJ45
WEB Management: Supported Network: SNMP V1/v2c
Warranty: 12 Months Type: Gepon Olt
High Light:





4*SPF EPON OLT Optic Device

 4*SPF Ports Smart Cassette EPON OLT Optic GPON ONU OLT




Product Brief Introduction

OFSE3404 is a high integration and medium capacity cassette EPON OLT designed for operators' access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network--based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. OFSE3404 possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.


Details Images

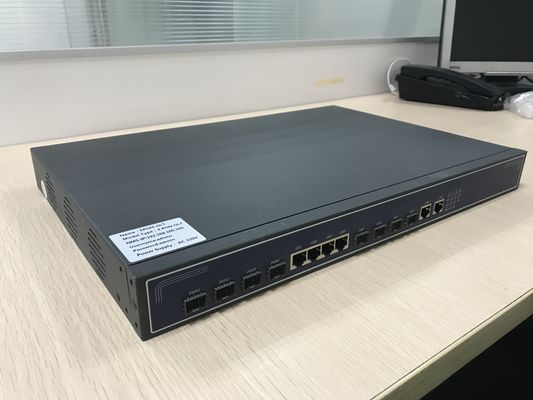

metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU 0metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU 1metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU 2



Hardware Features
Business Interface Supply 4 PON Port
4SFP slots for Uplink
10/100/1000M auto-negotiable,RJ45:4pcs for Uplink
Management Ports Provide 10/100Base-T RJ45 out-band network management port
It can manage the in-band network through any GE uplink port
Provide local configuration port
Provide 1 CONSOLE port
Data exchange 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching
LED Light RUN,PW instructions system running,power working status
PON1 to PON4 instructions 4 pcs PON port LINK and Active status
GE1 to GE8 instructions 8 pcs GE uplink's LINK and Active status
Power Supply 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V
Power Consumption 50W
Weight 4.6 Kg
Working Temperature 0~55ºC
Dimension 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
EPON Function
EPON Standard Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 ,2.1 and 3.0 standard
Dynamic bandwidth allocation
Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;
Bandwidth granularity 64Kbps
Security Features Support PON line AES and triple churing encryption;
Support ONU MAC address binding and filtering;
VLAN Support 4095 VLAN additions, transparent transmission, conversion and deletion;
Support 4096 VLAN additions, transparent transmission, conversion and deletion;
Support VLAN Stacking (QinQ)
MAC address learning Support 32K MAC addresses;
Hardware-based wire-speed MAC address learning;
Based on port, VLAN, link aggregation MAC restrictions;
Spanning Tree Protocol Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Multicast Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;
Support IGMP v1/v2 and v3
NTP protocol Support NTP protocol
Quality of Service(QoS) Support 802.1p priority queue scheduling;
Support SP, WRR or SP + WRR scheduling algorithm;
Access Control Lists
According to the destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet frame type, IP precedence, IP packets carried protocol type ACL rules set;
Support the use of the ACL rules for packet filtering;
Support Cos ACL rule using the above settings, IP priority setting, mirroring, speed limit and redirect the application;
Flow Control Support IEEE 802.3x full-duplex flow control;
Support port speed;
Link Aggregation Support 8 port aggregation group, each group supports 8 member ports
Port Mirroring Support the port mirroring of uplink interfaces and PON port
Log Support by the alarm log output level shield;
Support for logging output to the terminal, files, and log server
Alarm Support four alarm levels (severity, major, minor, and warning);
Support 6 alarm types (communication, quality of service, processing error, hardware equipment and the environment);
Support alarm output to the terminal, log and SNMP network management server
Performance Statistics Performance statistics sampling time 1 ~ 30s;
Support the 15 minutes performance statistics of uplink interfaces ,PON port and ONU user port
Administration maintenance Support OLT configuration save, support restore the factory settings;
Support OLT online upgrade;
support ONU offline service configuration and automatically configure ;
Support ONU remote upgrade and batch upgrade;
Network management Support local or remote CLI management configuration;
Support SNMP v1/v2c network management, support band, in-band network management;
Support the standard of broadcasting industry "EPON + EOC" SNMP MIB and support auto-discovery protocol EoC headend (BCMP);
Support WEB config mamagement
Open interfaces for third-party network management;


Product Main Features

1. Support Dynamic Bandwidth Allocation (DBA),the bandwidth granularity 64Kbps;

2. Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure;
3. Support 4096 VLAN additions, transparent transmission and conversion, support VLAN stacking (QinQ);
4. Support 32K MAC's line speed learning and aging, support MAC address restriction;
5. Support IEEE 802.1d (STP), 802.1w (RSTP) Spanning Tree Protocol;
6. Support IGMP v1/v2 Snooping and Proxy, support CTC controllable multicast;
7. Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm;
8. Supports port speed, support packet filtering;
9. Support port mirroring and port trunking;
10. Provide logs, alarms and performance statistics;
11. Support WEB Management;
12. Support SNMP v1/v2c network.


Packaging & Delivery



metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU 3


Related Products


metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU 4

View of the Company


metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU 5




Exhibition and Trade Show


metal SNMP v1/v2c 4*SPF Ports EPON Optic GPON OLT ONU 6




1.What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.


2. What is your payment terms?

Trade assurance ,T/T, West Union or Cash.


3. What is your warranty time

We promise 2 years' warranty for all products shipped from us.


4. What is the lead time?

For usual products. We keep stock, could ship 1-3 days after PO. For big quantity and special products. Please check lead time with our sales representative.


5. Could I use our own logo and label?

Yes, we could provide a OEM service and make the products with your own label.
