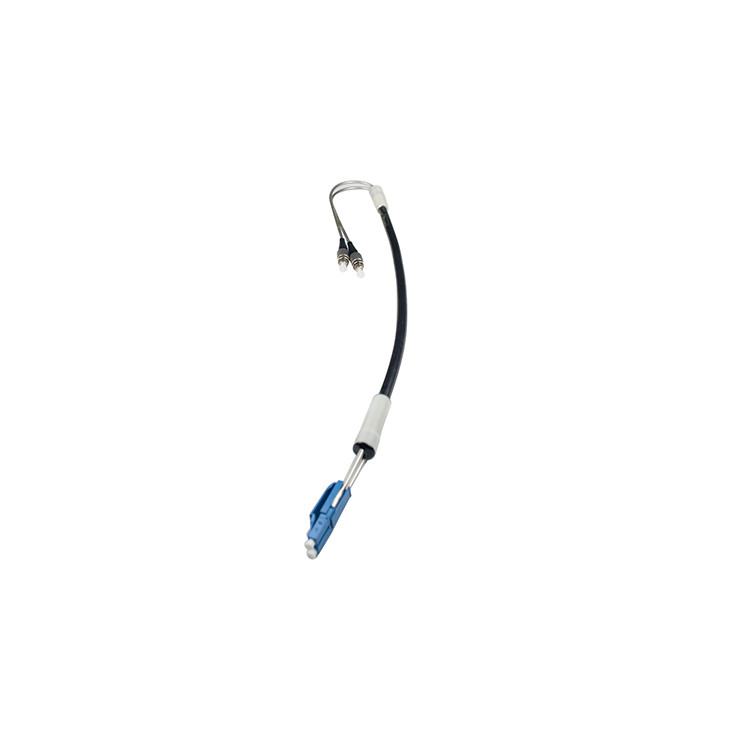

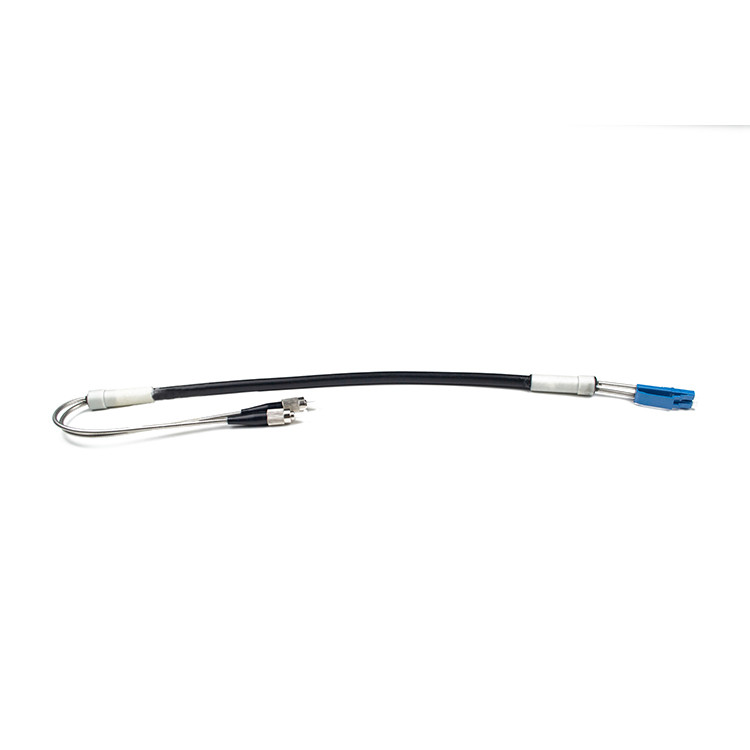

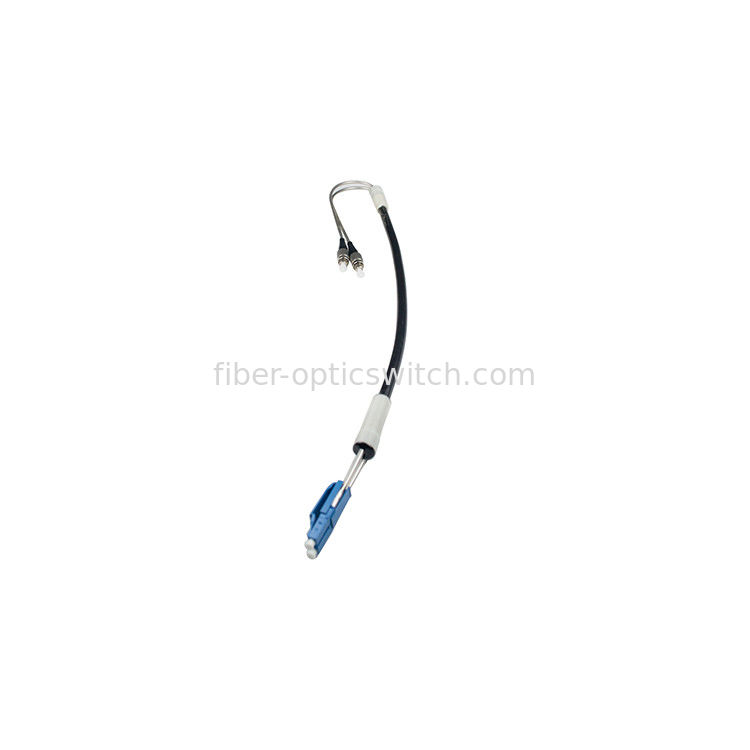

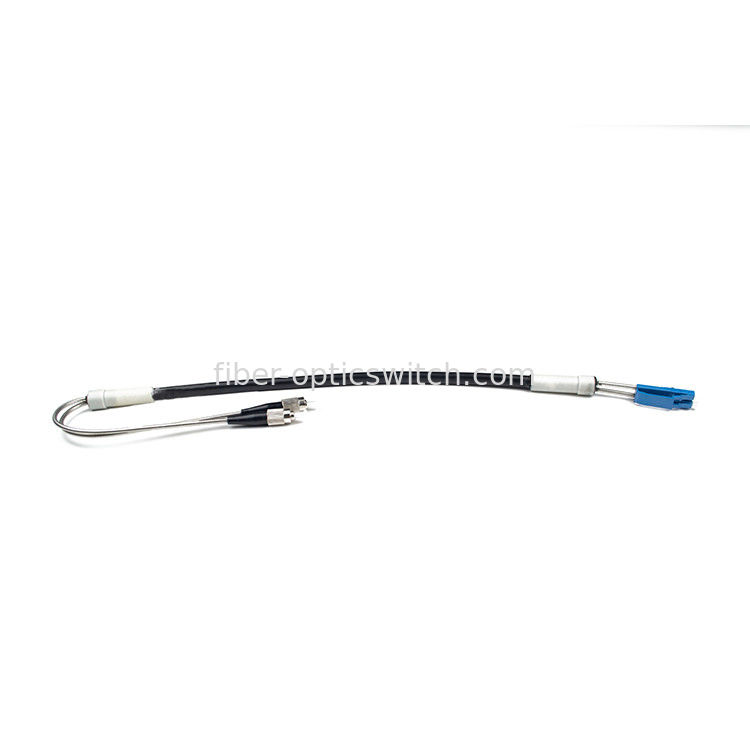

LSZH CPRI LC FTTA Outdoor Cable Assembly 2.0mm

Basic Information
Place of Origin: China
Brand Name: Neutral
Certification: CE
Model Number: CPRI
Minimum Order Quantity: 1000 meters
Price: USD 0.1~3/PIECE
Packaging Details: Factory standard package
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal and so on
Supply Ability: 50000 pcs / month
Application: For Connection Between Distribution Box And RRH Connector Type: LC
Cable Material: LSZH Storage Temperature: -20~+70℃
Endurance: 500 Matings Humidity: +40°C At 93%, 96h Duratio
High Light:

CPRI LC Outdoor Cable Assembly

,

FTTA Outdoor Cable Assembly

,

2.0mm Single Mode Patch Cord

CPRI LC outdoor cable assembly LSZH cable 2.0mm single mode multimode patch cord



CPRI LC Outddoor cable Assemblies Specification

LSZH CPRI LC FTTA  Outdoor Cable Assembly 2.0mm 0



Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.



Features
1. Easily add/install jumper cables for a future expansion.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. Flexibility with small bending radius and excellent cable routing properties.
5. End-face geometry and quality superior than IEC and Telcordia standards.
6. The material in the jumpel cable are all-weather and UV-resistant.
7. Mechanical performance: IEC 61754-20 standard.
8. RoHS and REACH materials compliant.



PRODUCT PARAMETERS

Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Durability 500 mating cycles
Working temperature -40 to + 85℃

















Connector Types

Type Reference Note

LC

IEC 61754-20

Single mode duplex

APC: Green connectors , Green boots UPC: Blue connectors , White boots
Multimode duplex UPC: Grey Connectors , White boots



Dimensional Diagrams

CPRI LC Outddoor cable Assemblies

LSZH CPRI LC FTTA  Outdoor Cable Assembly 2.0mm 1



Patch cord versions

Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0<L≤20 +10/-0
20<L≤40 +15/-0
L>40 +0.5%L/-0
