| Place of Origin: | China |
|---|---|
| Brand Name: | Neutral |
| Certification: | CE |
| Model Number: | CPRI |
| Minimum Order Quantity: | 1000 meters |
| Price: | USD 0.1~3/PIECE |
| Packaging Details: | Factory standard package |
| Delivery Time: | 5-10 days, depend on the quantity |
| Payment Terms: | L/C, T/T, Western Union, Paypal and so on |
| Supply Ability: | 50000 pcs / month |
| Application: | For Connection Between Distribution Box And RRH | Connector Type: | LC |
|---|---|---|---|
| Cable Material: | LSZH | Storage Temperature: | -20~+70℃ |
| Endurance: | 500 Matings | Humidity: | +40°C At 93%, 96h Duratio |
| Highlight: | RRH FTTA Fiber To The Antenna,LC FTTA Fiber To The Antenna,CPRI LC Optical Patch Cord |
||

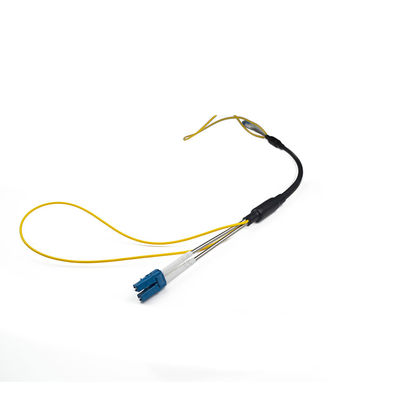

FTTA Fiber To The Antenna Outdoor Waterproof CPRI LC Optical Patch Cord
CPRI LC Outddoor cable Assemblies Specification
Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.
Features
1. Easily add/install jumper cables for a future expansion.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. Flexibility with small bending radius and excellent cable routing properties.
5. End-face geometry and quality superior than IEC and Telcordia standards.
6. The material in the jumpel cable are all-weather and UV-resistant.
7. Mechanical performance: IEC 61754-20 standard.
8. RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Note | |
|
LC |
IEC 61754-20 |
Single mode duplex |
APC: Green connectors , Green boots UPC: Blue connectors , White boots |
| Multimode duplex | UPC: Grey Connectors , White boots | ||
Dimensional Diagrams
CPRI LC Outddoor cable Assemblies
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
