FTTH ABS 1x8 SC 16cores Optics Joint Box Tray

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE, ISO
Model Number: Ofs-Fth-216D1
Minimum Order Quantity: 10 PCS
Price: USD 7-9
Packaging Details: carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 50000 pcs/month
Capacity: 16 Cores Material: PC+ABS
Color: Black Or White Dimensions: 325*275*95mm
Weight: 1kg Keywords: 16 Cores Fiber Optics Joint Box
High Light:

16cores Optics Joint Box Tray

,

1x8 SC Optics Joint Box Tray

,

FTTH Optical Fiber Panel Box



16cores FTTH terminal box

OFS-FTH-216D Fiber Access Terminal - 16 Cores



Description

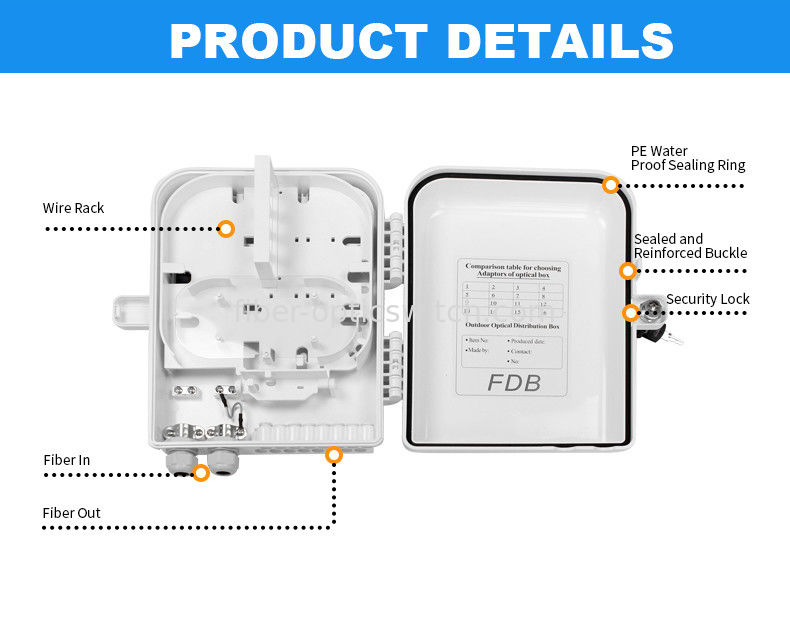

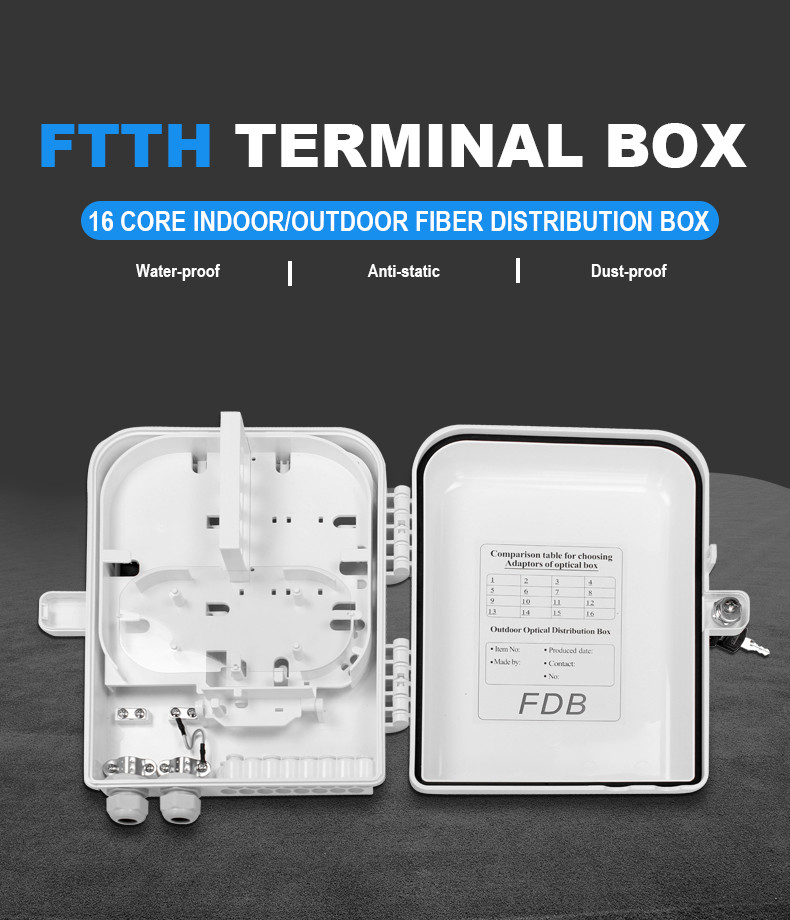

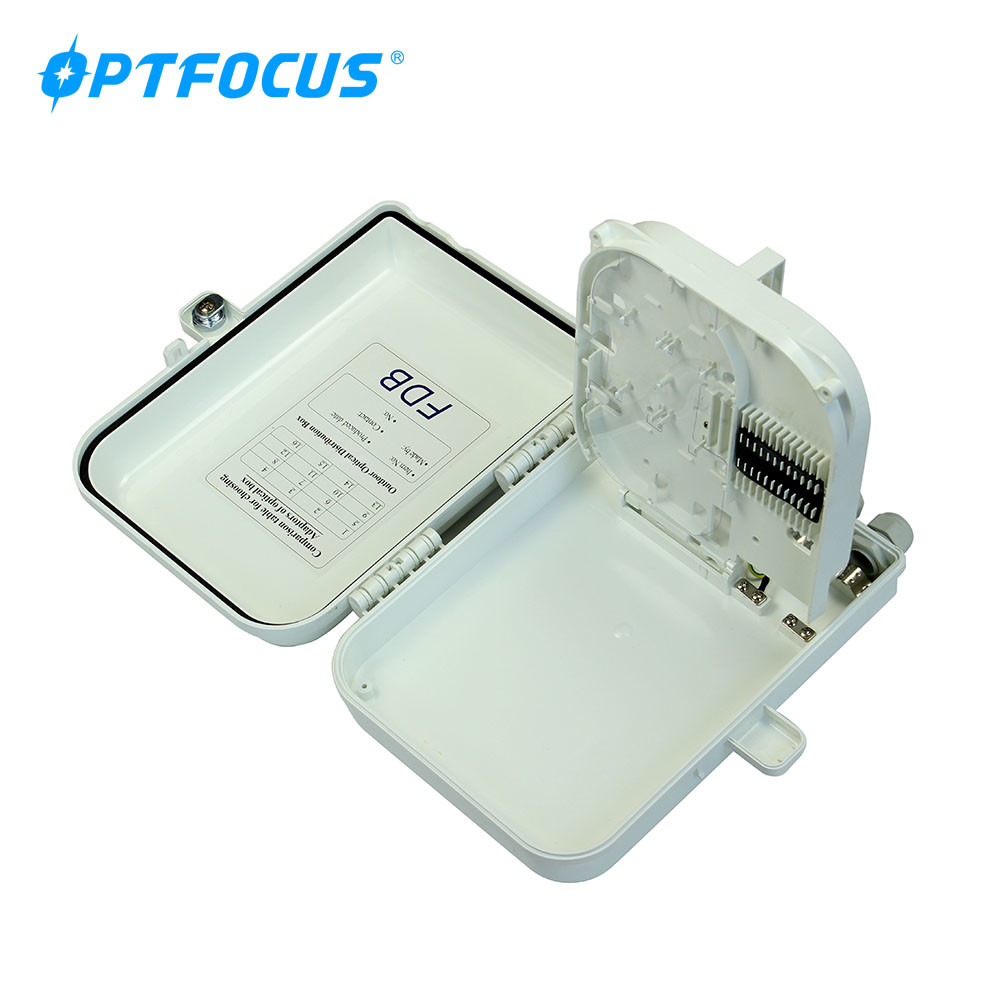

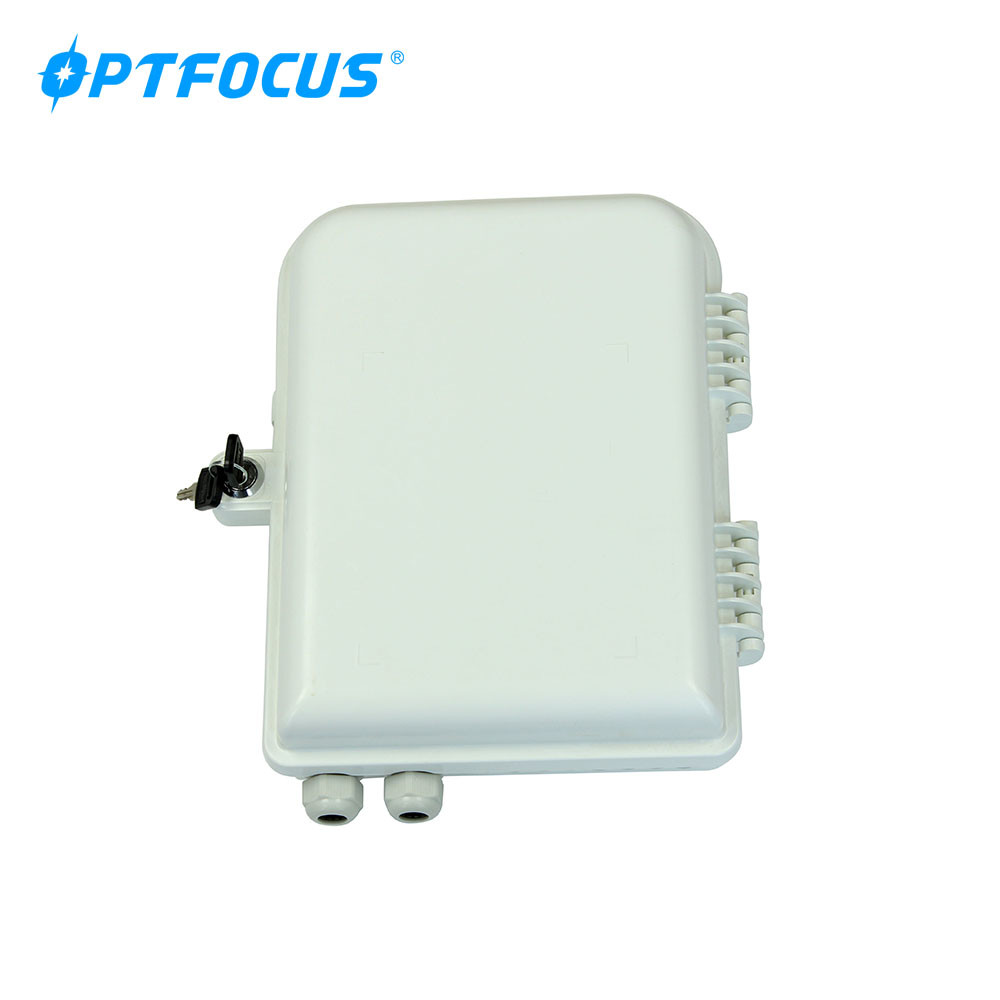

OFS-FTH-216D fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Modle Material Size Max Capacity Weight Color
OFS-FTH-216D1 PC +ABS

A*B*C(mm)

325*275*95

SC PLC 1.0kg White/black
16 Ports

2pcs 1x8(SC)

Mini type

OFS-FTH-216D2 PC +ABS

A*B*C(mm)

325*275*95

SC

16 Ports

PLC

2pcs 1x8(SC) caseete type

1.0kg White/black

Features
*Water-proof design with IP-66 Protection level.

*Integrated with splice cassette and cable management rods.

*Manage fibers in a reasonable fiber radius condition.

*Easy to maintain and extend the capacity.

*Fiber bend radius control more than 40mm.

*Suitable for the fusion splice or mechanical splice.

*2 pcs of 1*8 Splitter can be installed as an option.

*Efficient cable management.

*16 ports cable entrance for drop cable.
