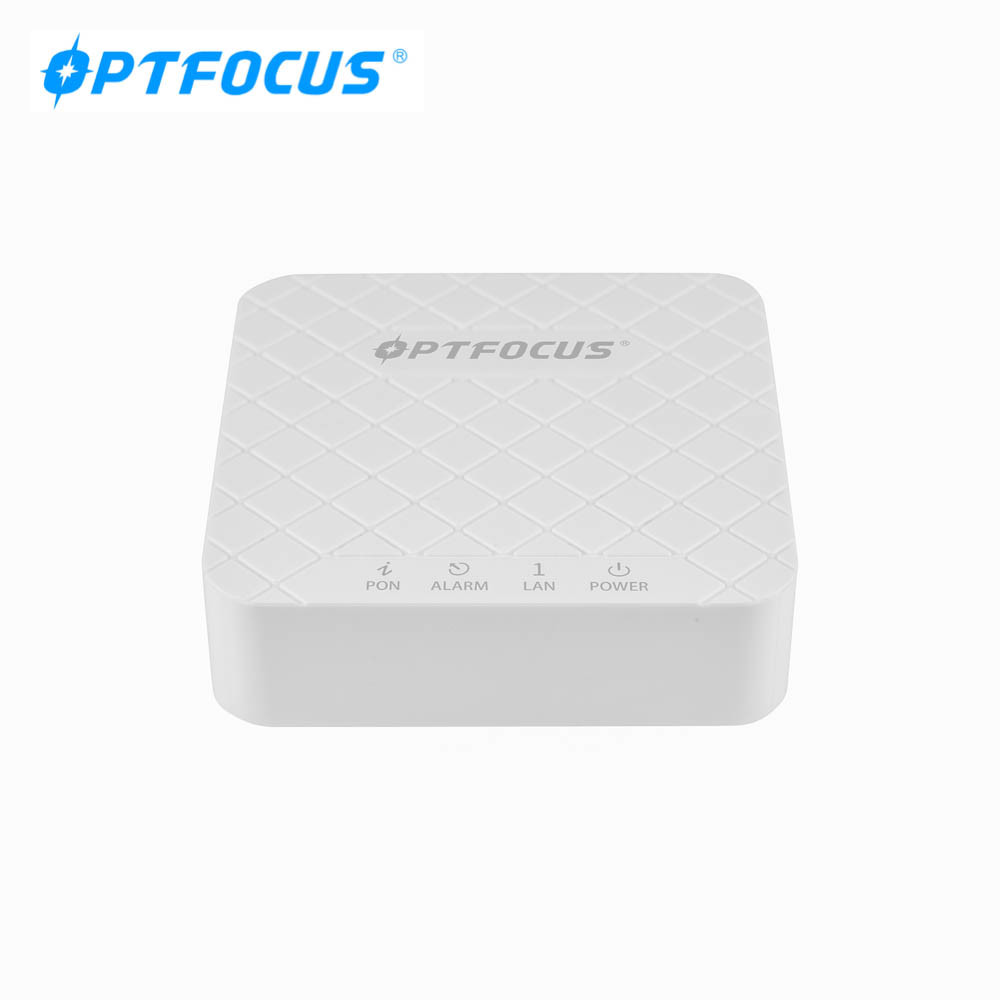

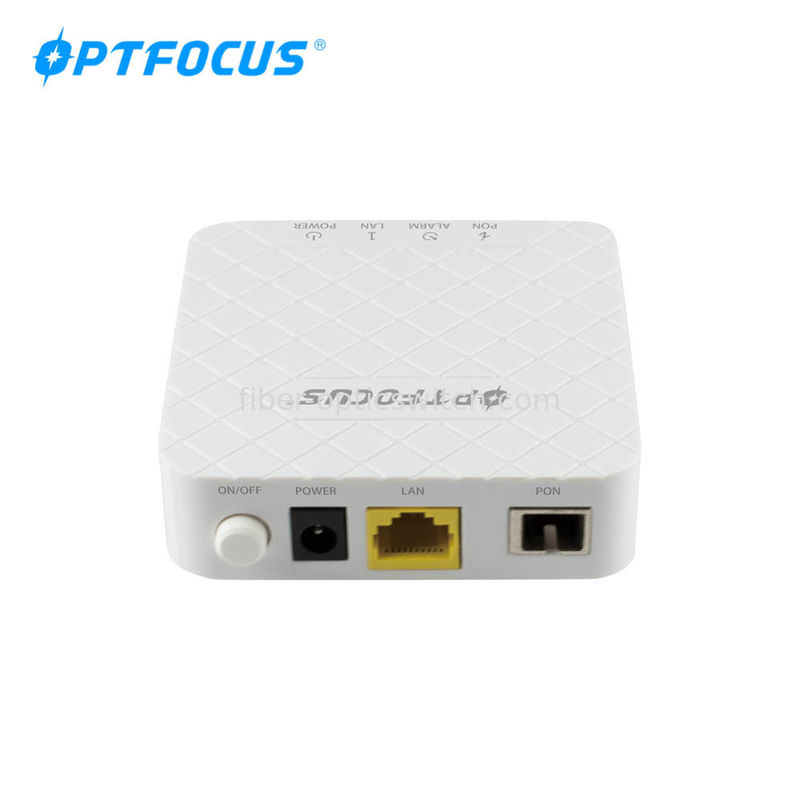

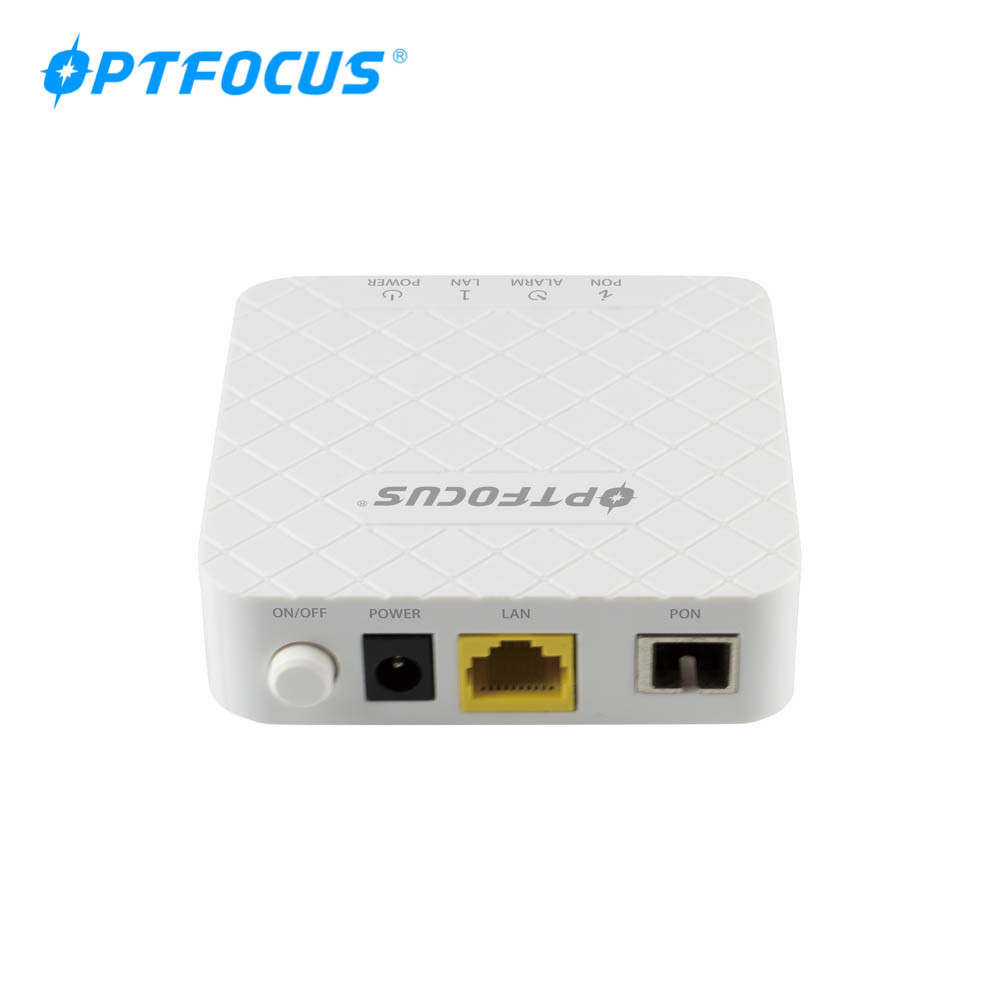

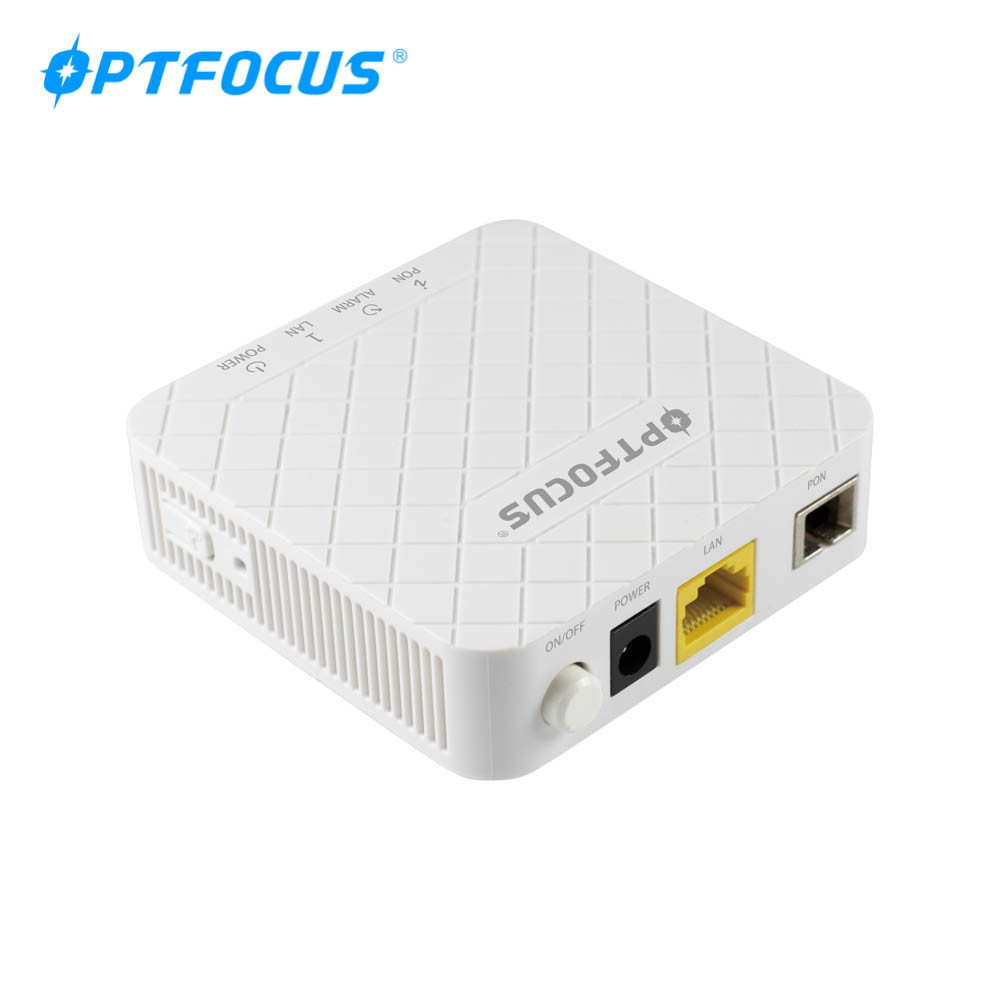

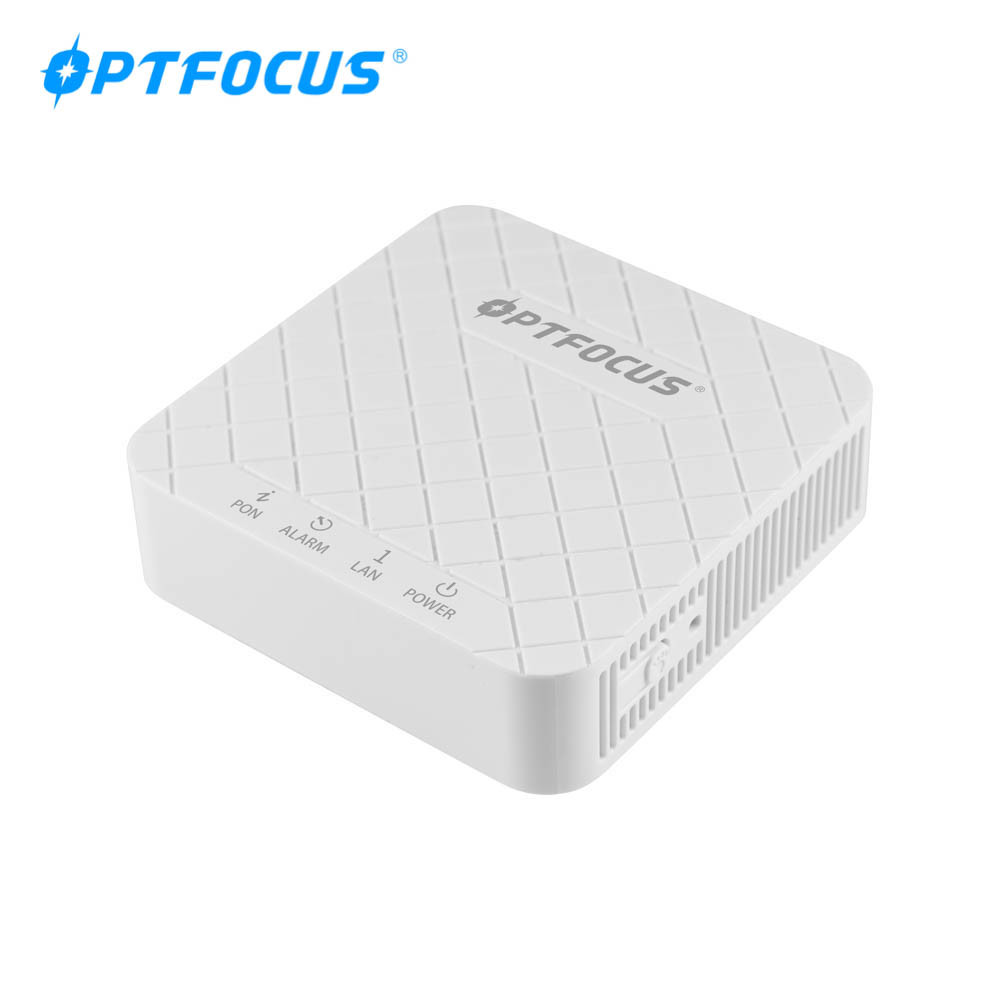

UPC Connector 5W Single Port HGU ZTE Gpon Epon Gepon Onu

Basic Information
Place of Origin: SHENZHEN CHINA
Brand Name: OPTFOCUS
Certification: CE,ROHS
Model Number: OFSX511F
Minimum Order Quantity: 1 pcs
Price: $7-10/UNIT EXW CHINA
Packaging Details: Netural packing 1PCS/BOX 0.2KG / 19*11*4cm 15.4KG / 80PCS/CNT / 48*43*37.5cm
Delivery Time: 5-8 workdays
Payment Terms: T/T, Western Union, paypal, alibaba trade assurance, Western Union
Supply Ability: 100000 pcs/month
Up-link Interface: 1 XPON Interface,SC Single Mode Single Fiber RX 2.488 Gbits/s Rate And TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s Rate And TX 1.244 Gbits/s(EPON) Rate Fiber Type:SC/UPC Optical Power: 0~4 DBm
Sensitivity: -28 DBm Fiber Connector: SC/UPC Connector (SC / APC Optional)
Down-link Data Interface: 1*10/100/1000M Auto-negotiation Ethernet Interface, RJ45 Interface Indicator LED: 4 Pcs
DC Supply Interface: Input+12V 0.5A Power: ≤5W
Operating Temperature: -5~+55℃ Weight: 0.24Kg(mainframe)
Mode: Bridge And Router Functions: Plug And Play
Application: FTTH KEYWORDS: Onu Gepon
High Light:

ZTE Gpon Epon Gepon Onu

,

HGU Epon Gepon Onu

,

5W Single Port OLT ONU

2020 factory suppy single port tr069 bridge router sfp module GEPON ONU huawei gpon

UPC Connector 5W Single Port HGU ZTE Gpon Epon Gepon Onu 0

Product description:

UPC Connector 5W Single Port HGU ZTE Gpon Epon Gepon Onu 1



Specification:

Tech parameters description



Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 4 pcs
DC supply interface input+12V 0.5A
Power ≤5W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃
Dimension(MM) 85*85*28mm(mainframe)
Weight 0.24Kg(mainframe)

Measurements:

UPC Connector 5W Single Port HGU ZTE Gpon Epon Gepon Onu 2



About competibility:

1) This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)

Company profile:

Advantage of our company :

① National High-tech enterprise certification;

② 11 years optical innovative& production team

③ fully advanced production line and QC system

④ products are highly cost effective, quality stable and reliable

⑤ good characteristics of exclusive exquisite design and abundant products series.

⑥ Professional One stop supply & service;

⑦ OEM&ODM available;

⑧ Reliable and Timely customer services;





Why choose us ?

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 11 years’ experience in global sales and services.

Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.



OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.



Our high quality products and outstanding service will help you win more market and customers.

UPC Connector 5W Single Port HGU ZTE Gpon Epon Gepon Onu 3
