Dual Mode Modem Router 1GE Xpon GPON OLT ONU

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE ISO
Model Number: OFSX711F
Minimum Order Quantity: 500 pcs
Price: 8.5 usd per unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month
Keywords: ONU Lan Port: 1GE
Wifi: Not Router: PPPOE&Bridge
PON: GPON And EPON Both Work Interface: 1*SC+1*RJ45
Size: 85*85*28mm Warranty: 12 Month
High Light:



Modem Router GPON OLT ONU


Dual Mode Gepon Gpon ONU

                          Modem router 1GE xpon dual mode gepon gpon ONU price


Looking for cheap price 1GE triple play service ONU router ? Try our model !


The OFSX711F XPON(GPON and EPON dual mode) ONU.It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.


It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.



It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements.

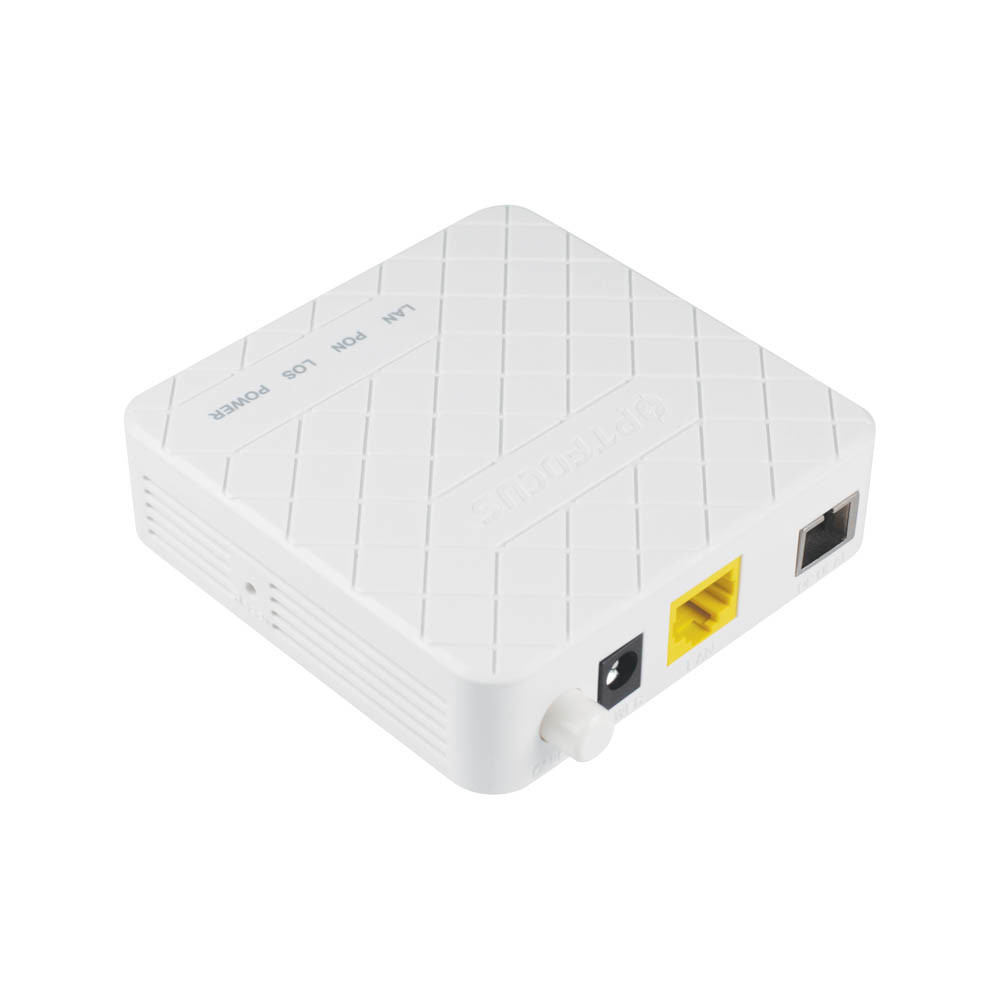

Dual Mode Modem Router 1GE Xpon GPON OLT ONU 0

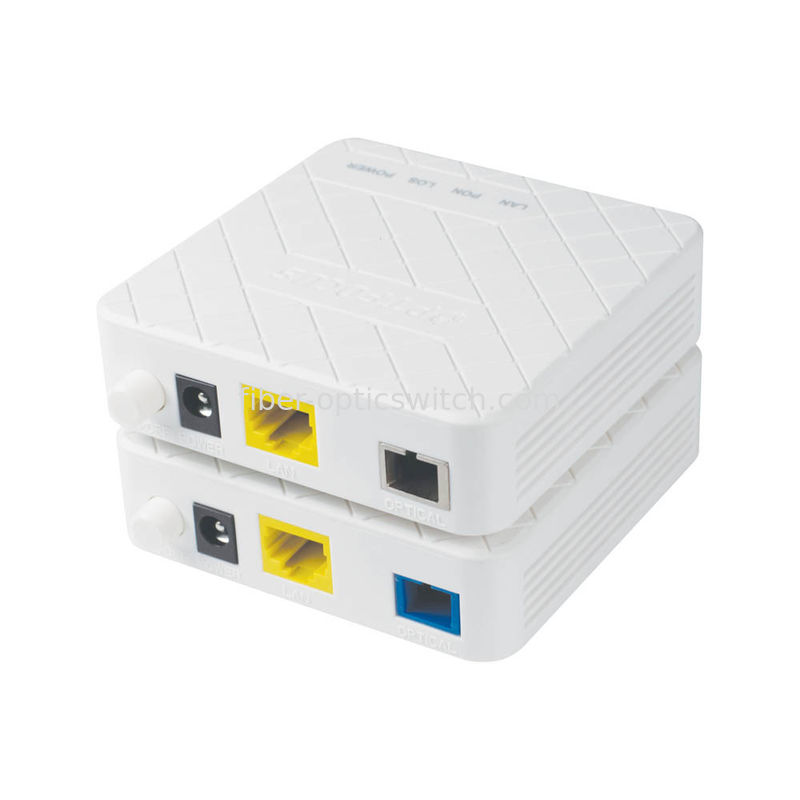

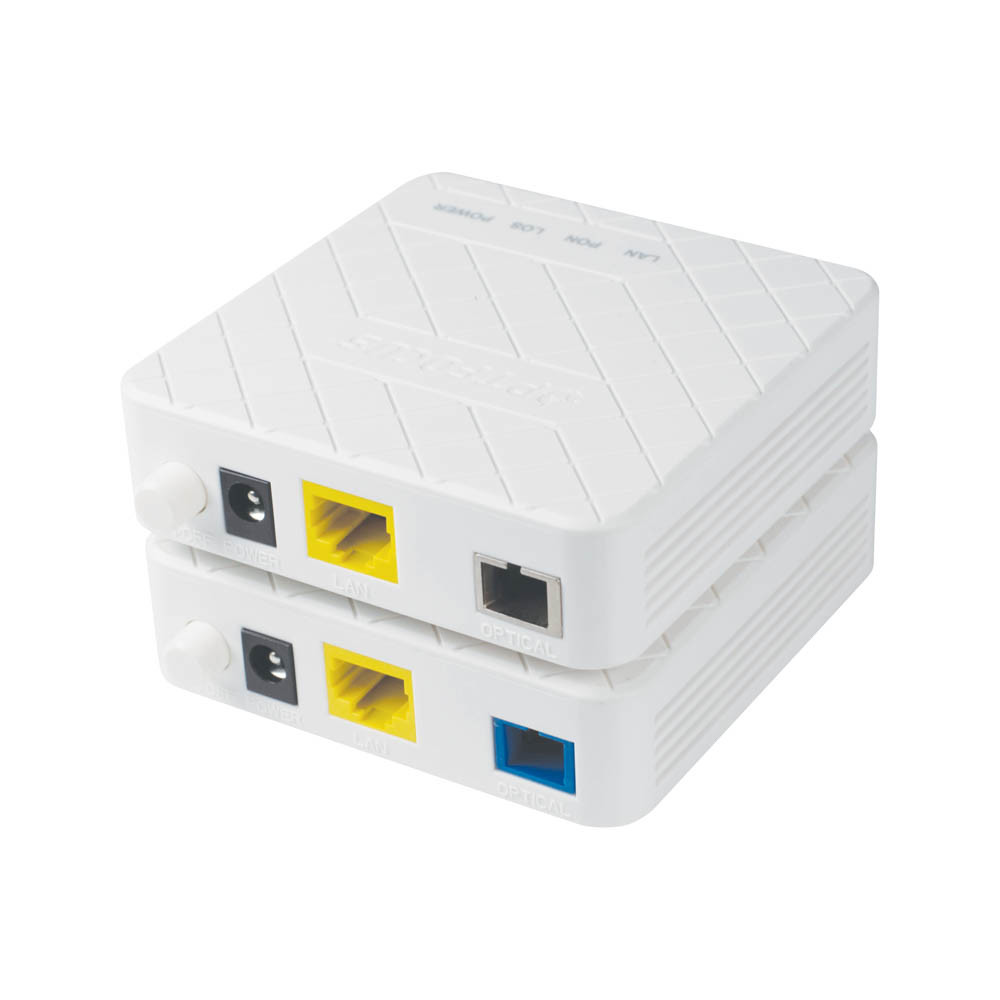

Dual Mode Modem Router 1GE Xpon GPON OLT ONU 1

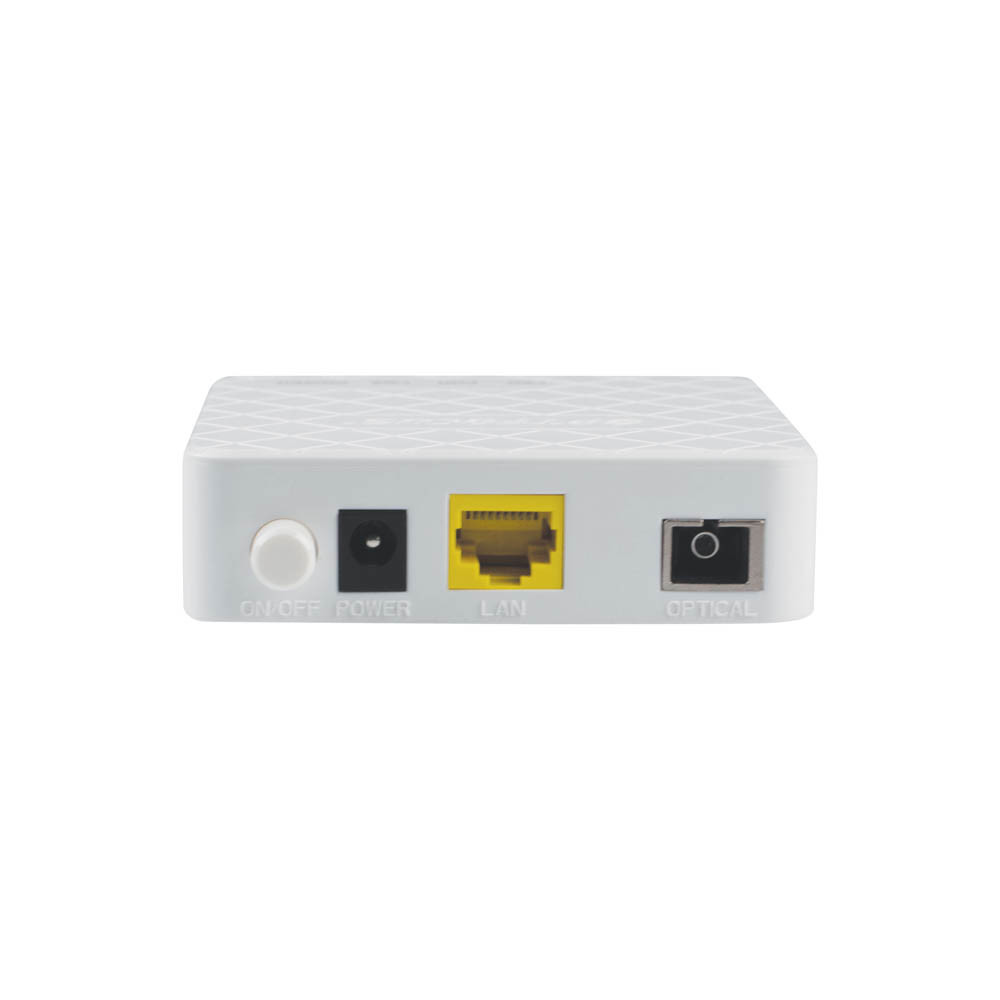

Dual Mode Modem Router 1GE Xpon GPON OLT ONU 2


Basic Characteristics


Tech parameters description


Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector
Down-link data interface 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 4 pcs
DC supply interface input+12V 0.5A
Power ≤5W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃
Dimension(MM) 85*85*28mm(mainframe)
Weight 0.24Kg(mainframe)
