| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE ISO |
| Model Number: | OFSX711 |
| Minimum Order Quantity: | 500 pcs |
| Price: | 9.3 usd per unit |
| Packaging Details: | Box/Carton |
| Delivery Time: | 7 days afer payment confirmed |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 pcs per month |
| Keywords: | ONU | Pon Mode: | XPON Works GPON And EPON Both |
|---|---|---|---|
| Fiber Port: | 1*SC(SCAPC Optional) | Compatible: | Most Brand OLT Compatible |
| Router: | PPPOE& Bridge | Chips: | RTL |
| Demension: | 85*85*28mm | Warranty: | 1 Year |
| High Light: | Xpon Gepon Gpon Onu,1GE Gepon Gpon Onu,EPON Wireless Modem Router |
||
wireless routers modem router 1GE xpon gepon gpon onu

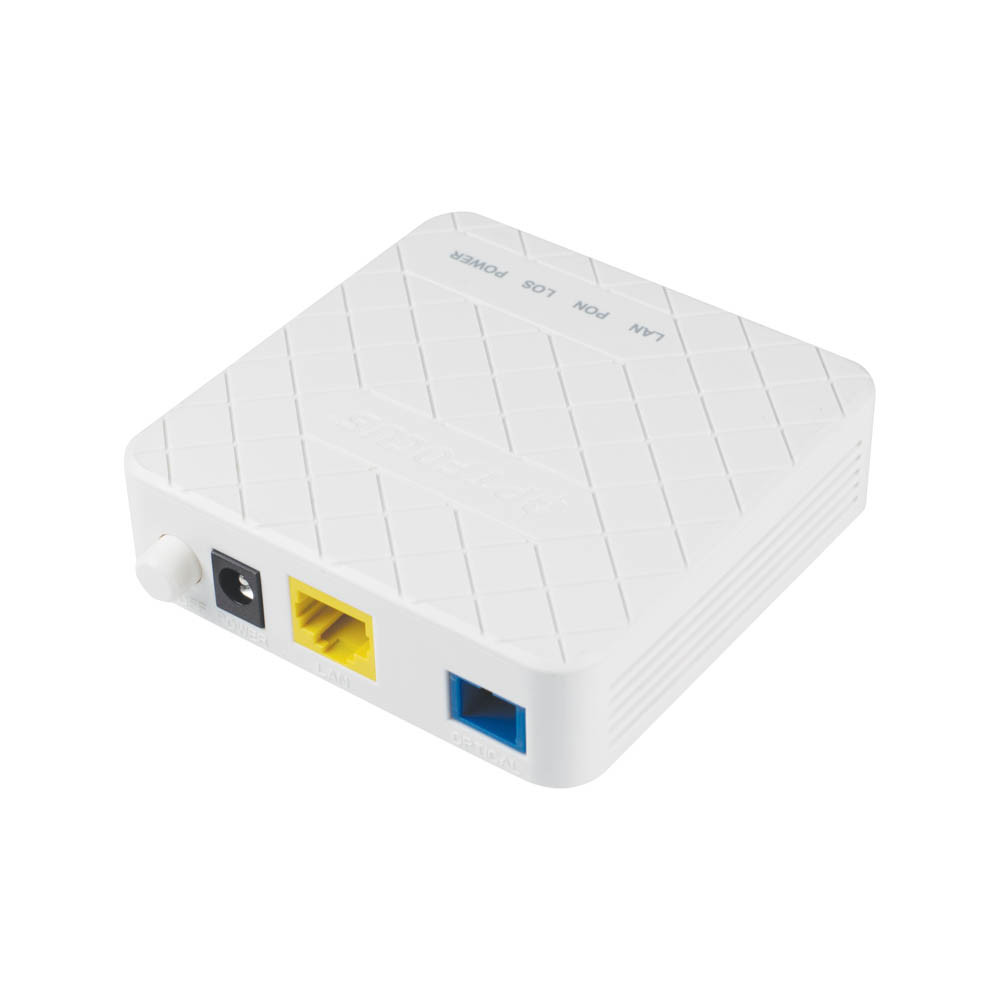

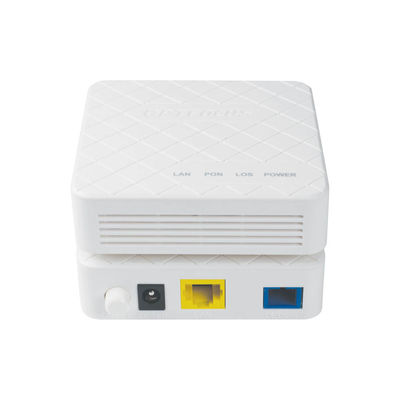

OFSX711 XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input＋12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 85*85*28mm(mainframe) |
| Weight | 0.24Kg(mainframe) |
Definition of indicator LED
| symbol | color | meaning |
| PWR | green | ON:successfully connect with power OFF:fail to connect with power |
| PON | green |
ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
| LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
| LOS | red |
Flicker: fail to connect with PON port OFF: detected fiber to input |
Features
Package Refer
