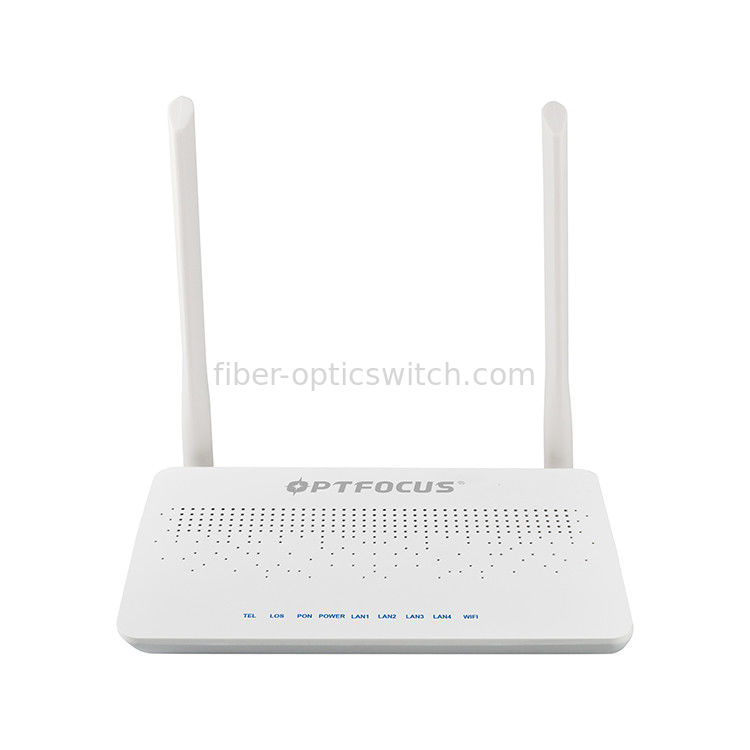

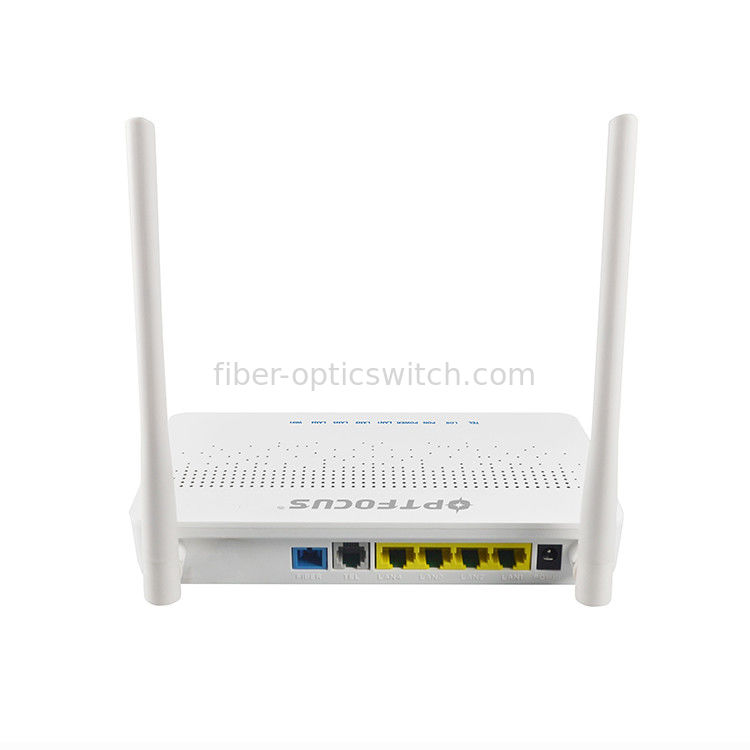

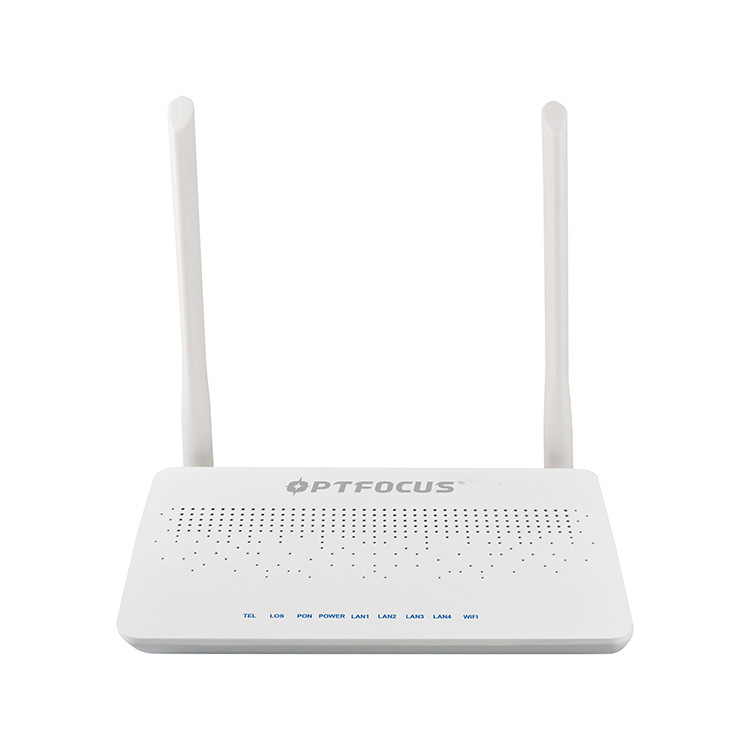

Comptible with ZTE/Fiberhome/Huawei OLT ONU 1GE+3FE+1POTS+WIFI+USB GPON

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSX624-VWU
Minimum Order Quantity: 100 pcs
Price: USD 20~23 / piece
Packaging Details: 1 piece / box
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal and so on
Supply Ability: 50000 pcs / month
Type: Dual Mode ONU Interface: 1GE+3FE+1POTS+USB+WIFI
Fiber Connector: SC/UPC Connector (SC / APC Optional) Sensitivity: -28 DBm
Operating Temperature: -5~+55℃ Dimension: 188*125*35mm

Comptible with ZTE/Fiberhome/Huawei OLT ONU 1GE+3FE+1POTS+WIFI+USB GPON



1GE+3FE Ethernet ports with Wifi USB VOIP XPON ONU for FTTH solution

OFSX624-VWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.


Basic Characteristics


Tech parameters description


Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 9 pcs
DC supply interface input+12V 1.5A
Power ≤10W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃


Weight 0.6Kg(mainframe)


VOIP Technical feature


Tech features description
Voltage and Current Monitoring The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC
Power Monitoring and Power Fault Detection

The XPON ONU monitoring functions are used to continuously protect against excessive power conditions

Thermal Overload Shutdown If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down







WIFI characteristics


Tech features description

2T2R Mode

5DBI Gain ,Frequency:2.4G

rate 300Mbps PHY rate
encryption methods WFA,WPA,WPA2,WAPI


Related products


Comptible with ZTE/Fiberhome/Huawei OLT ONU 1GE+3FE+1POTS+WIFI+USB GPON 0



1. Can i have a sample before bulk order?

Yes, we support to provide sample for you to test our product quality before your bulk order.


2. Can I use our own logo and label?
Yes, we could provide OEM service and manufacture the products with your own label.


3. What is the delivery time?
For usual products. We keep the stock, could send 1-3 days after the PO. For large quantities and special products, please check the delivery time with our sales representative.


We deal business in fiber optic equipment, our main products cover in EPON/GPON/XPON ONU, OLT, SFP Module, Fiber Switch, FTTH box, fiber patch cord, pigtails and so on. If you have any inquiry about these products, please don't hesitate to contact us. We shall be pleasured to service you to do win-win business.
