| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE ISO |
| Model Number: | OFSX624-CVW |
| Minimum Order Quantity: | 500 pcs |
| Price: | 28USD/UNIT |
| Packaging Details: | Box/Carton |
| Delivery Time: | 7-14 days after payment recieved |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| Keywords: | ONU | Specification: | 1GE+3FE+1POTS+CATV+WIFI |
|---|---|---|---|
| Fiber Type: | SC UPC | Wavelength: | Tx1310 Rx1490 |
| Distance: | 20KM | Working Temp: | 0 ~ 55 |
| Chipset: | ZTE | Mode: | Hybridge And PPPOE |
| Warranty: | 12 Months | Management: | WEB;CLI;OLT |
| Service: | Telephone Network Catv | Power Supply: | 12V |
| High Light: | CATV Ont Wifi Router,1GE 3FE Ont Wifi Router,SC UPC XPON ONU |
||

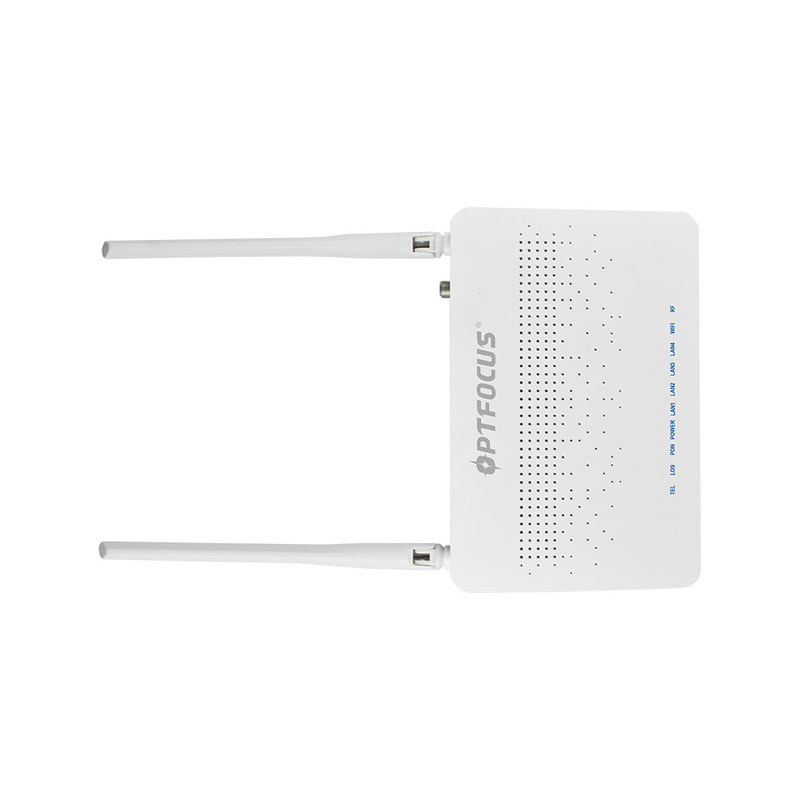

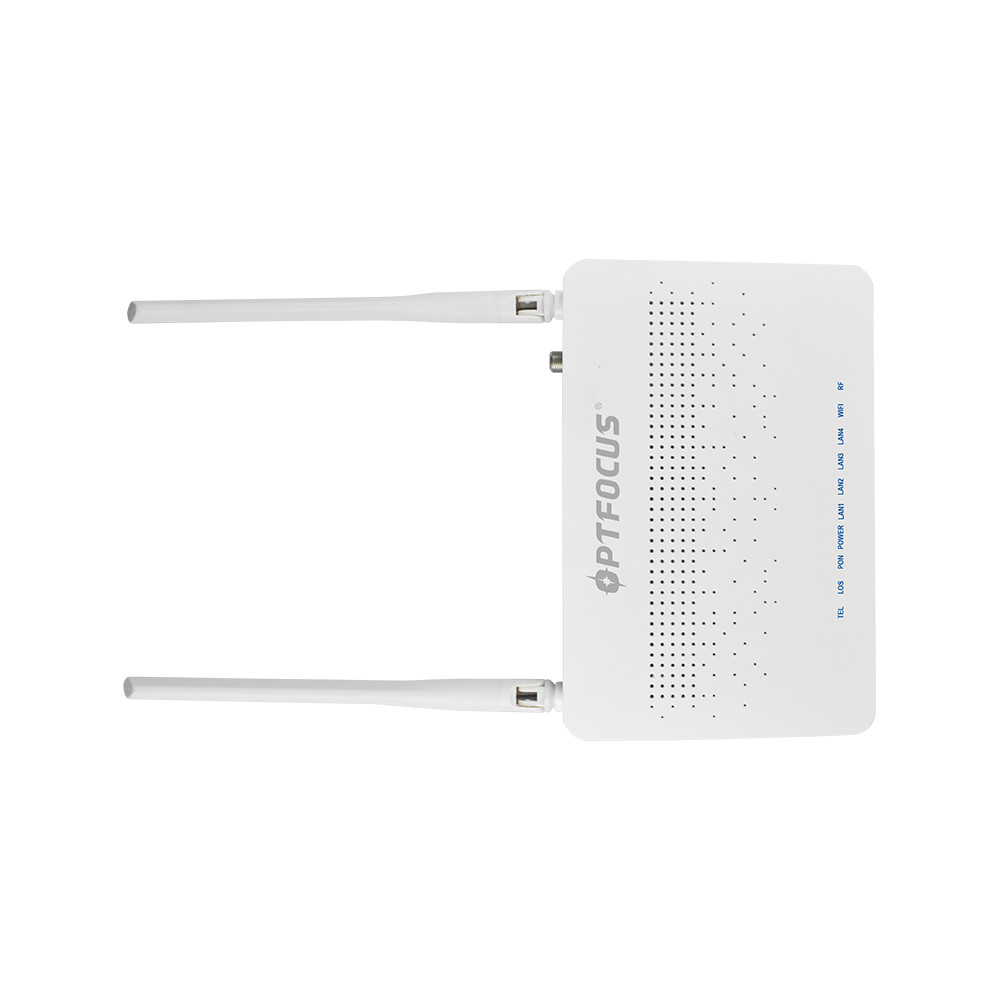

triple play service XPON ONU 1GE+3FE+1POTS+CATV+WIFI full function model same like huawei ont wifi router
LOOKING FOR ONU CHEAP PRICE ? FOLLOW US TO FIND THE BEST QUALITY PRODUCT !
STILL WORRY YOUR BRAND PROMOTION ? WE CAN HELP! OEM&ODM DEVELOP YOUR OWN MARKETING!
Description:
OFSX624-VW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490/1550nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 10 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 188*125*35mm(mainframe) |
| Weight | 0.5Kg(mainframe) |
WIFI characteristics
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
VOIP Technical feature
| Tech features | description |
| Voltage and Current Monitoring |
The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
|
Power Monitoring and Power Fault Detection |
The XPON ONU monitoring functions are used to continuously protect against excessive power conditions |
|
Thermal Overload Shutdown |
If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down |
CATV Technical features
| Tech features | description |
| Optical wavelength | 1540~1560nm |
| Optical input range | 0~-15 DBm |
| Optical return loss | ≥45 DB |
| Bandwidth | 45~1000 MHz |
| Flatness | 士 1 DB |
| RF output level | ≥72 dBuv |
| AGC control range | 0~-14 DBm |
| RF Output return loss | ≥14 DB |
| Output impedance | 75Ω |
| CNR | ≥50 DB |
| CTB | ≥60 DB |
| CSO | ≥60 DB |
Definition of indicator LED
|
symbol |
color |
meaning |
|
PWR |
green |
ON:successfully connect with power OFF:fail to connect with power |
|
PON |
green |
ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
|
LAN |
green |
ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
|
WIFI |
green |
ON: WIFI is running OFF:WIFI startup fail |
|
LOS |
red |
Flicker: fail to connect with PON port OFF: detected fiber to input |
|
TEL |
green |
ON: Register success |
|
OFF:Register fail |
||
|
CATV |
green |
Input optical power:0~ -15DBm |
|
Red |
Input optical power:≥0DBm,or -15DBm≥ |
Features
l Support IEEE802.11n 2T2R WiFi function
