Place of Origin: | China |
---|---|
Brand Name: | OPTFOCUS |
Certification: | CE ISO |
Model Number: | OFSX624-CW |
Minimum Order Quantity: | 500 pcs |
Price: | 27USD/UNIT |
Packaging Details: | Box/Carton |
Delivery Time: | 7-14 days after payment recieved |
Payment Terms: | T/T, Western Union |
Supply Ability: | 10000 pcs per month |
Keywords: | ONU | Specification: | 1GE+3FE+CATV+WIFI |
---|---|---|---|
Model: | XPON | Application: | FTTH Terminal |
Fiber Type: | SC UPC | Wavelength: | Tx1310 Rx1490 |
Distance: | 20KM | Warranty: | 1 Year |
High Light: | GPON XPON ONU,CATV XPON ONU,Onu Ont Epon Wifi Router |

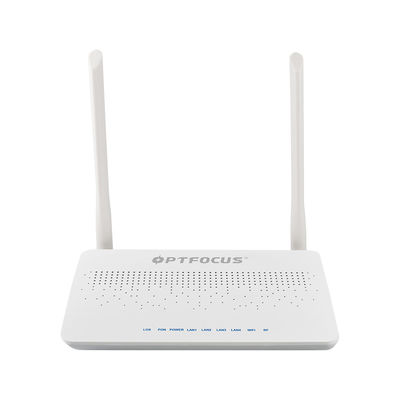

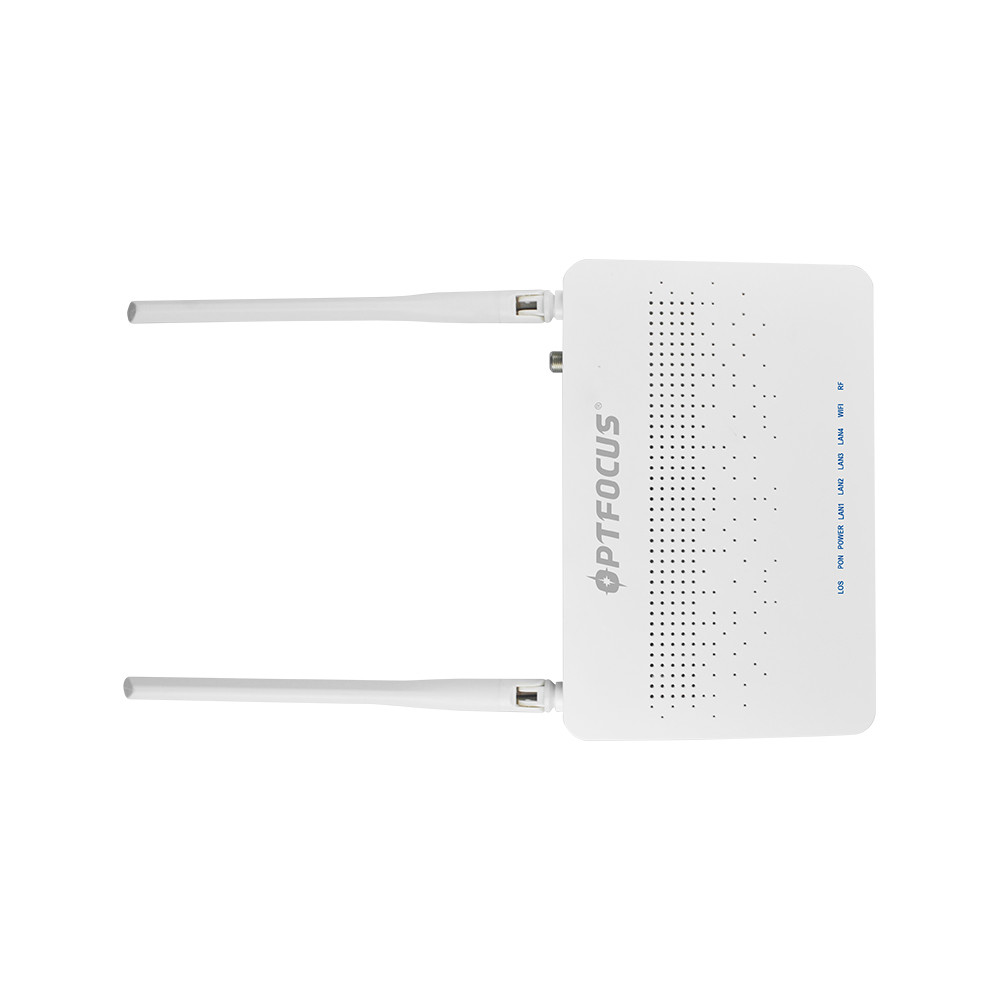

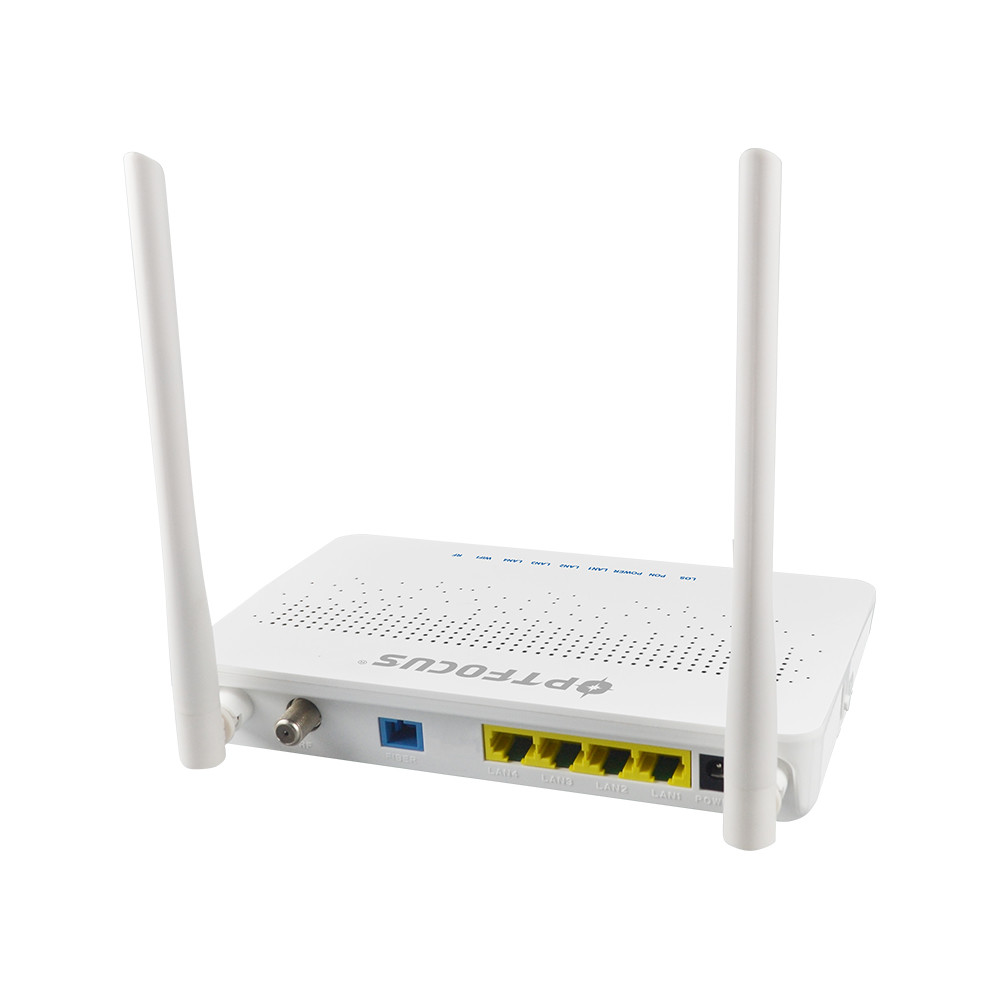

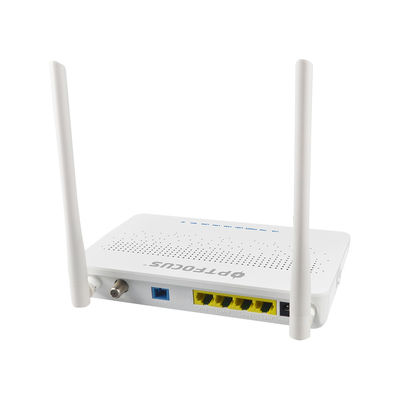

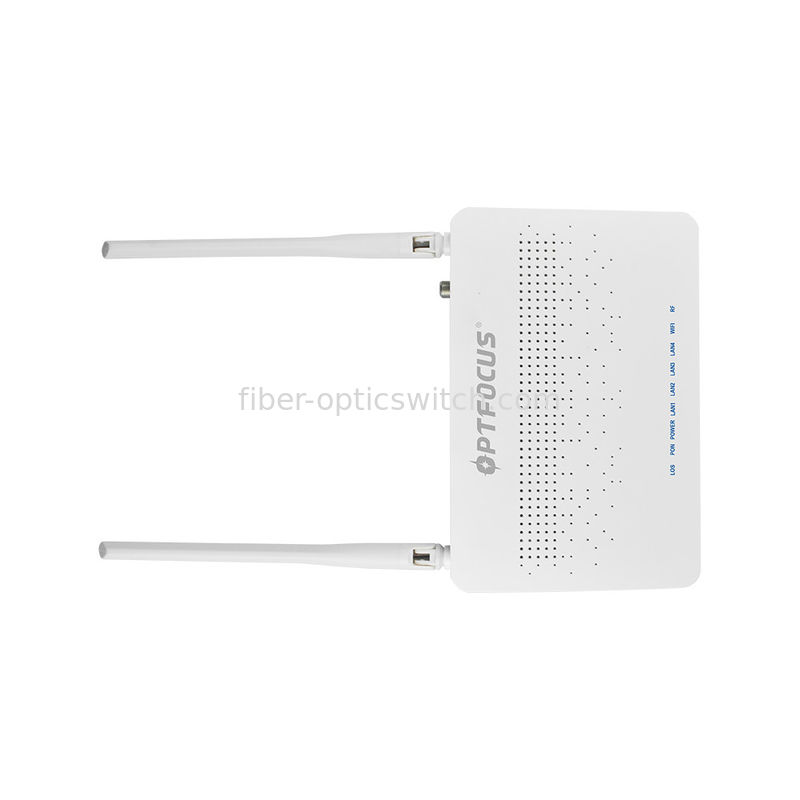

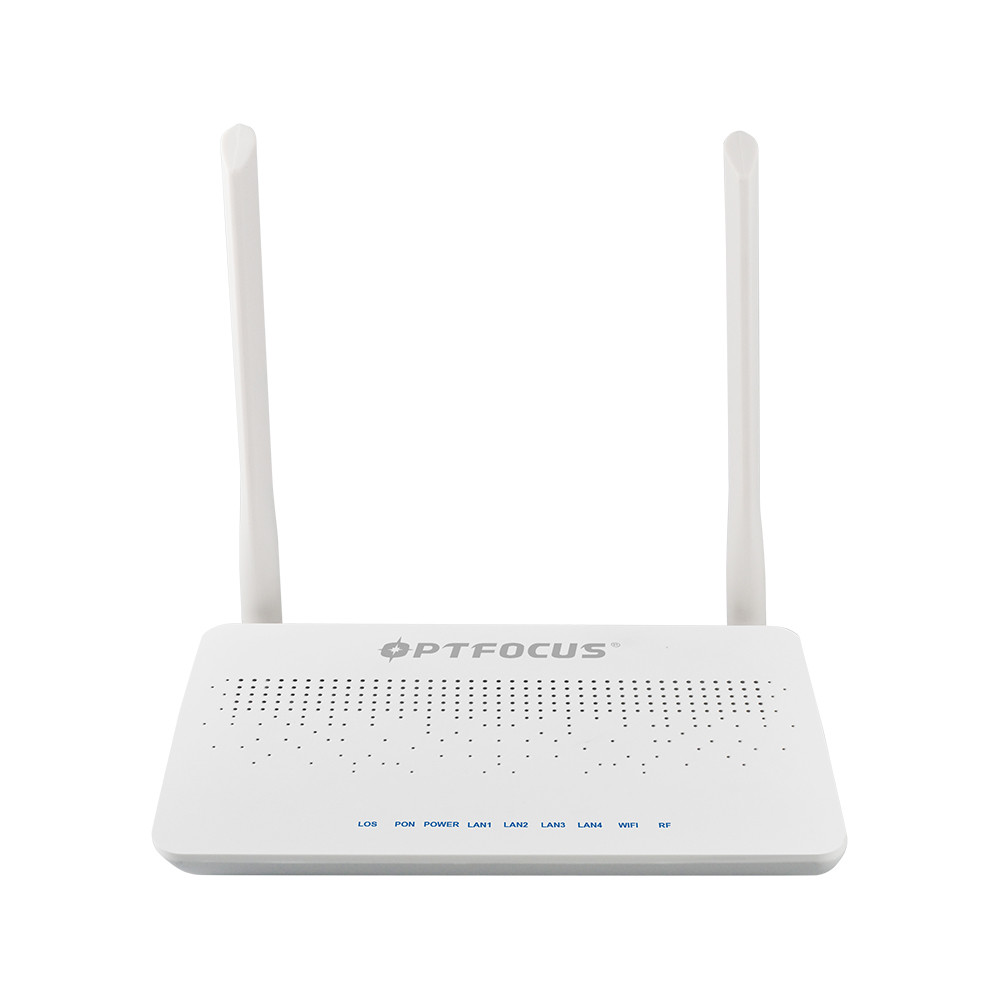

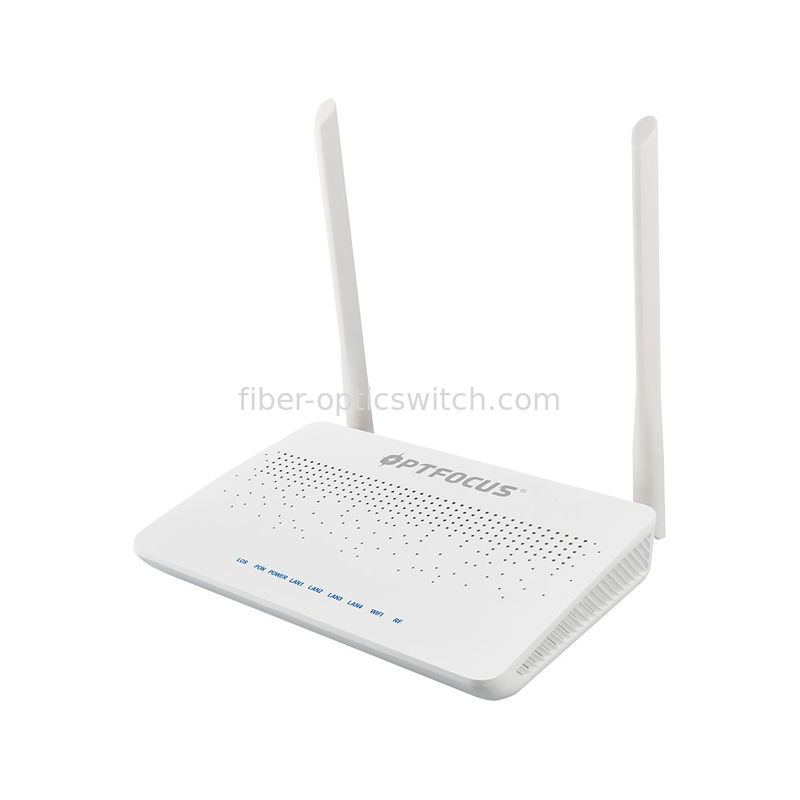

CATV wifi ONU 1GE+3FE EPON ONU same like HUAWEI HG8546 HS8145
Description:
OFSX624-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics
Tech parameters | description |
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
Wavelength(nm) | TX 1310nm,RX 1490/1550nm |
Fiber connector | SC/UPC connector (SC / APC optional) |
Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
Indicator LED | 9 pcs |
DC supply interface | input+12V 1.5A |
Power | ≤10W |
Operating temperature | -5~+55℃ |
Humidity | 10~85%(non-condensation) |
Storage temperature | -30~+70℃ |
Dimension(MM) | 188*125*35mm(mainframe) |
Weight | 0.5Kg(mainframe) |
WIFI characteristics
Tech features | description |
antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
rate | 300Mbps PHY rate |
encryption methods | WFA,WPA,WPA2,WAPI |
CATV Technical features
Tech features | description |
Optical wavelength | 1540~1560nm |
Optical input range | 0~-15 DBm |
Optical return loss | ≥45 DB |
Bandwidth | 45~1000 MHz |
Flatness | 士 1 DB |
RF output level | ≥72 dBuv |
AGC control range | 0~-14 DBm |
RF Output return loss | ≥14 DB |
Output impedance | 75Ω |
CNR | ≥50 DB |
CTB | ≥60 DB |
CSO | ≥60 DB |
Definition of indicator LED
symbol |
color |
meaning |
PWR |
green |
ON:successfully connect with power OFF:fail to connect with power |
PON |
green |
ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
LAN |
green |
ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
WIFI |
green |
ON: WIFI is running OFF:WIFI startup fail |
LOS |
red |
Flicker: fail to connect with PON port OFF: detected fiber to input |
TEL |
green |
ON: Register success |
OFF:Register fail |
||
CATV |
green |
Input optical power:0~ -15DBm |
Red |
Input optical power:≥0DBm,or -15DBm≥ |
