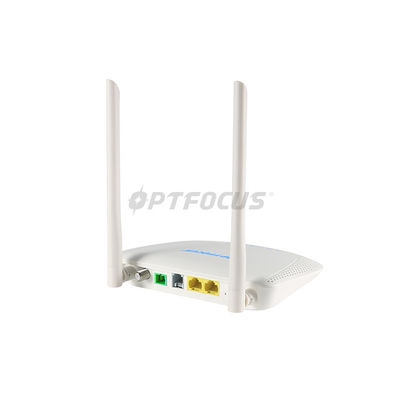

CATV Huawei ONT/ONU GPON EPON EchoLife HG8247 HG8247T Similar 1GE+1FE+CATV+WiFi ONU ONT

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE ISO
Model Number: OFSX622-CW
Minimum Order Quantity: 1 piece
Packaging Details: 1 piece / box
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50000 pcs / month
Product Name: EPON EPON ONU Fiber Connector: SC/UPC Connector
Wavelength(nm): TX 1310nm,RX 1490nm Operating Temperature: -5~+55℃
Storage Temp.: -30~+70℃ DC Supply Interface:: 12V 0.5A
Color: White Services: OEM&ODM
Application: FTTH FTTB FTTX Network,CATV/HFC/PON Warranty: 1 Year
High Light:

Wifi Router Gpon Epon Onu

,

1GE ONT ONU EPON

,

Wifi WDM CATV XPON ONU

FTTH RTL Chipset 2LAN+WiFi+CATV Compatible Huawei EPON/GPON/XPON ONU ONT



1GE+1FE Etheernet ports with WiFI WDM CATV XPON ONU for FTTH Solution

OFSX622-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.



Quick view

Notification:


About purchasing and shipping:

1) Products are in stock. Contact us and we will buy and ship directly.
2) Shipping cost is depend on address and nation. Please contact us to check the further cost.
3) Every carton includes 24 pcs of ONU device (Neutral type).
4) Shipping is clearly through express. There will be a little bit delay of status updating. Please be patient. Deliver time is about 5-10 workdays.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.



About competibility:

1) This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)



About products and service:

1) Sample No MOQ.
2) OEM & ODM services supply.
3) Connector: SC/APC
4) Power adaptor originally: EU.Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
5) Warranty: 1 year.





Especificação técnica

Tech parameters description
Up-link interface 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC
Optical power
:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 8 pcs
DC supply interface input+12V 1A
Power ≤7W
Operating temperature -5~+55
Humidity 10~85%(non-condensation)
Storage temperature -30~+70
Dimension(MM) 167*119*32mm(mainframe)
Weight 0.5Kg(mainframe)





WIFI Characteristic
Tech features description
antenna 2T2R Mode
5DBI Gain ,Frequency:2.4G
rate 300Mbps PHY rate
encryption methods WFA WPA WPA2 WAPI



CATV Technical features
Tech features description
Optical wavelength 1540~1560nm
Optical input range 0~-15 DBm
Optical return loss ≥45 DB
Bandwidth 45~1000 MHz
Flatness +- 1 DB
RF output level ≥72 dBuv
AGC control range 0~-14 DBm
RF Output return loss ≥14 DB
Output impedance 75Ω
CNR ≥50 DB
CTB ≥60 DB
CSO ≥60 DB




Packing:

0.5KG/PCS, 24PCS/ CTN,

48 * 43 * 38CM, 12KG/ CTN










Related products:

PON poster.jpg

Order information

Product Model Product description
OFSX611, OFSE611, OFSG611 1GE EPON/GPON/XPON (dual mode), 12V Power supply
OFSE622-W, OFSG622-W, OFSX622-W 1GE+1FE+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply
OFSE622-VW,OFSG622-VW, OFSX622-VW 1GE+1FE+Voice+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply
OFSE622-CW,OFSG622-CW, OFSX622-CW 1GE+1FE+CATV+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply
OFSE622-CVW,OFSG622-CVW, OFSX622-CVW 1GE+1FE+Voice+CATV+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply
