Place of Origin: | China |
---|---|
Brand Name: | OPTFOCUS |
Certification: | CE ISO |
Model Number: | OFSX611 |
Minimum Order Quantity: | 1 piece |
Price: | USD 9~12 / piece |
Packaging Details: | 1PCS/BOX, 80PCS/CTN |
Delivery Time: | 5-10 days, depend on the quantity |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Supply Ability: | 10000 pcs / month |
Weight: | 0.2kg | Serivices: | OEM&ODM |
---|---|---|---|
Wavelength: | Rx 1490nm,Tx 1310nm | Dc Power Supply: | +12V,0.5A |
Warranty: | 1 Year | Application: | FTTH FTTB FTTX Network |
Type: | GPON ONT,PON ONU MDU,EPON/GPON Adaptive | Services: | OEM ODM |
Packing: | 1PCS/BOX 0.2KG / 12.5*9.7*6cm 18.6KG / 90PCS/CNT / 48*43*37.5cm | Operating Temperature: | -5~+55℃ |
High Light: | epon onu,epon gpon |

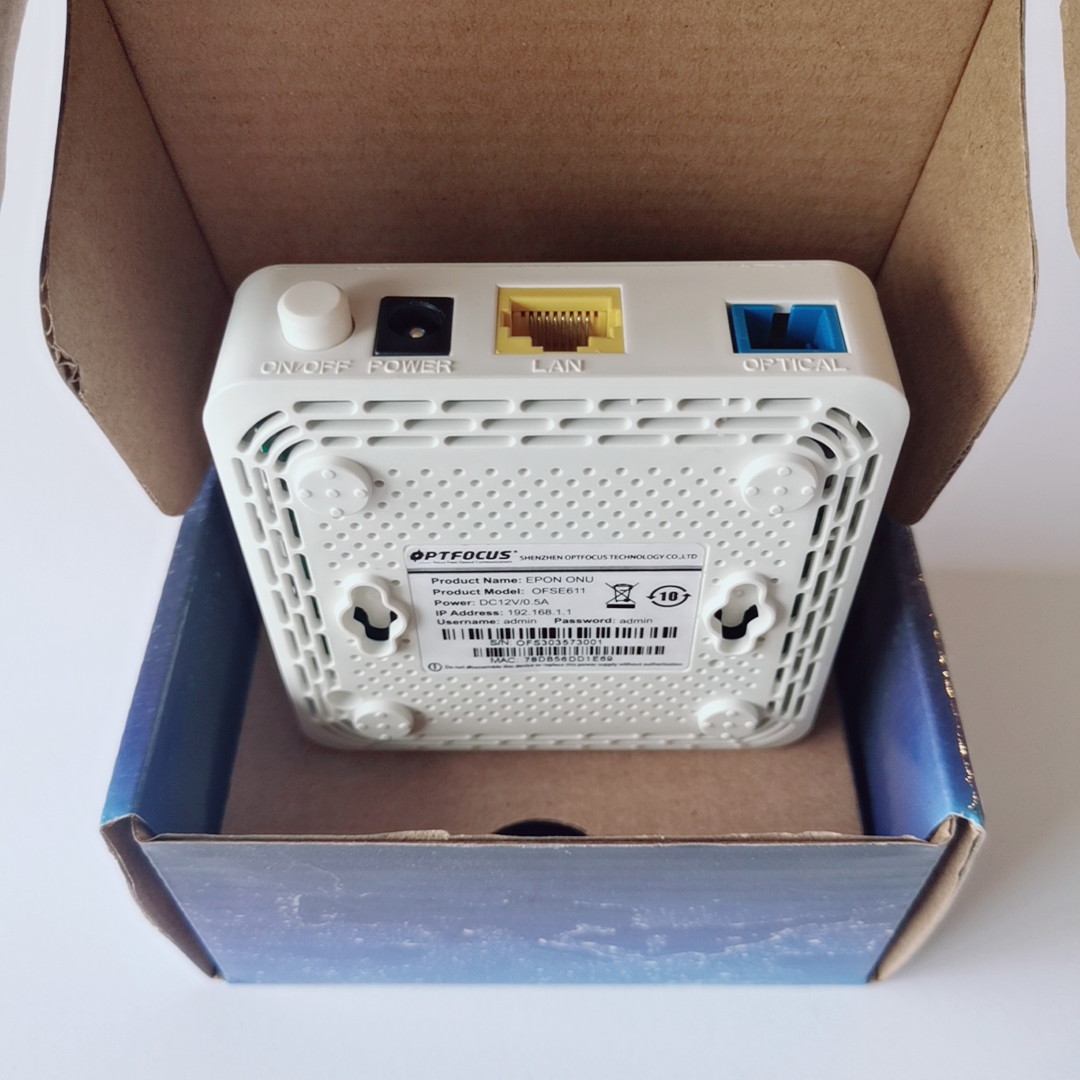

FTTH solution gpon epon onu 1.25g 2.5G 10G EPON GPON OLTdevice support onu ont
1GE Ethernet ports XPON ONU for FTTH solution
OFSX611 XPON(GPON and EPON dual mode) ONU. it can be used as GPON or EPON. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement.
Quick view
Notification:
About purchasing and shipping:
1) Products are in stock. Contact us and you will buy and ship directly.
2) Shipping cost is depend on address and nation. Please contact us to check the further cost.
3) Every carton includes 80 pcs of ONU device (Neutral type). Purchase order started with one carton.
4) Shipping is clearly through express. There will be a little bit delay of status updating. Please be patient. Deliver time is about 5-10 workdays.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.
About competibility:
1) This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)
About products and service:
1) Products support both bridge and router.
2) This products is NO branded. If need brand, please chat with us, we support OEM & ODM services
3) Connector: SC/UPC, if need SC/APC, please contact us, we also support.
4) For this model, we have two kind of design, BOSA & SFF. This one is made of BOSA solution ( Chat with us, if you need SFF)
5) Power adaptor originally: EU.Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
6) Warranty: 1 year.
Technical Specification
Tech parameters | description |
Wavelength(nm) | TX 1310nm,RX 1490nm |
Fiber connector | SC/UPC connector (SC / APC optional) |
Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
DC supply interface | input+12V 0.5A |
Dimension(MM) | 85*85*28mm(mainframe) |
Weight | 0.2Kg(mainframe) |
Packing: |
Netural packing 1PCS/BOX 0.2KG / 19*11*4cm 15.4KG / 80PCS/CNT / 48*43*37.5cm
Optfocus packing 1PCS/BOX 0.2KG / 12.5*9.7*6cm 18.6KG / 90PCS/CNT / 48*43*37.5cm
Without packing 1PCS/BOX 0.2KG / 8.5*8.5*2.8cm 150PCS/CNT /13.4KG / 48*43*37.5cm |
Power adptor | EU supply. (special requirements, please contact) |
MOQ | No MOQ |
Warranty | 1year |
OEM&ODM | YES (Products and Packing) |
Free of brand | 500piece |
Product Feature
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. |
Support DBA reporting mechanism request |
Support OAM (Link, Test, Loop back) maintenance function defined IEEE802.3ah |
Support the remote upgrade and download |
Support to save configured parameters if power down |
Support to configure the work mode at the user port |
Support MDI-MDIX automatic-detection at the user port. |
Support access authentication based on serial number |
Support access authentication based on MAC address |
Support 802.1Q VLAN |
Support rich QinQ VLAN functions and IGMP Snooping |
Support traffic rule to modify the related priority. |
Support to restore the factory settings Support the remote reset and reboot |
Support dying gasp outage alarm |
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. |
Packing:
Order Information
Product Model | Product description |
OFSX611 | 1GE XPON (dual mode), 12V Power supply |
OFSE611 | 1GE EPON, BOSA Type, 12V Power supply |
OFSE611F | 1GE EPON, SFU Type, 12V Power supply |
OFSG611 | 1GE GPON, BOSA Type, 12V Power supply |
OFSE622-W | 1GE+1FE+WIFI EPON, BOSA Type, 12V Power supply |
OFSE622-VW | 1GE+1FE+Voice+WIFI EPON, BOSA Type, 12V Power supply |
OFSE622-CW | 1GE+1FE+CATV+WIFI EPON, BOSA Type, 12V Power supply |
OFSE622-CVW | 1GE+1FE+Voice+CATV+WIFI EPON, BOSA Type, 12V Power supply |
OFSG622-W | 1GE+1FE+WIFI GPON, BOSA Type, 12V Power supply |
OFSG622-VW | 1GE+1FE+Voice+WIFI EPON, BOSA Type, 12V Power supply |
OFSG622-CW | 1GE+1FE+CATV+WIFI GPON, BOSA Type, 12V Power supply |
OFSG622-CVW | 1GE+1FE+Voice+CATV+WIFI GPON, BOSA Type, 12V Power supply |
OFSG622-W | 1GE+1FE+WIFI XPON, BOSA Type, 12V Power supply |
OFSX622-VW | 1GE+1FE+Voice+WIFI XPON, BOSA Type, 12V Power supply |
OFSX622-CW | 1GE+1FE+CATV+WIFI XPON, BOSA Type, 12V Power supply |
OFSX622-CVW | 1GE+1FE+Voice+CATV+WIFI XPON, BOSA Type, 12V Power supply |
LED Information
Symbol | Color | meaning |
PWR | Green | ON:successfully connect with power OFF:fail to connect with power |
PON | Green | ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
LAN | Green | ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
LOS | Red | Flicker: fail to connect with PON port OFF: detected fiber to input |
