Wifi 2.4g Ftth Gpon Olt

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Model Number: OFSX622-W
Minimum Order Quantity: 1 piece
Price: USD 16~20 / piece
Packaging Details: 1 piece / box
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50000 pcs / month
Application: Fiber To The Home Color: White
Product Name: GPON EPON ONU Fiber Connector: SC/UPC Connector
Wavelength(nm): TX 1310nm,RX 1490nm Operating Temperature: -5~+55℃
High Light:

gpon onu


epon gpon

optical network unit gpon epon onu 1ge 1fe 2.4g wifi dual mode

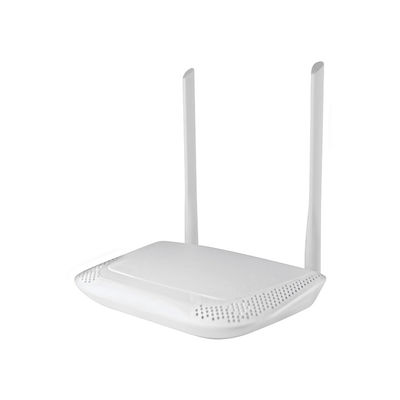

1GE+ 1 FE Ethernet ports with Wifi dual mode ONU Description:

OFSX622-W XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON And Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.


Tech parameters Description


Up-link interface

1 XPON interface, SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s (GPON), RX 1244 Gbits/s rate and TX 1.244 Gbits/s (EPON) rate Fiber type: SC/UPC

Optical power: 0~4 dBm Sensitivity: -28 dBm safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm, RX 1490nm
Fiber connector SC/UPC connector
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface

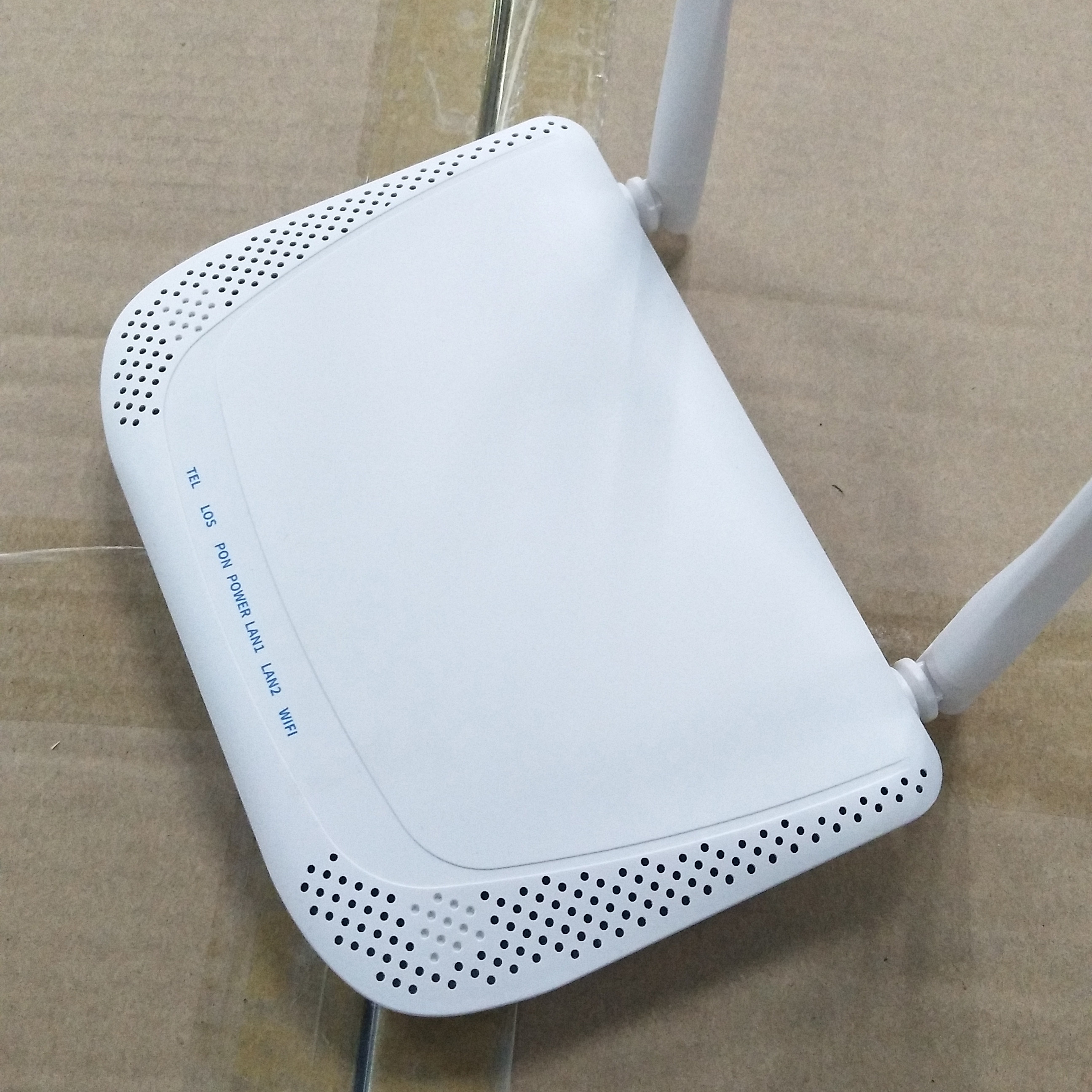

Indicator LED 6 pcs
DC supply interface Input+12V 1A
Power ≤7W
Operating temperature -5~+55°C
Humidity 10 to 85% (non-condensation)
Storage temperature -30~+70°C
Dimension(MM) 167*119*32mm(mainframe)
Weight 0.35Kg (mainframe)


Tech features Description

2T2R Mode

5DBI Gain, Frequency: 2.4G

Rate 300Mbps PHY rate
Encryption methods WFA, WPA, WPA2, WAPI


1) Put each box into pallets and properly wrapped for sea or air voyage.

2) Standard payment terms: T/T 30% DEPOSIT, 70% BANLANCE before shipping.

3) Online trade assurance order,all is up to you.

4) More payment terms could be provided(PAYPAL, WESTERN UNION, MONEYGRAM).


Payment and Shipment










Wifi 2.4g Ftth Gpon Olt 3



Wifi 2.4g Ftth Gpon Olt 4

Wifi 2.4g Ftth Gpon Olt 5




Contact us by email or submit your inquiry follow the introduction. We will get back to you in 12 hours with our favorable price and best consulting service.
