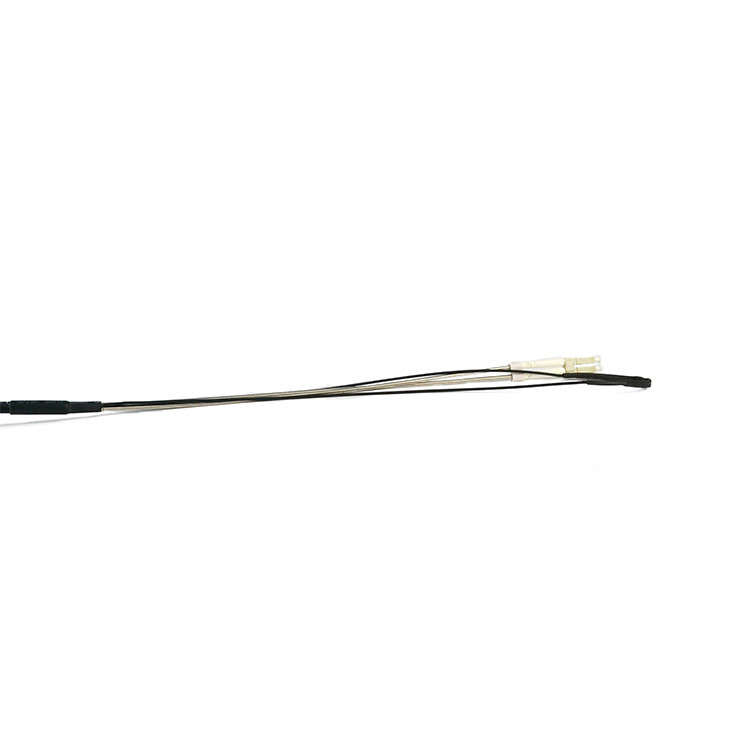

LC-SC Type FTTA Fiber To The Antenna CPRI Optical Waterproof Assembly Cable

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Model Number: OFSCPRI1
Minimum Order Quantity: 1 piece
Price: USD 5~10 / piece
Packaging Details: 1 piece / box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50000 pcs / month
Application: FTTA Color: Black
Product Name: FTTA CPRI Fiber Type: LC-SC
Endurance: 500 Matings Change Of Temperature: -25°C To +70°C, 12 Cycles
High Light:

ftth drop cable

,

ftta fiber

FTTA Fiber To The Antenna FTTA CPRI Optical Waterproof Assembly Cable







Application
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH.
3.Deployment in Remote Radio Head cell tower applications.

Features
1.Easily add/install jumper cables for a future expansion.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Flexibility with small bending radius and excellent cable routing properties.
5.End-face geometry and quality superior than IEC and Telcordia standards.
6.The material in the jumpel cable are all-weather and UV-resistant.
7.Mechanical performance: IEC 61754-20 & IEC 61754-4 standard.
8.RoHS and REACH materials compliant.



Connector Types

Type Reference Note

LC

IEC 61754-20

Single mode duplex

    APC: Green connectors , Green boots

    UPC: Blue connectors , White boots

Multimode duplex     UPC: Grey Connectors , White boots

SC

IEC 61754-4

Single mode simplex

APC: Green connectors, Green boots

UPC: Blue connectors, Blue boots

Multimode simplex     UPC: Grey Connectors, Grey boots





Patch cord versions
Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0<L≤20 +10/-0
20<L≤40 +15/-0
L>40 +0.5%L/-0



Mechanical Characteristics



Test Conditions Reference
Endurance 500 matings IEC 61300-2-2
Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
Cable retention 400N (main cable); 50N (ranch part) IEC 61300-2-4
Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
Fall 10 drops, 1m drop height IEC 61300-2-12
Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part) IEC 61300-2-42
Cold -25°C, 96h duration IEC 61300-2-17
Dry heat +70°C, 96h duration IEC 61300-2-18
Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
Humidity +40°C at 93%, 96h duration IEC 61300-2-19



PAYMENT & SHIPMENT

1) Put each box into pallets and properly wrapped for sea or air voyage.

2) Standard payment terms: T/T 30% DEPOSIT,70% BANLANCE before shipping.

3) Online trade assurance order,all is up to you.

4) More payment terms could be provided(PAYPAL,WESTERN UNION,MONEYGRAM).
