| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE , RoHS |
| Model Number: | OFSE611-W |
| Minimum Order Quantity: | 3 pcs |
| Price: | 12-20 USD |
| Packaging Details: | 85x85x25mm |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 piece per one week |
| Wavelength: | Tx 1310nm, Rx 1490nm | Upstream PON Interface: | 1 EPON Interface, SC Single-mode/single-fibre, Symmetric 1.25Gbps, 1*WIFI |
|---|---|---|---|
| DC Power Supply: | +12V, External AC-DC Power Adaptor | Chipset: | Zte Chipset |
| Power Switch: | 1 | Operating Temp: | -5~+55℃ |
| Operating Humidity: | 10~90%(non-condensed) | Dimension: | 83mm*83mm*25mm(length*width*height) |
| Net Weight: | 0.24Kg | Farthest Distance: | 20km Between OLT And ONU |
| Optical Interface: | SC/UPC Connector | ||
| High Light: | epon onu,gpon onu |
||

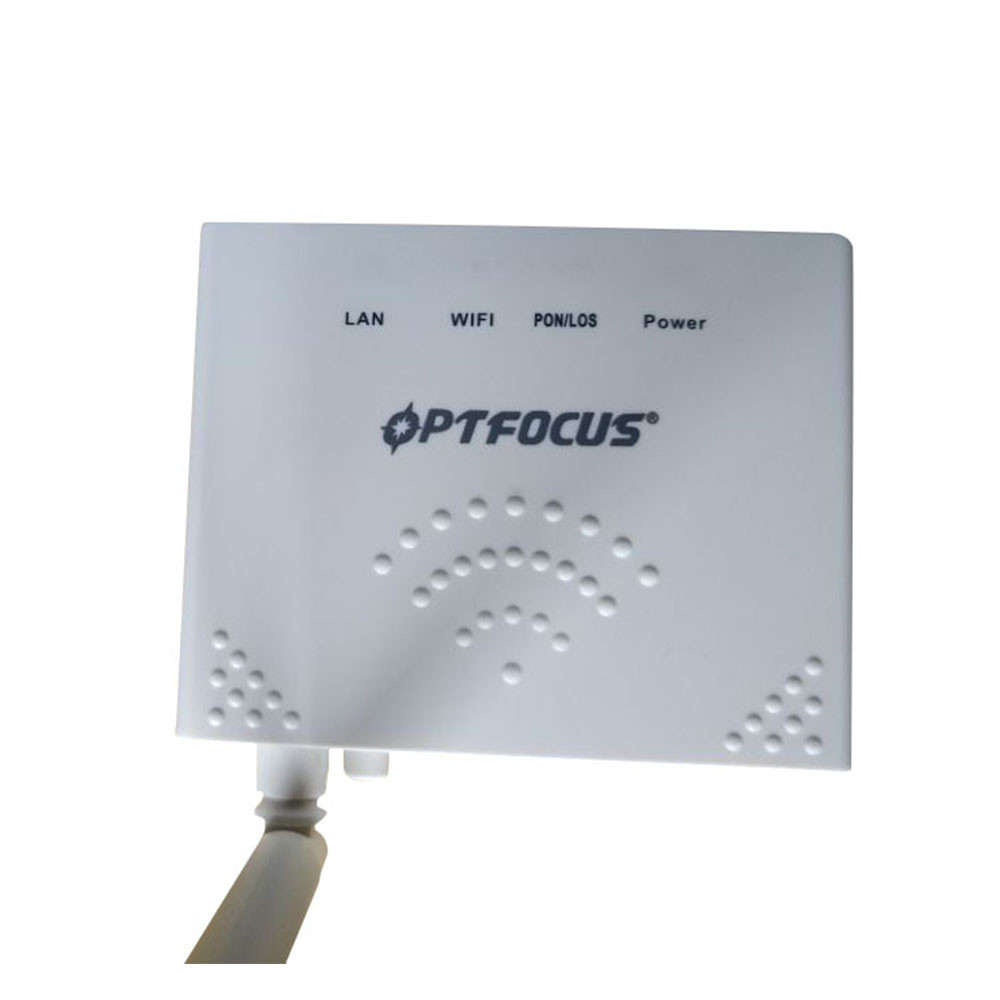

Most popular & high quality FTTH 1GE Ethernet ports with WiFi EPON ONU for office use
| Technical items | Description |
| Upstream PON interface | 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps, 1*WIFI |
| Farthest distance | 20km between OLT and ONU |
| Optical interface | SC/UPC connector |
| Downstream LAN interface | 1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
| Layer 2/3 switch | Centralized OLT management based on OAM |
| WEB,CLI | |
| Upgrade software remotely | |
| Support to save configuration parameters when power down | |
| WIFI | Integrated 802.11b/g/n |
| Support WEP and WPA/WPA2 security protocols | |
| Management maintenance | Centralized OLT management based on OAM |
| WEB,CLI | |
| Upgrade software remotely | |
| Support to save configuration parameters when power down | |
| Hardware information | |
| Indicators | 5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
| DC power supply | +12V, external AC-DC power adaptor |
| Chipset | zte chipset |
| Operating condition | Operating temp: -5~+55℃ |
| Operating humidity:10~90%(non-condensed) | |
| Storing condition | Storing temp: -30~+60℃ |
| Storing humidity:10~90%(non-condensed) | |
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Completely compatible with EPON international standard IEEE802.3ah/802.3-2005
Support China Telecom EPON CTC3.1 standard and expand OAM
Support triple churning encryption request
Support DBA reporting mechanism request
Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
Support the remote upgrade and download
Support status detection and fault report
Support to save configured parameters if power down
Support to configure the work mode at the user port
Support MDI-MDIX automatic-detection at the user port.
Support data encryption and decryption
Support access authentication based on serial number
Support access authentication based on MAC address
Support 802.1Q VLAN
Support rich QinQ VLAN functions and IGMP Snooping
Support traffic rule to modify the related priority.
Support to restore the factory settings
Support the remote reset and reboot
Support dying gasp outage alarm
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Here is package box dimension of 1 port EPON ONU for your reference.
size for 1 port EPON ONU: 185x110x40mm
