| Place of Origin: | GUANGDONG, CHINA |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE、RoHS、FCC |
| Model Number: | OFS-IWSF2T6A/B-20 |
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiable |
| Packaging Details: | 20 pcs per carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Supply Ability: | 6000 pcs per week |
| Input Voltage: | DC10~58V (dual Power Redundancy Backup) | Housing: | IP40 Protection Grade, DIN Rail Type, Metal Aluminum, No Fan Design |
|---|---|---|---|
| Ports Quantity: | 8 | Standard: | IEEE 802.3、IEEE 802.3u 、IEEE 802.3I、IEEE 802.3z、IEEE 802.3at |
| MAC: | 1K | Buffer: | 512M |
| Delay Time: | <3μs | Relative Humidity: | 5~95% (no Frost) |
| MTBF: | 100,000 Hour | Weight: | 0.85Kg |
| High Light: | 5 port industrial ethernet switch,industrial gigabit switch |
||
Fast industrial fiber switch / unmanaged Ethernet switch 2 100M fiber ports 6 10 / 100M rj45 ports
OFS-IWSF2T6A/B-20
Product description
The product is an unmanaged industrial level Ethernet switch, with 2 *100M Fiber port, 6 *10/100Base-T adaptive Ethernet interface RJ45. It help users to realize the Ethernet data exchange, convergence and long-distance optical transmission function. The equipment has the advantages of no fan, low power consumption, easy to use, small size, simple maintenance and so on. Product design in line with the Ethernet standard, add lightning protection, anti-static protection measures, -40 DEG C ~ +85 wide range of working temperature, stable and reliable performance. The device can be widely used in intelligent transportation, telecommunications, security, finance and securities, customs, maritime, electric power, water conservancy and oil fields and other broadband data transmission.
Key Features
Input voltage: DC10~58V (dual power redundancy backup)
Working temperature: -40 ℃~ + 85℃
Housing: IP40 protection grade, DIN rail type, metal aluminum, no fan design
Inspection report: through the Ministry of public security inspection report, CCC/FCC/CE/ROHS
Specifications
Ports quantity: 8
Fiber Ports: Two 100BaseFX ports (SC/ST/FCconnector, optional)
RJ45:Six 10/100BASE-T RJ45
Transmission mode: full duplex mode
standard:IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE 802.3at
Application level:L2
backplane bandwidth:1.6Gbps
Packet forwarding rate:1.19Mpps
MAC: 1K
Buffer:512M
delay time:<3μs
Exchange: Store - forward
LED
Power
TX,FX(Link/ACT)
Housing: metal material
Cooling: natural cooling, no fan
Dimensions: 143 x 104 x 48mm (wide x deep x high)
weight: 0.85Kg
Installation mode: DIN card rail type
Operating temperature: -40℃~ +85 ℃
Storage temperature: -40 ℃ ~ +85℃
Relative humidity: 5~95% (no frost)
Transmission distance twisted pair: 100m (using CAT5e, CAT6 network cable))
transmission distance
Twisted pair: 100m (CAT5e, CAT6)
Multi-mode: 2km
Single-mode: 20, 40,60, 80,100Km,optional
MTBF:100,000 hour
Power

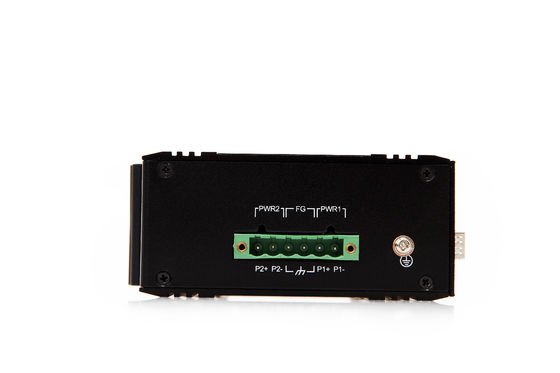

Input voltage: DC10~58V (dual power redundancy backup)
Access terminal: Phoenix terminal
Power (full load) <3W
Warranty period: 5 years
Certification: Ministry of public security inspection report,CCC , CE,FCC, RoHS
Product front panel
Ordering Information
| Model | Product description |
| OFS-IWSF2T6A/B-20 | 2* 100M fiber ports(SC single fiber 1310/1550nm),6* 10/100Base-T RJ45 |
| OFS-IWSF2T6A/B-XX | 2* 100M fiber ports(SC single fiber 1310/1550nm),6* 10/100Base-T RJ45 ”xx” represent distance(Unit :KM) |
| OFS-ISF2T6-XX | 2* 100M fiber ports(SC dual fiber 1310/1550nm),6* 10/100Base-T RJ45 ”xx” represent distance(Unit :KM) |
| OFS-PE-IWSF2T6A/B-XX | 2* 100M fiber ports(SC single fiber 1310/1550nm),6* 10/100Base-T RJ45,with POE function; ”xx” represent distance(Unit :KM) |
| OFS-PE-ISF2T6-XX | 2* 100M fiber ports(SC dual fiber 1310/1550nm),6* 10/100Base-T RJ45,with POE function; ”xx” represent distance(Unit :KM) |
