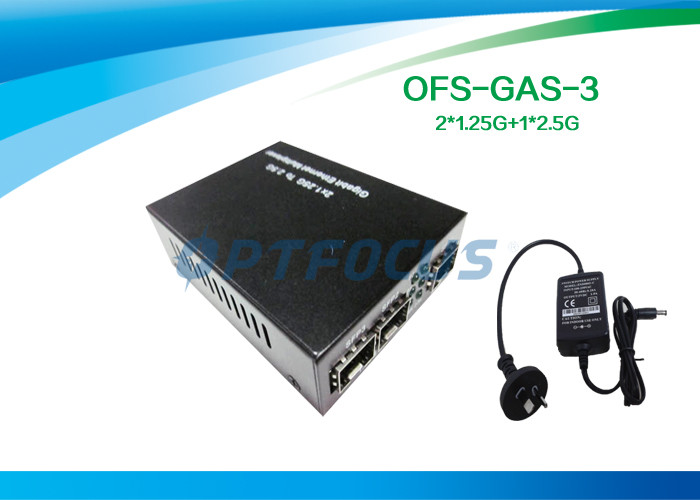

2.5G Gigabit Fiber Media Converter

Basic Information
Place of Origin: Guangdong, China(Mainland)
Brand Name: OPTFOCUS
Certification: CE,FCC
Model Number: OFS-GAS-3
Minimum Order Quantity: 2 pieces
Price: negotiated
Packaging Details: 26 (high) x 70 (width) x 93 (length) mm
Delivery Time: 3-5 Working Days after Payment Received
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 10000 Pieces per Month
Product Name: 1000M Media Converter Fiber To Rj45 Converter Sfp Media Converter Connector: SFP Port
Type: Media Converter Fibra Optica Delivery Detail: 5 Working Days After Payment Received
Packaging Details: As Customer's Requirements Power: External
Rate: 2.5G/Gigabit
High Light:

fiber optic media converter


fiber optic converters


2 × 1.25G to 2.5G Gigabit Fiber Media Converter , SFP to SFP , External Power Supplier



Technical Specifications



IEEE 802.3AB


Fiber Cable

Molti-mode: 50/125,62.5/125µm

Single-mode: 9/125µm.

LED Indicators

Power, P1 2.5G, P1 Link/Act,

P2 Link/Act,P3 Link/Act

Power Requirement 220V(110-245V)AC,50Hz
Ambient Temperature 0 ~ 50℃
Humidity 5% ~ 90%
Dimensions 26×70×93mm(H×W×D)
Data Transfer Rate

2.5Gbps for SFP1,

1Gbps for SFP2 and SFP3.



Main Features


       ◆ Connect the power cord to the Multiplexer and check that the Power LED lights up. The Px LEDs will light when all the cable connections satisfactory.

      ◆ Attach one 2.5G SFP module to SFP1 Cage on the Multiplexer. Attach two 1.25G SFP modules to           SFP2 and SFP3 Cage on the Multiplexer.

       ◆ Link fiber from the SFP1 on one Multiplexer with SFP1 on another Multiplexer. It can link through             CWDM system.

       ◆ Link fiber from the SFP2 and SFP3 on the Multiplexer to Gigabit Ethernet Service.

  Note: SFP2 on one Multiplexer link pass only with SFP2 on another Multiplexer. SFP3 on one Multiplexer link pass only with SFP3 on another Multiplexer.




Order Information



Product description


Three ports Gigabit Ethernet Multiplexer with two 1.25G SFP ports and one 2.5G SFP port.
