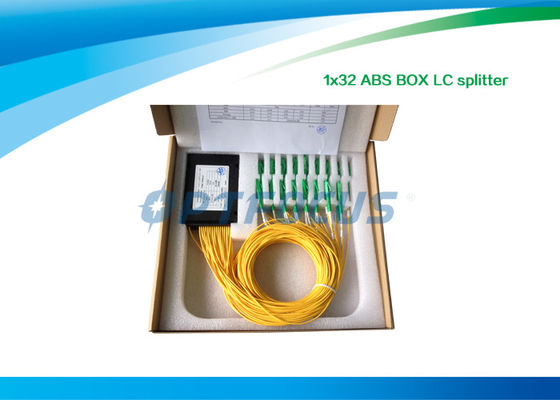

1310nm 1550nm Fiber Optic Splitter 1×32 FBT Coulper ABS SM DW CATV distribution

Basic Information
Place of Origin: Guangdong, China(Mainland)
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-PBT-SDWA1*32
Minimum Order Quantity: 5 set
Price: negotiated
Packaging Details: Depends on the quantity
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000 sets per month
Lead Length: 1 M Or More Lead Time: 5-8 Working Days
Configuration: 1x32 Wavelength: 1310nm & 1550nm
Bandwidth(nm): ± 40 Operating Temperature: -20 --- +70
High Light:

fiber optics splitter

,

fiber optical splitter



1310nm 1550nm Fiber Optic Splitter 1×32 FBT Coulper ABS SM DW CATV distribution


Features:

  1. Dual wavelength with wide bandwidth
  2. Low loss
  3. Low polarization dependence
  4. Environmentally stable
  5. Excellent uniformity

Applications:

  1. Local Area Networks
  2. CATV distribution
  3. Fiber optic sensors
  4. DWDM systems
  5. Trunk/loop branching

       Specification


Characteristics

Unit

Value / Performance

1 * 2 , 2 * 2

Center Wavelength

nm

1310 and 1550

Bandwidth

nm

±40

Excess Loss

dB

≤0.08 (0.06 typ.)

Coupling Ratio

-

50/50

40/60

30/70

20/80

Typ. Insertion Loss

dB

3.06

4.1/2.3

5.3/1.6

7.1/1.0

Polarization Dependent Loss

dB

≤0.1

≤0.1

≤0.15/0.1

≤0.15/0.1

Thermal Stability

dB

≤0.2

≤0.3

≤0.4

≤0.5

Directivity

dB

≥60

Operating Temperature

-20~+70

Lead Length

m

One, others on request

Lead Type

-

900um, 2mm or 3mm loose tube

Package Type

-

C

D

E

F


Ordering Information


1. Package TypeA1, A3, B, C, D or E

2. Wavelength3=1310nm & 1550nm

3. Lead Length0.5=0.5m, 1=1m, etc.

4. Lead Type1=250um, 2=900um, 3=2.0mm, 4=3.0mm

5. Configuration12=1x2, 22=2x2, 18=1x8, 1616=16x16, 132=1x32, etc.

6. Coupling Ratio50/50, 40/60, 20/80, 25x4(for 25/25/25/25), etc.

7. Connectors Terminated Blank=no connector, FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC


Characteristics

Unit

Value / Performance

1 * N , 2 * N

Configuration

-

N*4  N=1,2,4

N*8  N=1,2,8

N*16  N=1,2,16

N*32  N=1,2,32

Center Wavelength

nm

1310 and 1550

Bandwidth

nm

±40

Max Excess Loss

dB

0.2

0.3

0.4

0.5

Max. Insertion Loss

dB

7.0

10.5

14

17.5

Typ. Insertion Loss

dB

6.2

9.3

12.4

15.5

Polarization Dependent Loss

dB

≤0.2

≤0.3

≤0.4

≤0.5

Thermal Stability

dB

≤0.2

≤0.3

≤0.4

≤0.5

Directivity

dB

≥60

Operating Temperature

-20~+70

Lead Length

m

One, others on request

Lead Type

-

900um, 2mm or 3mm loose tube

Package Type

-

C

D

E

F

Uniformity

dB

≤1.6

≤2.4

≤3.2

≤4.0
