| Place of Origin: | Guangdong, China(Mainland) |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE |
| Model Number: | OFS-6210 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiated |
| Packaging Details: | The seller standard export package |
| Delivery Time: | Within 3-5 days after get payment |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 10000pcs one week |
| Emitter Type: | FP-LD,LED Or Others Please Specify | Power Supply: | Alkaline Battery(3 AA 1.5V Batteries) |
|---|---|---|---|
| Operating Temperature (℃): | -10~+60 | Dimension (mm): | 171×73×26 |
| Weight(g): | 175 | Output Stability: | ±0.05dB/15mins; ±0.1dB/ 8hours |
| Battery Operating Time(hour): | 45 | Storage Temperature (℃): | -25~+70 |
| Highlight: | fiber optic tools,fiber tester |
||

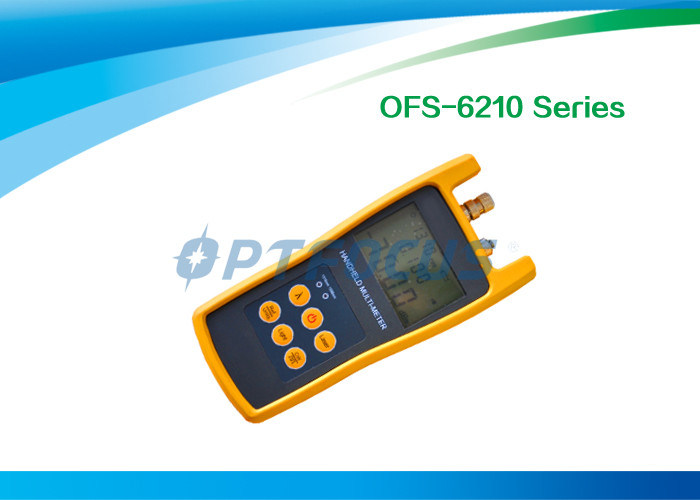

Handheld Fiber Optic Tester , Lighting Optical Testing Equipment 171×73×26 mm
OFS- 6210 is the company high availability, highly cost- effective optical multimeter. It’s the integration of
power meter and light source, user can operate the two function together or separately, which improves his work efficiency greatly. Moreover, OFS- 6210 is widely used in the fiber- optic line project construction,
testing andmaintenance, such as digital data network, telecommunication network and cable television.
Features:
* Great LED display,easy to operate
* Automatic switching function of the internal source wavelength
* Detection of the frequency light
* Power measurement in dBm and mw
* Wide-range detection zone
* Battery indication
Applications:
Maintenance of telecommunication project
CATV project maintenance
Digital data network project maintenance
Teaching and research in optical communications
Other fiber-optic projects
Standard Packages
|
MODEL |
INCLUDES |
|
All Models |
OFS-6210 Main Uint, Shield sleeve, 1.5V batteries, User Manual,Soft Oxford cloth pack,Cotton swabs,certificate |
Technical Specifications
|
Instrument model parameters |
OFS-6210A |
OFS-6210C |
|
Power meter |
||
|
Calibration wavelength(nm) |
850,1300, 1310,1490,1550,1625(Wavelength is optional) |
|
|
Testing range(dBm) |
-70～+6 |
-50～+26 |
|
Display resolution(dB) |
0.01 |
|
|
Uncertainty(dB) |
≤±0.25 |
|
|
linearity(dB) |
≤±0.1 |
|
|
Connector type |
FC(Optional) |
|
|
Source |
||
|
Working wavelenght(nm) |
1310/1550(±20)(customizable) |
|
|
Typical Output Power(dBm) |
-5(customizable) |
|
|
Stability(dB,30min,20℃) |
≤0.1dB |
|
|
Connector type |
FC/PC(customizable) |
|
|
Modulation frequency (Hz) |
CW,270Hz,1KHz,2KHz |
|
|
Other parts |
||
|
Power supply |
3*AA 1.5Vbattery / Mini USB 5Vadapter |
|
|
Auto-off time (min) |
10 |
|
|
Battery continuous operation time②)(h) |
Source ON≥50,source off≥200 |
|
|
Working temperature(℃) |
-10～+60 |
|
|
Storage temperature(℃) |
-25～+70 |
|
|
size(mm) |
171×73×26 |
|
|
weight(g,not including battery) |
175 |
|
