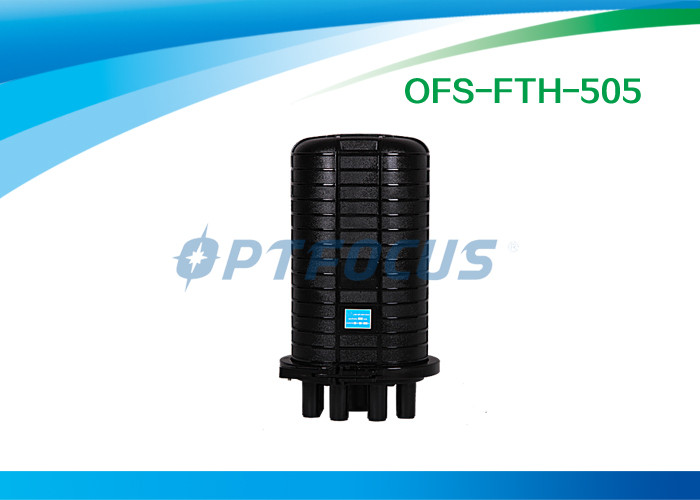

96 cores PC FTTH PLC Splice Closure 7 Port Shrinkable Seal Waterproof

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-FTH-505
Minimum Order Quantity: 10 pcs
Price: negotiated
Packaging Details: Carton Size(cm):47*44*52 Qty/CTN:4PCS G.W/CTN:18.2KG
Delivery Time: 5-8 days after payment received
Payment Terms: Western Union, T/T, L/C, Paypal
Supply Ability: 10000PCS/Month
Max Diameter Of Cable (mm): 1*36,6*21 Color: Black
Core Capacity (max): 96 Cores Cable Ports: 7
Material: PC Size (mm) H*D: 490*220
High Light:

electrical enclosures

,

fiber enclosure



96 cores PC FTTH PLC Splice Closure 7 Port Shrinkable Seal Waterproof



OFS-FTH-505



Features:



Applications



OFS-FTH-505 Fiber Optic Splice Closure Datasheet



Model No.

Size (mm) HxD

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Adapter and holes of Front Panel

OFS-FTH-505

495x220

96

7

1×Ø36
6×Ø21

FC adapters:24PCS

SC adapters:24PCS

ST adapters:24PCS

LC adapters:24PCS



Remarks:

  1. OFS-FTH-505 accommodates one set of elastic seal fitting for 7 inlet/outlet ports.
  2. Installation accessories provided: 1pc of special wrench, abrasive cloth, earthing wire, nylon ties, labeling paper, measuring paper, desiccant, aluminium-foil paper.

Accessories by customers’ selection: earthing device, buffer pipe, pressure testing valve, adapter panel, adapter, pigtail, patchcord, wall-mounting bracket and pole mounting
