8×1 Fiber Optic Switch 100BASE - Fx 1 10 / 100BASE - Tx DF SM 1310nm 20KM SC

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: OPTFOCUS
Certification: FCC
Model Number: OFS-SF8T1
Minimum Order Quantity: 2
Price: negotiated
Packaging Details: 30 × 127 × 210 mm (length × width × high)
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pieces per month
Color: Black Or Silver Dimensions: 30(high)*127(width)*210(length)mm
Standard Compliance: IEEE802.3/u/z/ab, 1000Base-SX/LX MAC Address Table: 8K
Humidity: 5% ~ 90% Frame Buffer Memory: 1MKb
Storage Temperature: -20 ~ +70°C Connector: SFP Connector
High Light:

8 SFP Fiber Optic Switch

,

SM 1310nm Fiber Optic Switch

,

SFP Connector fiber optical switch

8×1 Fiber Optic Ethernet Switch 100BASE - Fx 1 10 / 100BASE - Tx DF SM 1310nm 20KM SC



Specifications



100M 8 SFP +1 RJ45 Ethernet Switch with eight SFP ports
1. Provides 8 SFP sockets
2. Supports VLAN and QoS
3. fast delievery

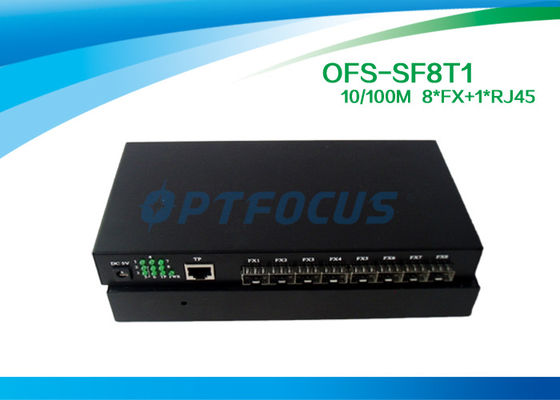

                                                         OFS-SF8T1



100M 8 SFP +1 RJ45 Ethernet Switch with eight SFP ports



OFS Serier 9 ports 100M Ethernet Switch has eight 100M SFP sockets and one 10/100M UTP ports. Customer can choose different 100M SFP module according as his demand, such as Multimode or Singlemode, Single fiber or Dual fiber and Singlemode 20-100km etc. It is applicable to use in constructing of Optical Fiber Ethernet network.



Main features



Provides 8 SFP sockets



The SFP slot supports 100M at full duplex.



Supports 802.3x flow control on full-duplex and Back-pressure flow control on half-duplex.



Supports VLAN and QoS.



Supports Trunking function.



Support packet length up to 1600 Bytes



Low power consume (10W), low heat, and good reliability.



Store & forward, share memory, non-blocking architecture



Technical Specifications



Standard compliance IEEE802.3/u/z/ab, 1000Base-SX/LX
MAC address table 8K
Frame buffer memory 1MKb, With 20 Gbps switch fabric
Connector SFP 100Mbps
Cable

Multimode Fiber50/125,62.5/125μm (the max distance up to 224 / 550m)

Singlemode Fiber8/1258.7/1259/125μm (the max distance up to 10~100 km)

Flow control

Full Duplex: IEEE802.3x flow control

Half Duplex: back pressure flow control

LED PWR,SFP1 Link/Act, SFP2 Link/ActSFP3 Link/Act, SFP4 Link/Act, SFP5 Link/Act, SFP6 Link/Act, SFP7 Link/Act, SFP8 Link/Act
Power Requirement AC220V(100-240V),50~60Hz; DC:5V,3A
Ambient Temperature ~ +50°C
Storage Temperature -20 ~ +70°C
Humidity 5% ~ 90%
Dimensions 30(high)×127(width)×210(length)mm





Application



 8×1 Fiber Optic Switch 100BASE - Fx 1 10 / 100BASE - Tx  DF SM 1310nm 20KM SC 0

                               Video monitoring application

 8×1 Fiber Optic Switch 100BASE - Fx 1 10 / 100BASE - Tx  DF SM 1310nm 20KM SC 1

                                     Communications network applications
