Home ProductsFiber Testing ToolsAutomatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network

Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network

Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network
Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network
Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: 3C,CE,FCC,RoHS
Model Number: OFS-SF6516
Minimum Order Quantity: 1 piece
Price: USD 766 1piece
Packaging Details: Box and carton
Delivery Time: 7-14 days
Payment Terms: L/C, T/T
Supply Ability: 100 piece a month
Contact Now
Product Name: Fiber Optic Test & Repair Toolkit,fiber Light Meter Optical Power Source Fiber Cable Testing Tools Color: Green
Application: FTTH FTTB FTTX Network Operating Temperature: -10℃~+50℃
Temperature Limit: -20℃~+55℃ Key Word: Fiber Splicing Machine
Storage Temperature: -40℃~+80℃ Package Type: Fiber Fusion Splice Box Will Be Packed In Carton Box
Keywords: Fusion Splicing Machine
High Light:

automatic fiber optic cable splicing machine

,

Green fiber optic cable splicing machine

,

FTTX Network optical fiber fusion splicer

Fiber Optic Cable Fusion Splicing Fiber Fusion Splice Box automatic fiber optic fusion machine


Product Description

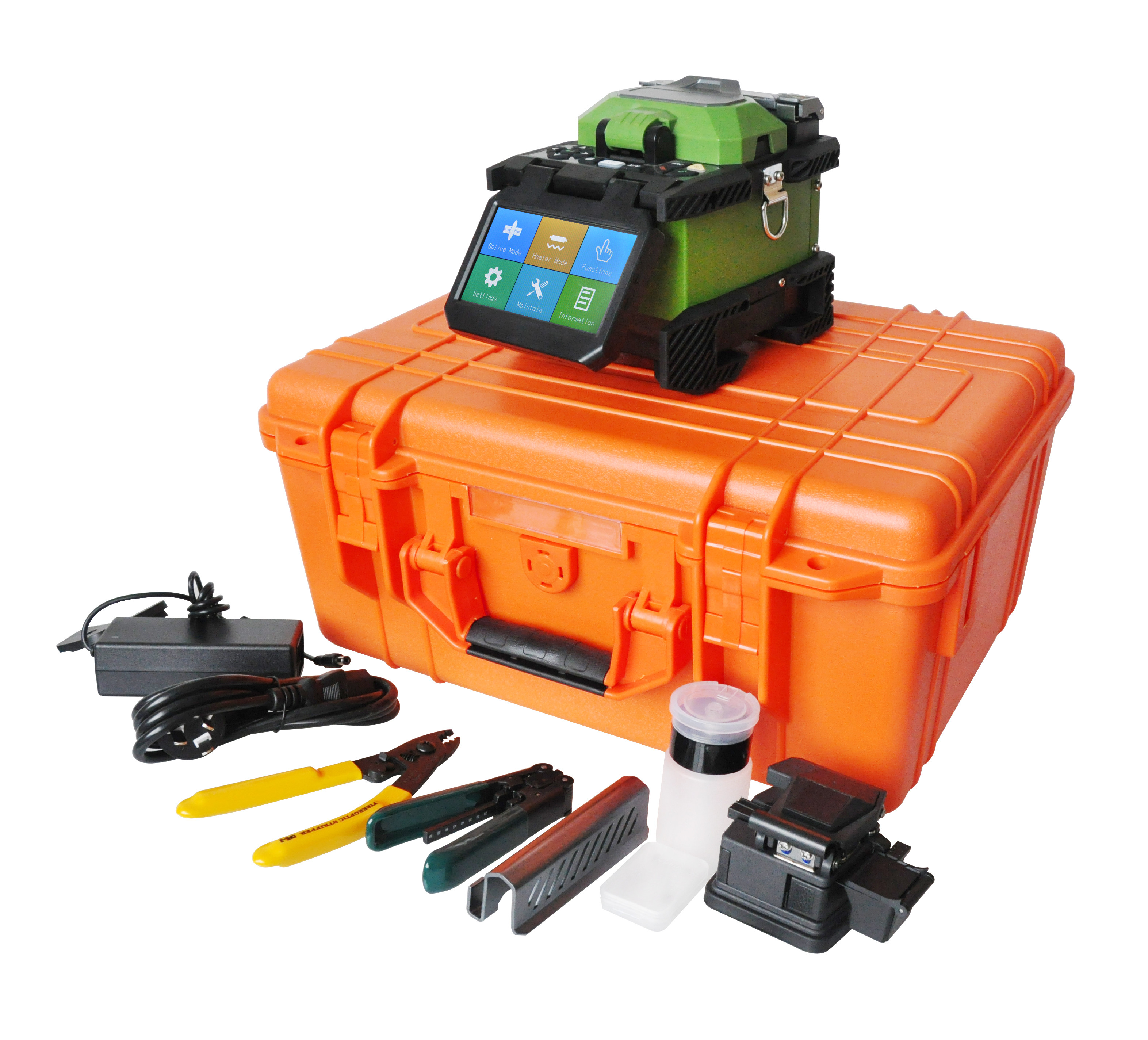

Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 0
Features
* Precise cladding alignment, ultra-low fiber fusion splicing consumption 7s fast fusion splicing, 18s highly efficient heating,320 times image magnification *5mm fusion splicing for fibers of ultra-short cutting length,300 groups of fusion splicing modes,100 groups of heating modes,10000 groups of fusion records,64 images storage Ceramic presser foot * Dual-direction splicing, automatic splicing, intelligent pyrocondensation,USB and SD card interfaces, U-disk automatic software upgrade * Three Splicing modes: auto, half-auto, manual,Built-in modular lithium battery, supports 220 times of splicing and heating cycles.
Specification
item
value
Model Number
OFS-SF6516
Type
Fiber fusion splicer
Place of Origin
Guangdong
Brand Name
OPTFOCUS
Use
FTTX,FTTB,FTTH
Warranty Time
1 years
Operating temperature
-10℃~+50℃
Temperature limit
-20℃~+55℃
Operating humidity
95%RH and below(non-condensing)
Max wind speed
15m/s
Storage temperature
-40℃~+80℃
Dimensions
W×H×D=120mm×130mm×154mm(without vibration-free rubber pad)
Weight
approx.1.95kg(with the lithium-ion battery), approx.1.75kg(without the lithium-ion battery)
Keywords
fusion splicing machine
Key word
Fiber Splicing Machine
Package Type
Fiber Fusion Splice Box will be packed in carton box
Packing & Delivery

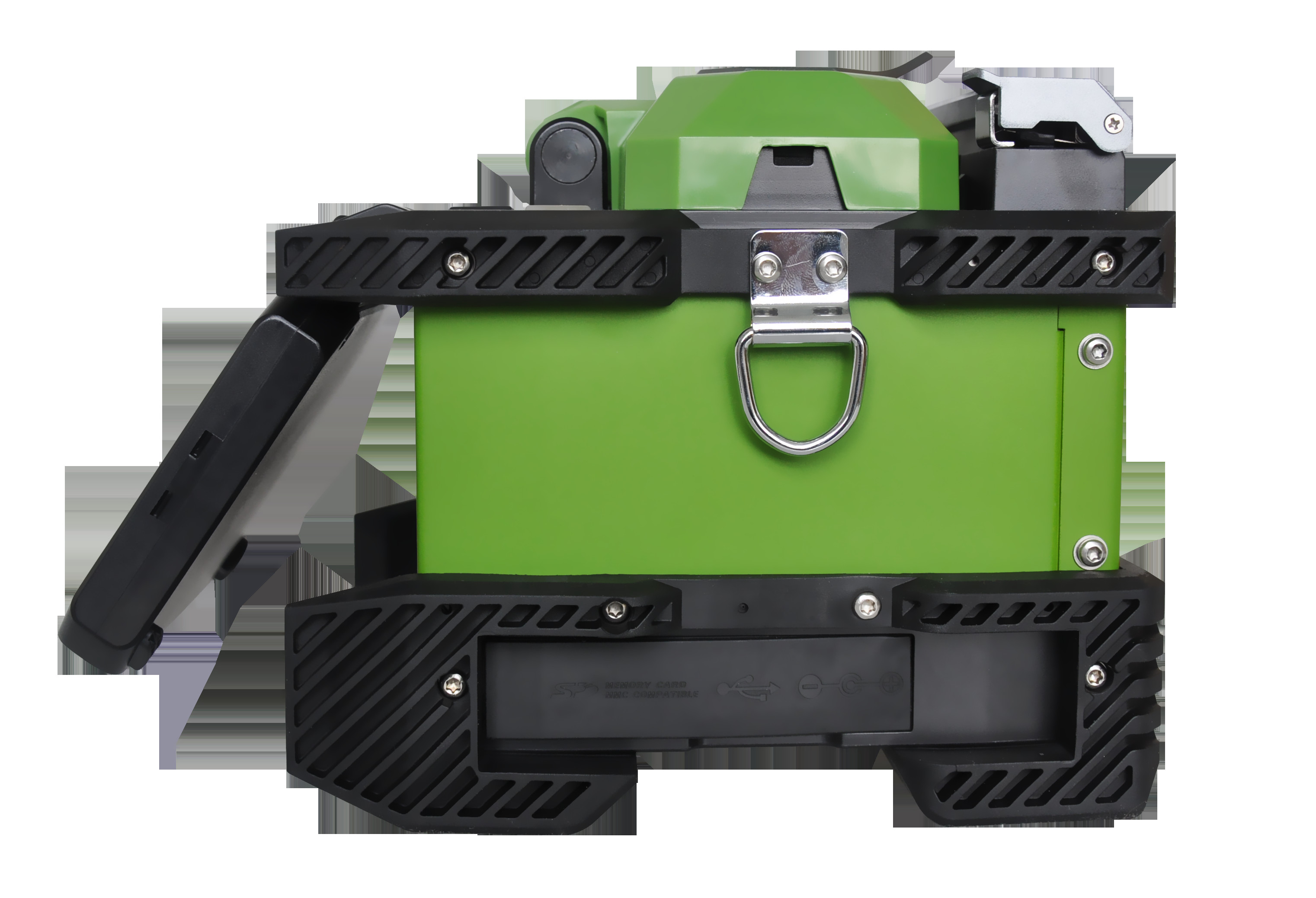

Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 1
Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
00:00

02:41

Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 3
Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 4
Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 5
Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 6
Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 7
Automatic Fiber Optic Cable Splicing Machine Green Color For FTTH FTTB FTTX Network 8
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines. Advantage of our company : 1 National High-tech enterprise certification; 2 Fiber Optical Innovative &production team Over 10 years; 3 Fiber optical active and passive components production Workshop; 4 Strict quality management system; 5 Professional One stop supply & service; 6 OEM&ODM available; 7 Reliable and Timely customer services;
FAQ
1. who are we?
We are based in Guangdong, China, start from 2009,sell to South America(30.00%),Southeast Asia(10.00%),Western Europe(10.00%),Central America(10.00%),Domestic Market(7.00%),South Asia(6.00%),North America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Northern Europe(5.00%),Africa(3.00%),Eastern Asia(3.00%),Southern Europe(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
G/EPON ONU,OLT,POE SWITCH,FIBER SWITCH,SFP

4. How do l assure that you are a reliable supplier?
We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
Accepted Payment Currency:USD,EUR,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
