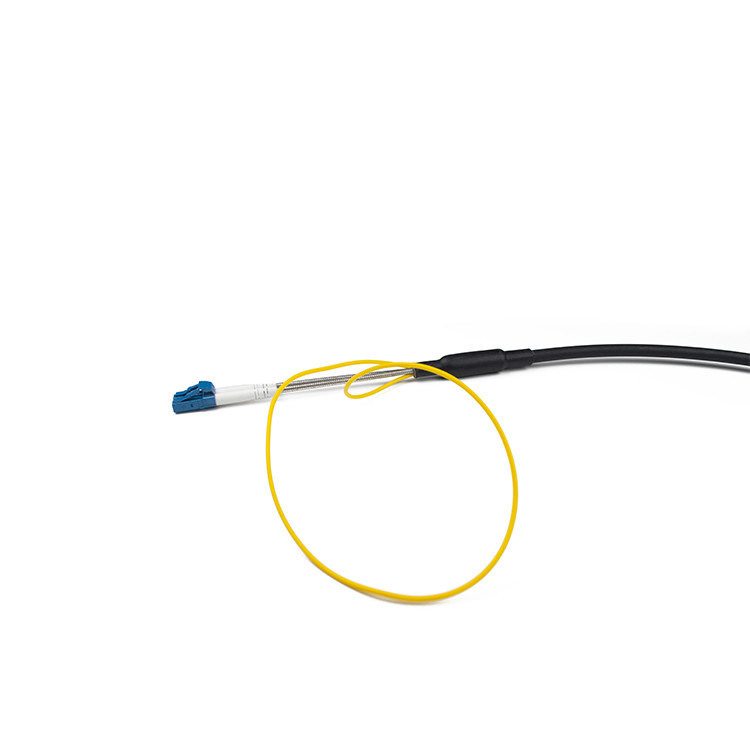

Single Mode Ftta LSZH RRU CPRI Fiber Optic Cable

Basic Information
Place of Origin: China
Brand Name: Neutral
Certification: CE
Model Number: CPRI
Minimum Order Quantity: 1000 meters
Price: USD 0.1~3/PIECE
Packaging Details: Factory standard package
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal and so on
Supply Ability: 50000 pcs / month
Application: For Connection Between Distribution Box And RRH Connector Type: LC
Cable Material: LSZH Storage Temperature: -20~+70℃
Endurance: 500 Matings Humidity: +40°C At 93%, 96h Duratio
High Light:

RRU CPRI Fiber Optic Cable


LSZH CPRI Fiber Optic Cable


Ftta CPRI Patch Cord

CPRI cable ftta patch cord



1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.


1. Easily add/install jumper cables for a future expansion.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. Flexibility with small bending radius and excellent cable routing properties.
5. End-face geometry and quality superior than IEC and Telcordia standards.
6. The material in the jumpel cable are all-weather and UV-resistant.
7. Mechanical performance: IEC 61754-20 standard.
8. RoHS and REACH materials compliant.



Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Durability 500 mating cycles
Working temperature -40 to + 85℃









Connector Types

Type Reference Note


IEC 61754-20

Single mode duplex

APC: Green connectors , Green boots UPC: Blue connectors , White boots
Multimode duplex UPC: Grey Connectors , White boots


Dimensional Diagrams

CPRI LC Outddoor cable Assemblies

Single Mode Ftta LSZH RRU CPRI Fiber Optic Cable 0


Patch cord versions

Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0<L≤20 +10/-0
20<L≤40 +15/-0
L>40 +0.5%L/-0


Mechanical Characteristics


Test Conditions Reference
Endurance 500 matings IEC 61300-2-2
Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
Cable retention 400N (main cable); 50N (ranch part) IEC 61300-2-4
Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
Fall 10 drops, 1m drop height IEC 61300-2-12
Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part) IEC 61300-2-42
Cold -25°C, 96h duration IEC 61300-2-17
Dry heat +70°C, 96h duration IEC 61300-2-18
Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
Humidity +40°C at 93%, 96h duration IEC 61300-2-19
