| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE,FCC |
| Model Number: | OFSX622-CW |
| Minimum Order Quantity: | 1 Piece |
| Price: | USD20-30/UNIT |
| Packaging Details: | 27.2*4.5*16CM |
| Delivery Time: | 3-15 workdays |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 50000 pcs per month |
| Fiber Connector: | Sc/APC Or Sc/Upc | Mode: | ONU Epon Gpon |
|---|---|---|---|
| Weight: | 0.5kg | Humidity: | 10~85%(Non-Condensation) |
| Compatibility: | Mianstream Brand | Wavelength(Nm): | Tx 1310nm, Rx 1490nm |
| Chipset: | RTL | Warranty: | 2 Years |
| Keywords: | Catv Lan Tel Pon Onu |

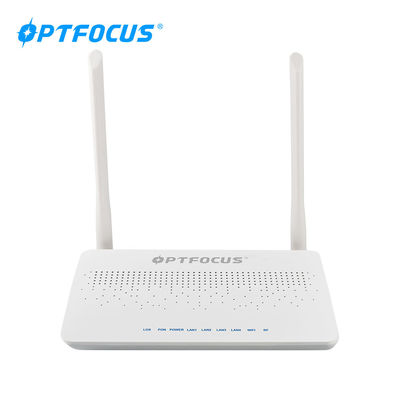

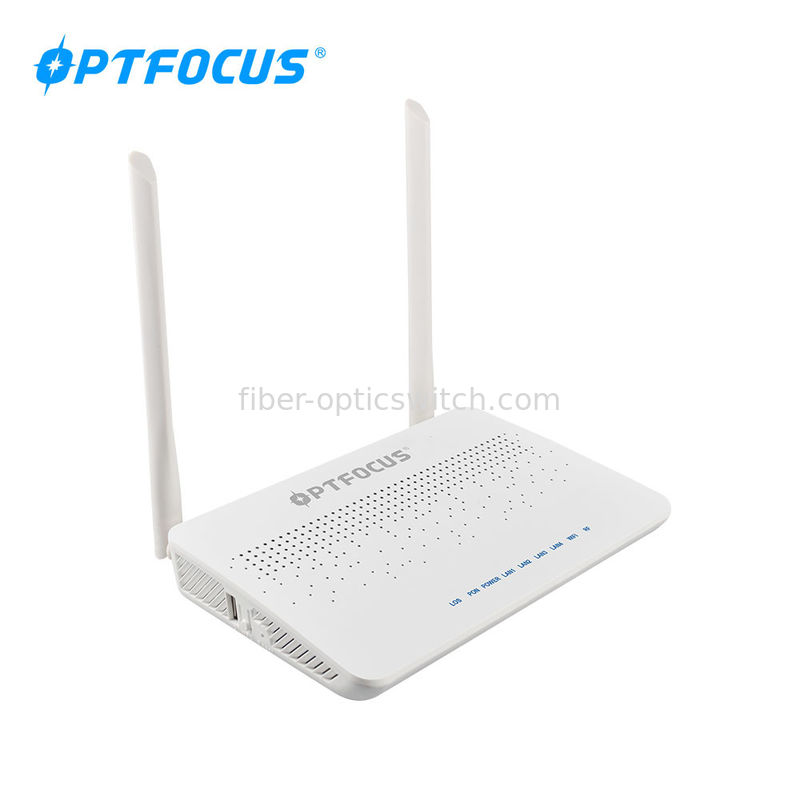

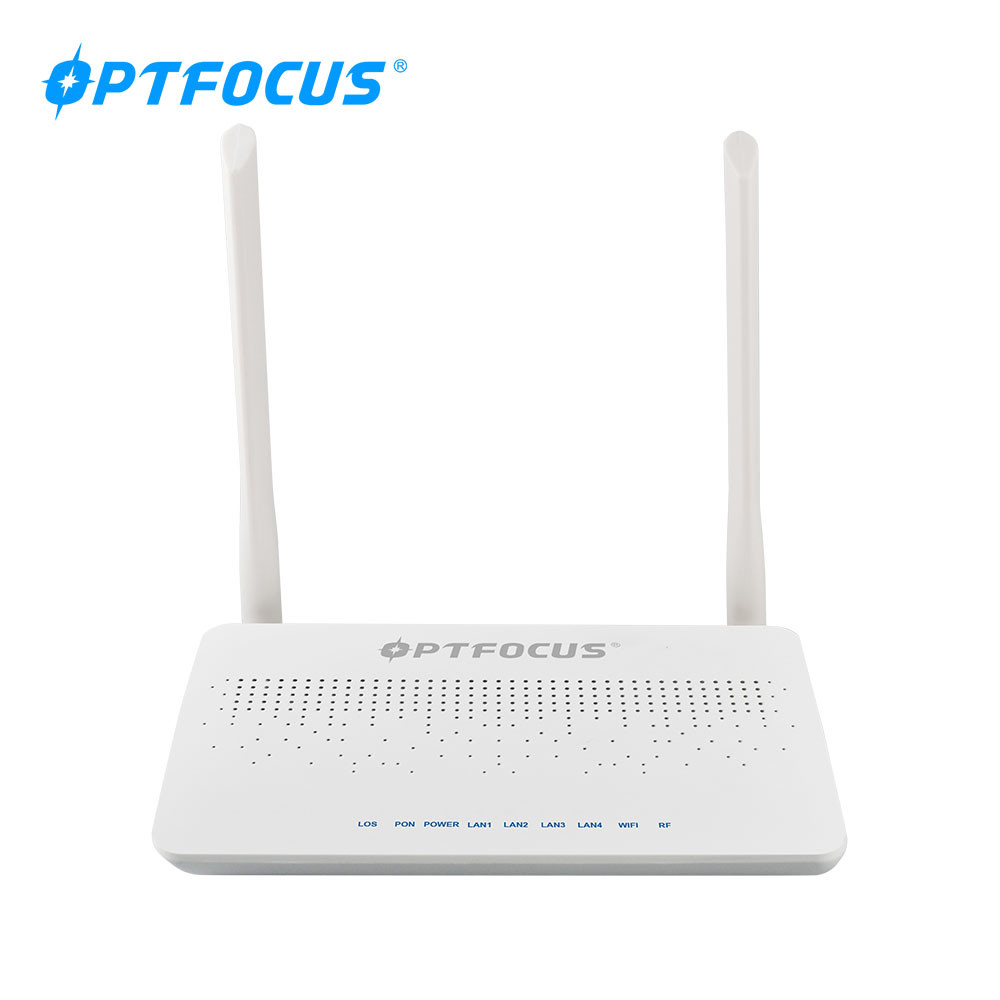

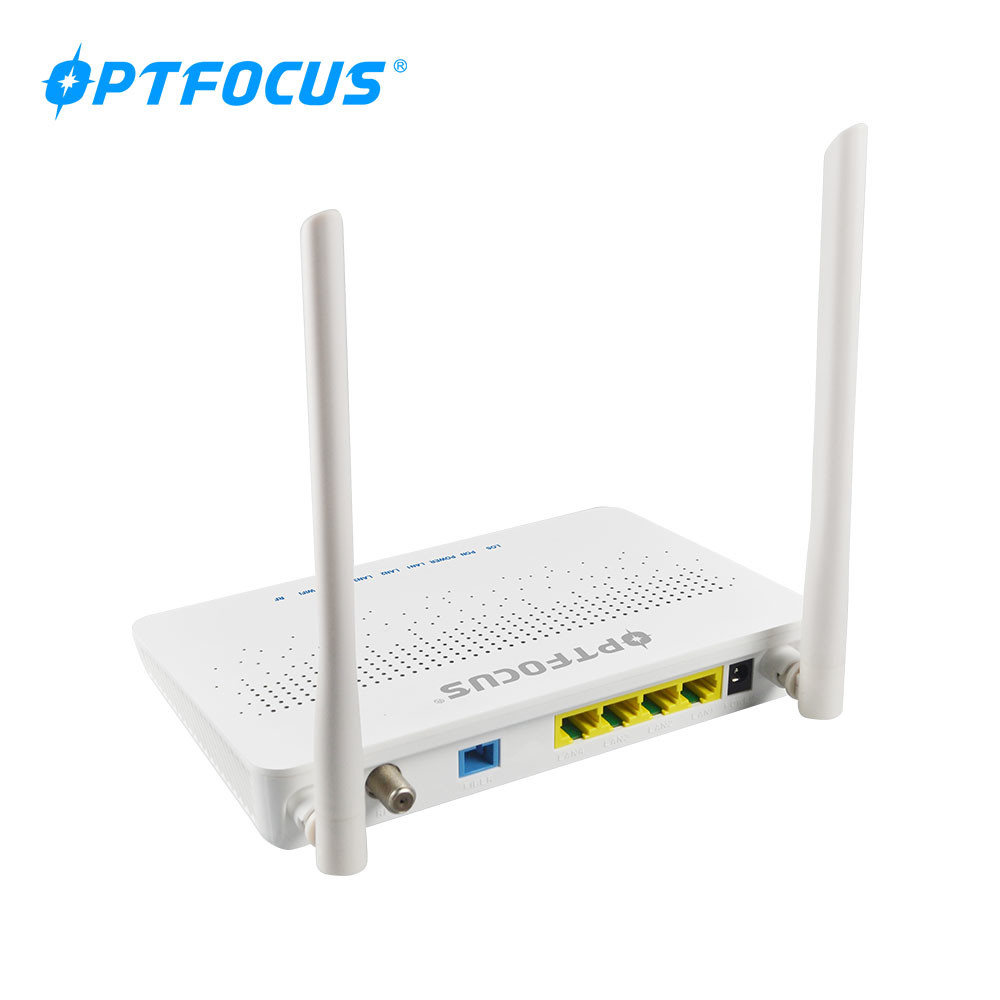

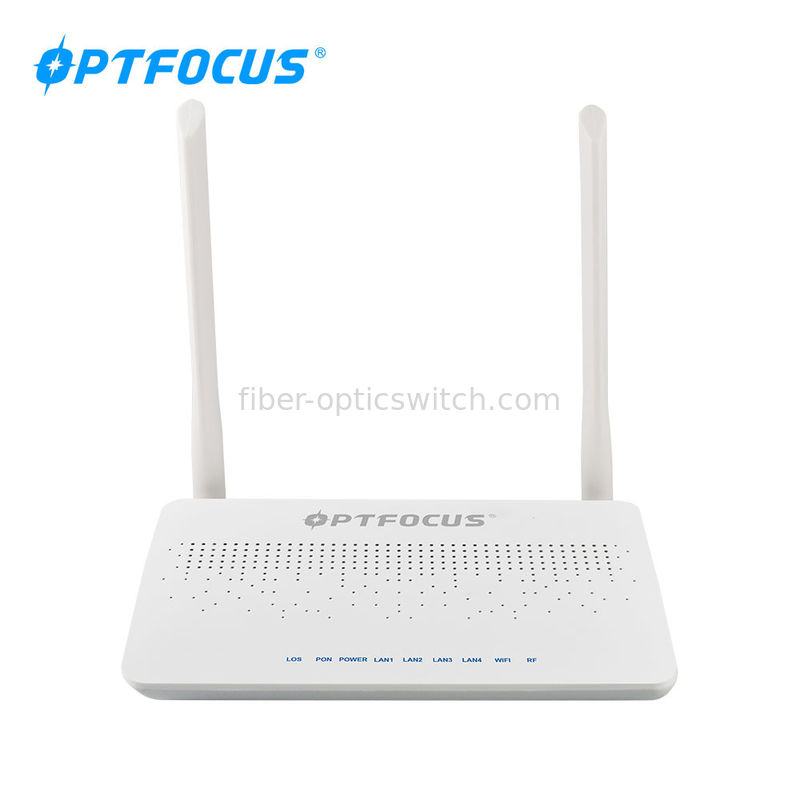

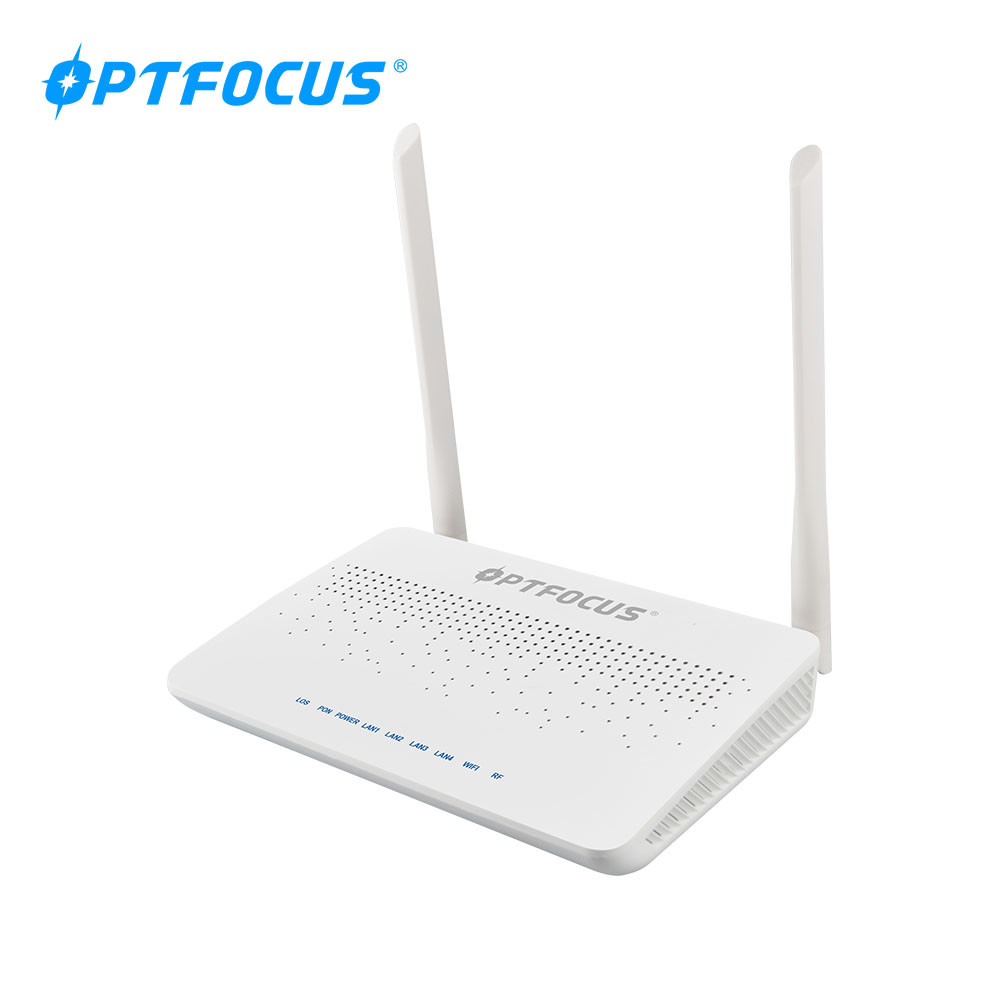

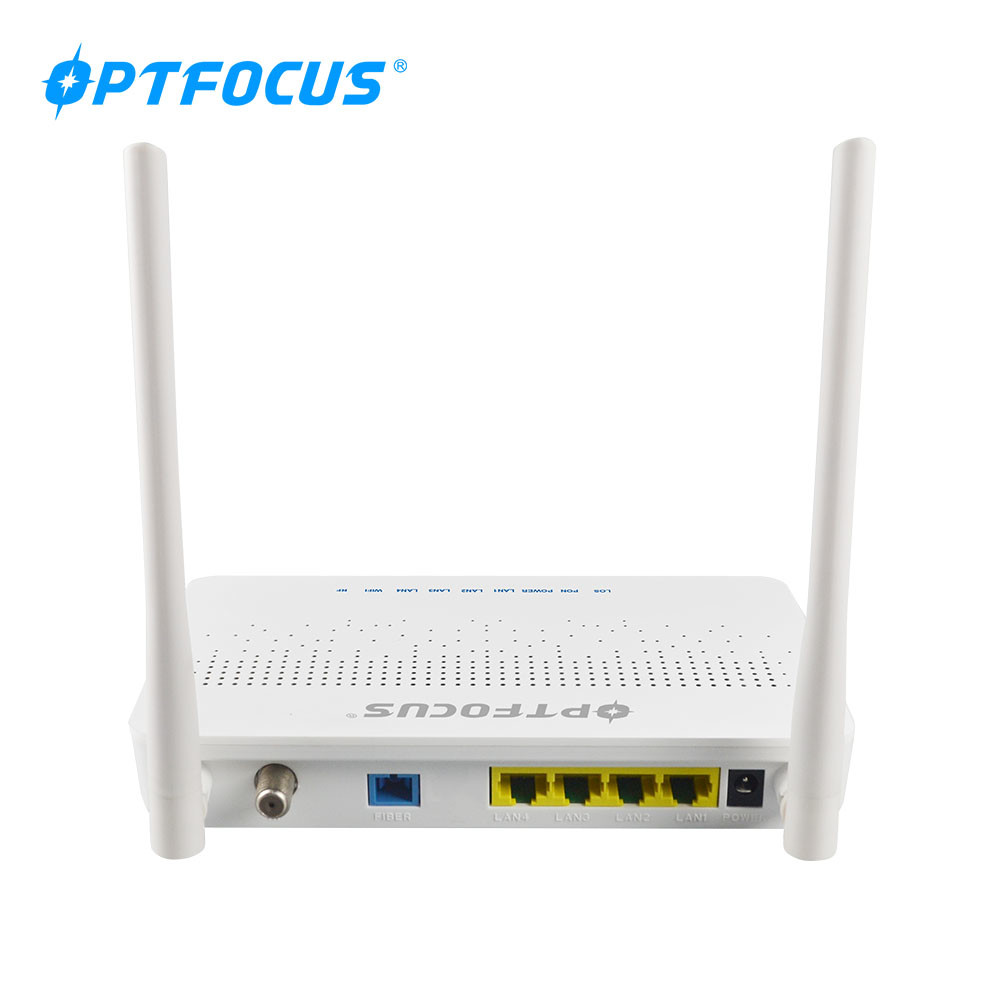

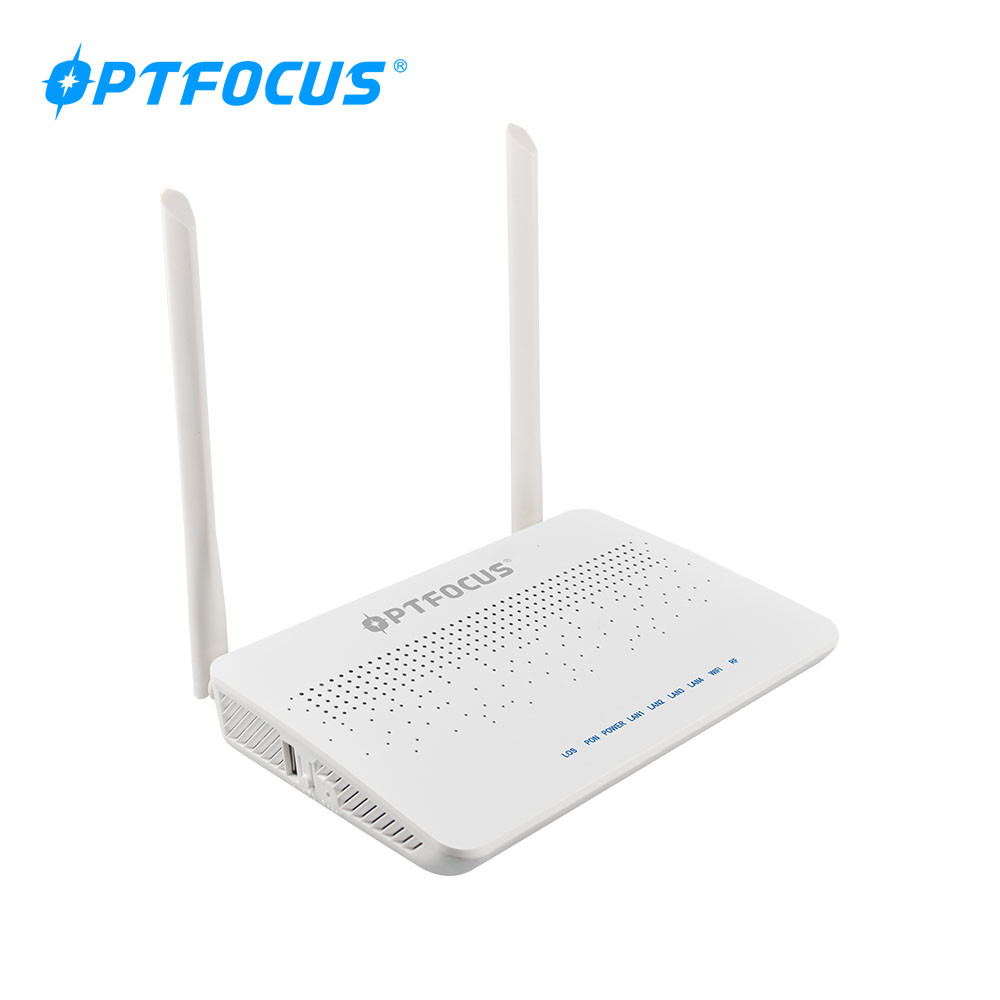

new design 300mbps wifi 4ports CATV lan tel GE pon ONU with fxs wifi
OFSX624-CVWU
1GE+3FE Ethernet ports with Wifi USB VOIP WDM CATV XPON ONU for FTTH solution
Description:
OFSX624-CVWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics:
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490/1550nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 10 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 188*125*35mm(mainframe) |
| Weight | 0.5Kg(mainframe) |
WIFI CHARACTERISTICS:
| Tech Features | Description |
| Antenna |
2T2R Mode 5DBI GAIN, frequency:2.4G |
| Rate | 300Mbps PHY rate |
| Encryption | WFA, WPA, WPA2, WAPI |
CATV TECHNICAL FEATURES:
| Tech Features | description |
| optical Wavelength | 1540-1560nm |
| optical input range | 0-15dbm |
| optical return loss | No less than 45db |
| Bandwidth | 45-1000Mhz |
| Flatness | +-1db |
| RF output level | no less than 72dbuv |
| AGC control range | 0~-14 dbm |
| RF out put return loss | no less than 14db |
| Output impedance | 75 ohm |
| CNR | No less than 50db |
| CTB | No less than 60db |
| CSO | No less than 60db |
FEATURE:
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l Completely compatible with both GPON and EPON automatically.
l Support triple churning encryption request
l Support VOIP TRUNK
l Support the remote upgrade and download
l Support status detection and fault report
l Support TR069
l Support to configure the work mode at the user port
l Support MDI-MDIX automatic-detection at the user port.
l Support data encryption and decryption
l Support access authentication based on serial number
l Support access authentication based on MAC address
l Support 802.1Q VLAN
l Support rich QinQ VLAN functions and IGMP Snooping
l Support traffic rule to modify the related priority.
l Support the remote reset and reboot
l Support dying gasp outage alarm
l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
