GPON OLT ONU English firware GPON/EPON ONU with single GE LAN pot Apply To FTTH Modem silimar with Huawei HG8310

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE ISO
Model Number: OFSX611
Minimum Order Quantity: 1 piece
Price: USD 9~12 / piece
Packaging Details: 1PCS/BOX, 80PCS/CTN
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000 pcs / month
Product Name: EPON EPON ONU Fiber Connector: SC/UPC Connector
Operating Temperature: -5~+55℃ Storage Temp.: -30~+70℃
DC Supply Interface:: 12V 0.5A Dimension(MM): 85*85*28
Weight: 0.2kg Serivices: OEM&ODM
Warranty: 1 Year
High Light:

gpon onu

,

epon gpon

English firware GPON/EPON ONU with single GE LAN pot Apply To FTTH Modem silimar with Huawei HG8310

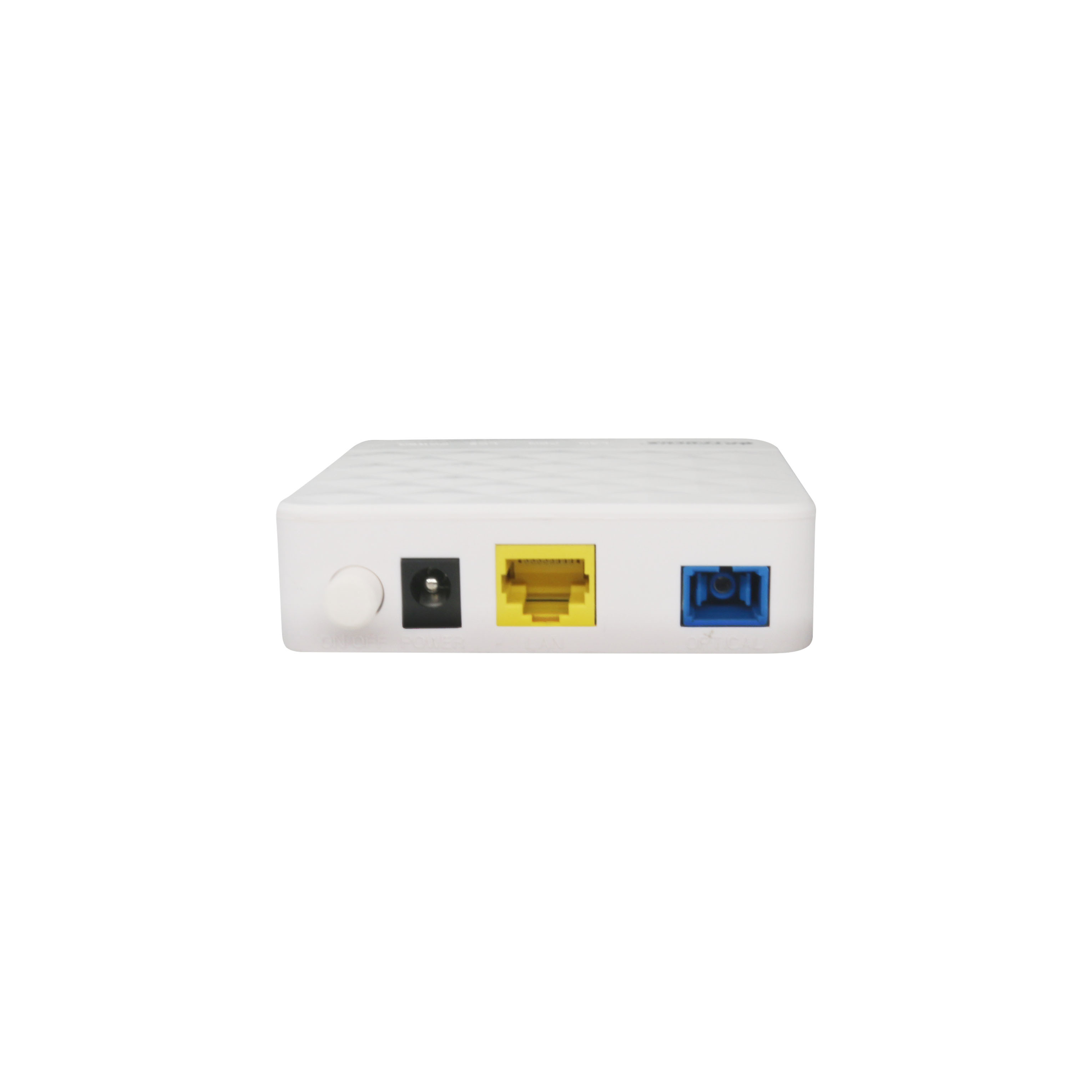

GPON OLT ONU English firware GPON/EPON ONU with single GE LAN pot Apply To FTTH Modem silimar with Huawei HG8310 0



1GE Ethernet ports XPON ONU for FTTH solution

OFSX611 XPON(GPON and EPON dual mode) ONU. it can be used as GPON or EPON. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement.





Technical Specification

 Tech parameters  Description
 Up-link interface  1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244   Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber   type:SC/UPC
 Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
 Wavelength(nm)  TX 1310nm,RX 1490nm
 Fiber connector   SC/UPC connector
 Down-link data interface   1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
 Indicator LED  4 pcs
 DC supply interface  input+12V 0.5A
 Power  ≤5W
 Operating temperature  -5~+55℃
 Humidity  10~85%(non-condensation)
 Storage temperature  -30~+70℃
 Dimension(MM)  85*85*28mm(mainframe)
 Weight  0.24Kg(mainframe)



Product Feature





LED Information

Symbol Color  meaning
PWR Green  ON:successfully connect with power OFF:fail to connect with power
PON Green  ON:ONU port Link link correctly Flicker: PON registering
 OFF:ONU ports link link faulty
LAN Green  ON: Link up correctly Flicker: data is transmitting OFF: link down faulty
LOS Red  Flicker: fail to connect with PON port
 OFF: detected fiber to input





Order Information

 Product name  Product description
 OFSX611  1*XPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,12V Power supply





Solution

GPON OLT ONU English firware GPON/EPON ONU with single GE LAN pot Apply To FTTH Modem silimar with Huawei HG8310 1



Packing:

Optofucs brand packing:

1 PCS/Box, 90Boxes/CTN, 48*43*38CM, 17.5KG/CTN

Neutral packing:

1 PCS/Box, 80Boxes/CTN, 48*43*38CM, 16KG/CTN

GPON OLT ONU English firware GPON/EPON ONU with single GE LAN pot Apply To FTTH Modem silimar with Huawei HG8310 2

GPON OLT ONU English firware GPON/EPON ONU with single GE LAN pot Apply To FTTH Modem silimar with Huawei HG8310 3







Related products

GPON OLT ONU English firware GPON/EPON ONU with single GE LAN pot Apply To FTTH Modem silimar with Huawei HG8310 4



Notification:
About purchasing and shipping:

1) Products are in stock.
2) Shipping cost is depend on address and nation.
3) Every carton includes 80 pcs of ONU device (Neutral type). Purchase order started with one carton.
4) Deliver time is about 5-10 workdays through express.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.


About competibility:

1) This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)


About products and service:

1) Products support both bridge and router.
2) This products is NO branded. If need brand, please chat with us, we support OEM & ODM services
3) Connector: SC/UPC, if need SC/APC, please contact us, we also support.
4) For this model, we have two kind of design, BOSA & SFF. This one is made of BOSA solution ( Chat with us, if you need SFF)
5) Power adaptor originally: EU.Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
