Single mode 20km / 40km fast fiber Industrial Ethernet switch unmanaged 8 10M / 100M RJ45

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE、RoHS、CCC、FCC
Model Number: OFS-IDT8
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 20pcs/carton; carton size: 48*34*34
Delivery Time: 6-9 working days
Payment Terms: Western Union, T/T, Paypal, L/C
Supply Ability: 6000pcs per week
Material: Metal Application Level: L2
Standard: IEEE 802.3、IEEE 802.3u 、IEEE 802.3I、IEEE 802.3z、IEEE 802.3at Ports Operating Temperature: -40 ℃ ~ +85 ℃
Relative Humidity: 5~95% (no Frost) Cooling: Natural Cooling, No Fan
Weight: 0.85kg Dimension: 143 X 104 X 48mm (wide X Deep X High)
Warranty Period: 5 Years
High Light:

5 port industrial ethernet switch


industrial grade switches


Single mode 20km / 40km fast fiber Industrial Ethernet switch unmanaged 8 10M / 100M RJ45


Product description:

The product is an unmanaged industrial level Ethernet switch, with 8 10/100Base-T adaptive Ethernet interface RJ45. It help users to realize the Ethernet data exchange, convergence and long-distance optical transmission function. The equipment has the advantages of no fan, low power consumption, easy to use, small size, simple maintenance and so on. Product design in line with the Ethernet standard, add lightning protection, anti-static protection measures, -40 DEG C ~ +85 wide range of working temperature, stable and reliable performance. The device can be widely used in intelligent transportation, telecommunications, security, finance and securities, customs, maritime, electric power, water conservancy and oil fields and other broadband data transmission.

Key Features:

Input voltage: DC10~58V (dual power redundancy backup)

Working temperature: -40 ℃ ~ + 85 ℃

Housing: IP40 protection grade, DIN rail type, metal aluminum, no fan design

Inspection report: through the Ministry of public security inspection report, CCC/FCC/CE/ROHS


Standard:IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE 802.3at


Quantity: 8

RJ45:eight 10/100BASE-T RJ45


Transmission mode: full duplex mode

Application level:L2

Backplane bandwidth:1.6Gbps

Packet forwarding rate:1.19Mpps

MAC : 1K


Delay time:<3μs

Exchange: Store - forward


LED indicator




Housing: metal material

Cooling: natural cooling, no fan

Dimensions:143 x 104 x 48mm (wide x deep x high)

Weight: 0.85Kg

Installation mode: DIN card rail type


Operating temperature: -40 ℃ ~ +85 ℃

Storage temperature: -40℃ ~ +85 ℃

Relative humidity: 5~95% (no frost)

Transmission distance

Twisted pair: 100m (using CAT5e, CAT6 network cable)




MTBF:100,000 hour



Input voltage: DC10~58V (dual power redundancy backup)

Access terminal: Phoenix terminal

Power (full load) <3W


Warranty period: 5 years

Certification: Ministry of public security inspection report,CCC , CE,FCC, Rohs

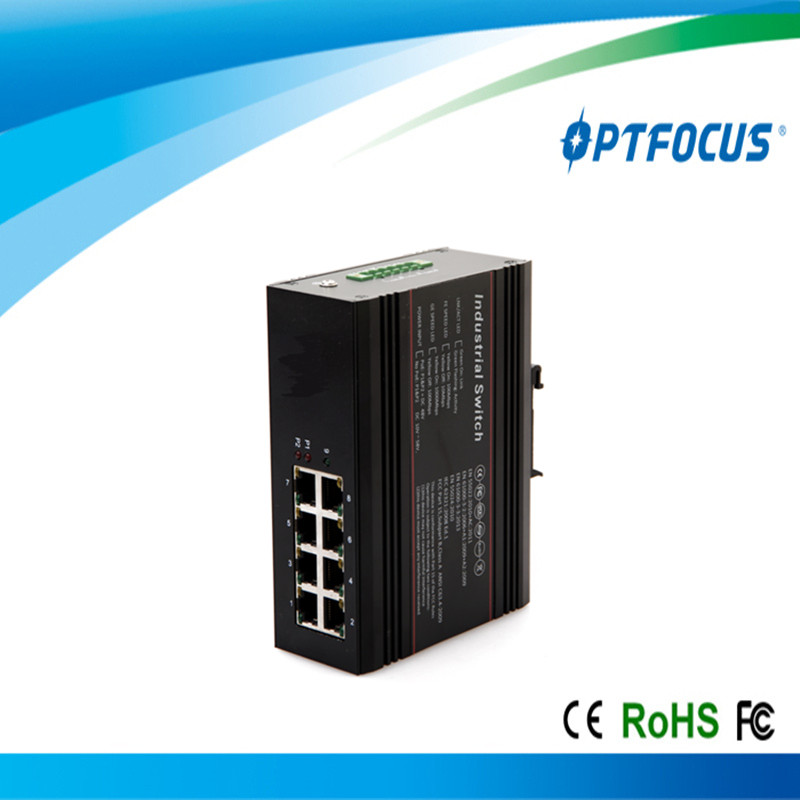

Product front panel:

Single mode 20km / 40km fast fiber Industrial Ethernet switch unmanaged 8 10M / 100M RJ45 0
