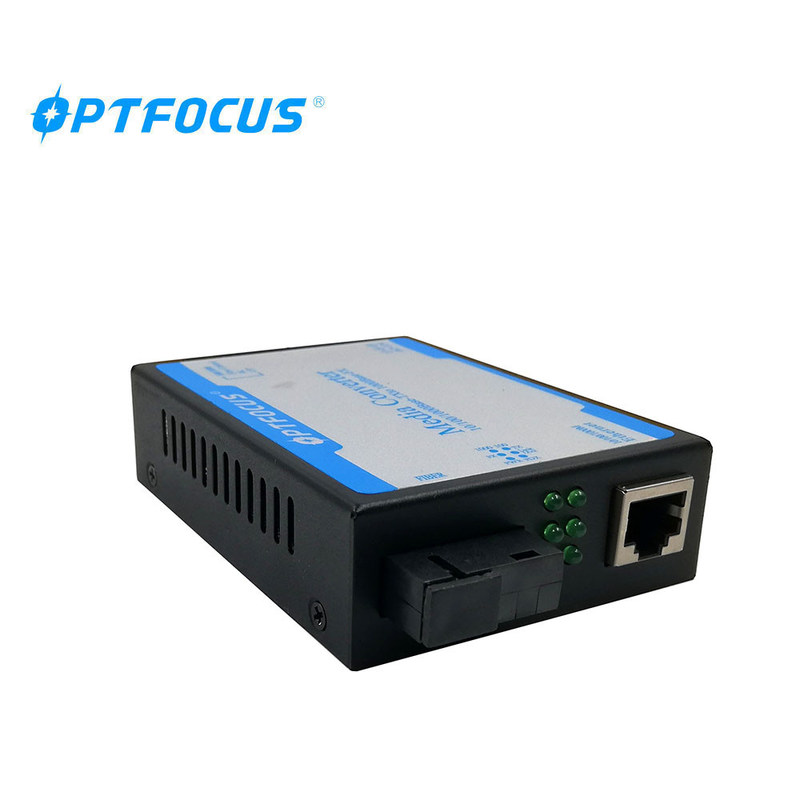

Single Fiber Fiber Media Converter SM 80 Km SC 1310nm 1550 nm External PS

Single Fiber Fiber Media Converter SM 80 Km SC 1310nm 1550 nm External PS

    • Single Fiber Fiber Media Converter SM  80 Km SC 1310nm 1550 nm External PS
    • Single Fiber Fiber Media Converter SM  80 Km SC 1310nm 1550 nm External PS
    • Single Fiber Fiber Media Converter SM  80 Km SC 1310nm 1550 nm External PS
    • Single Fiber Fiber Media Converter SM  80 Km SC 1310nm 1550 nm External PS
  • Single Fiber Fiber Media Converter SM  80 Km SC 1310nm 1550 nm External PS

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: OPTFOCUS
    Certification: CE, FCC
    Model Number: OFS-GWS01/02-80

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pairs
    Price: negotiated
    Packaging Details: 48*42.5*38 CM 40pcs per carton
    Delivery Time: 3-5 working days after received your payment
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 10000 Pairs per Month
    Contact Now
    Detailed Product Description
    Eth: 10/100/1000M Color: Black, Silver Etc.
    Data Buffer: 256 K Humidity: 5 ~ 90%
    Storage Temperature: -20 ~ +70℃ Max Distance: 80 KM
    Operating Standards: IEEE802.3z/AB, 1000Base-T And 1000Base-SX/LX MAC Address Table: 4 K



    Single Fiber Fiber Media Converter SM 80 Km SC 1310nm 1550 nm External PS



    OFS-GWS01/02-80



    10/100/1000M Singlemode Single Fiber Converters



    OFS Gigabit Single Fiber Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX).

    The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 90km through single optical fiber link.



    It must be used in couples,because the transmitted optical differs from the receive optical in wavelength.

    6 Group LED indicated lights could fully monitor the working conditions of converters.

    It is easy for users to observe and diagnose the failure of converters.



    The performance and quality of the products are excellent because of adopting latest Gigabyte IC from USA and Taiwan.



    Technical Specifications



    Connector

    UTP: RJ-45,10/100/1000Mbps

    Fiber: SC,1000Mbps

    MAC address table 4K
    Data Buffer 256K
    Operating standards

     IEEE802.3z/AB,

    1000Base-T and 1000Base-SX/LX

    Dimensions

    40 (high) x 110(width) x 140 (length) mm

    Flow control

    Full Duplex: IEEE802.3x

    Half Duplex: back pressure

    Power

    AC. 220V(170-260V)

    50Hz;  DC. 5V,2A

    Ambient temperature 0 ~ +50℃
    Storage temperature -20 ~ +70℃
    Humidity 5% ~ 90%
    Cable

    UTP: Cat.5e or Cat.6 (the max distance up to 100m)

    Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125µm (the max distance up to 90km)



    Fiber Optic Information



    Type connector Max distance Wavelength TX power Sensitivity Link Budget
    OFS-GWS01/02-20 SC 20km

    1310/

    1550nm

    -11

    ~-5dBm

    -23dBm 12dBm
    OFS-GWS01/02-40 SC 40km

    1310/

    1550nm

    -5/-8

    ~0dBm

    -26dBm 21/18dBm
    OFS-GWS01/02-60 SC 60km

    1310/

    1550nm

    0/-5

    ~2dBm

    -26dBm 26/21dBm
    OFS-GWS01/02-80 SC 80km

    1490/

    1550nm

    -2

    ~3dBm

    -26dBm

    24dBm





    Main features



    ◆Supporting the max 1536 bytes packets

    ◆Adopting internal power supply to insure equipment at long-hours work stably.

    ◆The transmission of a channel signals can be completed by single fiber. It has doubled in quantity of          fiber data transmission compared with twin fiber.

    ◆Auto negotiation function allows UTP port to auto select 10/100/1000M and Full Duplex or Half Duplex

    ◆The UTP port supports MDI / MDI-X auto crossover.



    Order Information



    Model

    Product description

    OFS-GWS01/02 -xx

    10/100/1000M singlemode single fiber converters must be used and ordered in couples. One set of WS01 must be connected with another set of WS02 for using. WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The max distance of fiber is up to 20, 40, 60 or 80km. XX is the amount of distance.
