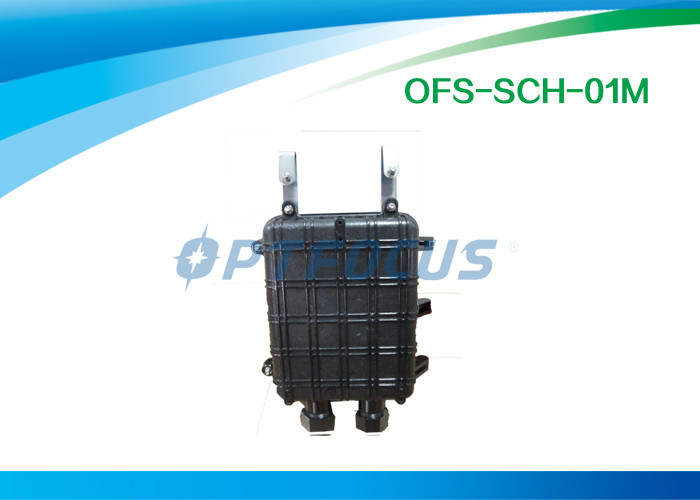

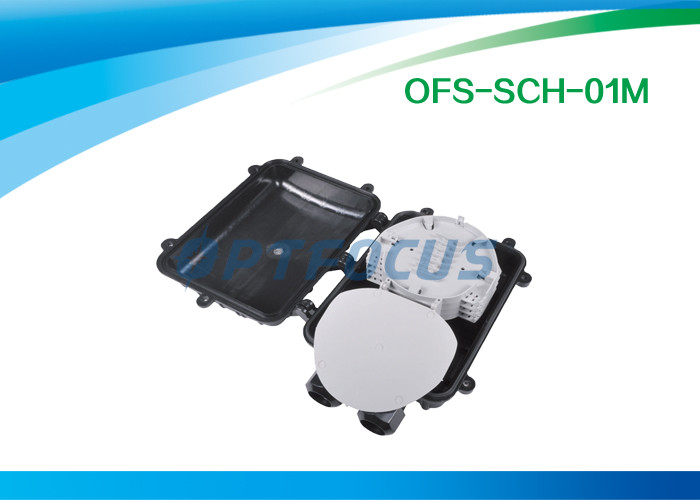

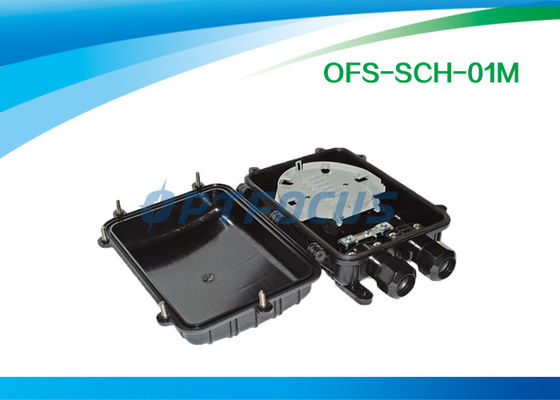

    Handhold Fiber Optic 96 Cores Splice Closure 1 Outlet 1 Inlet 24 Fibers



    OFS-SCH-01M

    Horizontal Splice Closure



    Features:



    l  Excellent sealing performance, reusable. Protection grade is IP 68.

    l  Installation Method: wall-mounted, aerial, pipe-lined, manhole

    l  Feature:

    l  Easy in operation and good in practicality.

    l  Inner and external push button can insure good sealing, requirements of cable torque, stretching, pressure, bending.

    l  Vulcanized sealing can meet the Φ8—Φ14 (mm) optical cable sealing needs with excellent re-package performance.

    l  The ambient temperature ranges from -40 to +65°C.



    Applications



    The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhold.



    OFS-SCH-01M Fiber Optic Splice Closure Datasheet



    Model No.

    Size (mm) L×W×H

    Core capacity

    Cable Ports (max)

    Max diameter of cable (mm)

    Weight (excluding outside box)

    OFS-SCH-01M-1

    280x200x90 (mm)

    96

    2(1 in 1 out)

    Φ8—Φ14 (mm)

    280x200x90 (mm)

    OFS-SCH-01M-2

    280x200x90 (mm)

    96

    2(1 in 2 out)

    Φ8—Φ14 (mm)

    280x200x90 (mm)



    Main components



    No.

    Name of components

    Quantity

    Usage

    Remarks

    1

    FOSC cover

    1 piece

    Protecting fiber cable splices in whole

    Internal diameter:

    205x146 (mm)

    2

    FOSC bottom

    1 piece

    Fixing reinforced core, fiber cable and FOST

    Internal diameter:

    205x146 (mm)

    3

    Fiber optic splice tray

    (FOST)

    Max. 4 pieces (bunchy)

    Fixing heat shrinkable protective sleeve and holding fibers

    Suitable for:

    Bunchy:6,12,24(cores)

    4

    Integrated seal fitting

    1 set

    Sealing between FOSC cover and FOSC bottom



    5

    Port plug

    2 pieces

    Sealing empty ports



    6

    Earthling deriving device

    1 set

    Deriving metallic components of fiber cable in FOSC for earthling connection.

    Configuration as per requirement.
