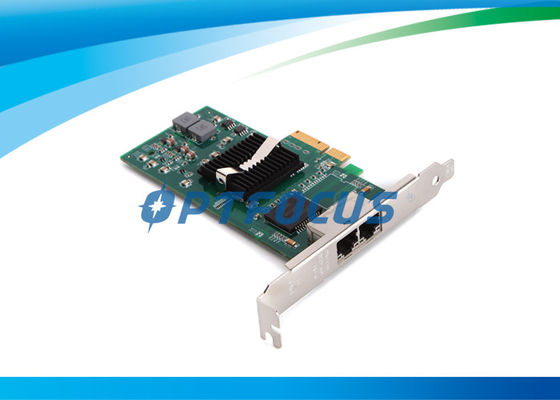

PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector

PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector

    • PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector
    • PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector
    • PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector
    • PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector
    • PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector
    • PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector
  • PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector

    Product Details:

    Place of Origin: Guangdong, China(Mainland)
    Brand Name: OPTFOCUS
    Certification: CE
    Model Number: OFS-FL1002T-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: negotiated
    Packaging Details: Normal Package
    Delivery Time: 5-8 days after payment received
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Network Standard: IEEE802.3 (10G-SR, 10G-LR) Working Temperature: 0°C-55°C (32°F-131°F)
    Working Humidity: 85% Chipset: Intel 82599EN 10G Ethernet Controller
    SFP+Products Type: 10G1BF- Indicator Lamp: 2LED
    IEEE802.3 (10G-SR, 10G-LR): Support Storage Humidity: 35°C 90%



    PCI Express Network Card Dual Ethernet Ports 32°F - 131°F Copper Connector



    Model Number: OFS-FL1002T-C



    Brand: OPTFOCUS



    Key Features



    Halogen-free quad-port Gigabit Ethernet adapters with Copper interface options

    Innovative power management features including Energy Efficient Ethernet (EEE) and DMA

    Coalescing for increased efficiency and reduced power consumption

    Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

    Scalable iSCSI performance delivering cost-effective SAN connectivity

    High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

    Reliable and proven Gigabit Ethernet technology from Intel Corporation



    Technical Specification :



    Product Code

    OFS-FL1002T-C

    Product Name

    Server Network Card

    Chipset

    Intel I350-AM4 Gigabit Controller

    Bus Interface

    PCI Express* V2.1 (5 GT/s) Support

    Bus Width

    x4 lane PCI Express operable in x4, x8, x16 slots

    Network interface type

    Dual-Port ,RJ45*2

    Data rate supported per port

    10/100/1000Mbps/Port

    Connectors

    Copper

    Network standard

    IEEE802.3auto-negotiation

    Brackets

    Half and full (two brackets)

    Intelligent offloads

    YES

    Operating Temperature

    0℃~55℃

    Operating Humidity

    85%

    Storage Temperature

    -40℃~70℃

    Storage Humidity

    90%

    Length

    13.3cm

    Width

    6.8cm

    Full-height end bracket

    12cm

    Low-profile end bracket

    8cm

    Packing Standard Size (Unit)

    23*14.6*2.7cm

    Intel Virtualiztion Technology

    (Intel VT)for connectivity

    On-chip Qos and traffic management,flexible port partitioning,Virtual Machine Device queues(VMDQ),PCI-SIG SR-IOV-capable

    Storage Over Ethernet

    Yes



    Operating System/Architectures Support

    Operating SYSTEM

    IA32

    X64

    IPF1

    Windows Server 2003 SP2

    Y

    N

    Windows Server 2008 SP2

    Y

    Y

    N

    Windows Server 2008 SP2 Core

    Y

    Y

    n/a

    Windows Server 2008 SP2 Core(w/Hyper-V role)

    n/a

    Y2

    n/a

    Hyper-V Server 2008 SP2

    n/a

    Y2

    n/a

    Windows Server 2008 R2

    n/a

    Y

    N

    Windows Server 2008 R2 Core

    n/a

    Y

    N

    Windows Server 2008 R2(w/Hyper-V role)

    n/a

    Y2

    n/a

    Windows Server 2008 R2

    n/a

    Y2

    n/a

    WinPE 1.6(2003PE)

    Y

    Y

    n/a

    WinPE 2.1(2008PE)

    Y

    Y

    n/a

    WinPE 3.0(2008 R2 PE)

    Y

    Y

    n/a

    Linux*Stable Kernel Version 3.x,2.6,X

    Y

    Y

    n/a

    Linux RHEL5.6

    Y

    Y

    N

    Linux RHEL 6.1

    Y

    Y

    n/a

    Linux SLES 10 SP4

    Y

    Y

    n/a

    Linux SLES 11 SP1

    Y

    Y

    N

    DOS*NDIS 2

    Y

    n/a

    n/a

    DOS ODI

    Y

    n/a

    n/a

    UEFI*2.1

    N

    Y

    N

    UEFI*2.3

    N

    Y

    N

    VMware*ESX 4.03

    n/a

    Y

    n/a

    VMware ESX 4.13

    n/a

    Y

    n/a

    VMware ESX5.03

    n/a

    Y

    n/a

    Xen4

    n/a

    Y

    n/a



    Key: Y=affected, N=not affected ,n/a=OS not available on specified architecture



    Overview:



    OFS-FL1002T-C builds on OPTFOCUS history of excellence. OPTFOCUS continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350-AM4, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments.This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).



    Advanced Technologies of IntelI350 Chipset controller



    Virtualization, Halogen free, intelligent offloads, storage over Ethernet, power management



    Flexible I/O Virtualization



    Scalable iSCSI Performance



    Power Management Technologies



    Energy Efficient Ethernet (EEE)



    The OFS-FL1002T-C supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard so that, during periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state.This reduces the controller power to approximately 50% of its normal operating power, saving power on the network port and the switch port. As soon as increased network traffic is detected, the controller and the switch quickly come back to full power to handle the increased network traffic.

    EEE is supported for both 1000BASE-T and100BASE-TX.



    DMA Coalescing



    Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically, when a packet arrives at a server, DMA calls are made to transfer the packet within the server. These calls wake up the processor, memory and other system components from a lower power state in order to perform the tasks required to handle the incoming packet.



    Based on the configurable DMAC settings, incoming packets are buffered momentarily before any DMA calls are made. This enables the controller to intelligently identify opportunities to batch multiple packets together so that when components are wakened from lower power states they can efficiently handle the batched packets at the same time. This enables platform components to remain in lower



    power states longer, which can dramatically reduce platform energy consumption. DMAC synchronizes DMA calls across all controller ports to ensure maximum power savings.



    Using Environment



     DELL Server,HP Server,IBM Server,INSPUR Server,Leno Server and other big server brand,

    IT System Integrator,Cloud,Big Date Center,Workstation,PC,FTTD Solution(Fiber to the desk) for

    Government,institution, School, personal using ,IDC etc.



     Partners and End-Users



    China Telecom, China Netcom, China Railcom, China Unicom, Space Unisign servers, Bank of China, Founder Technology, Dawning servers, Lenovo servers, IBM servers, HP servers, Dell servers, the Great Wall Broadband, Beijing Radio and Television General Institute, , World Chinese Youth Federation, Tsinghua Huambo, China Urban Planning and Design, Gehua, The People's Republic of China Ministry of Railways, China City Planning Information Network, etc.
