Product Details:

Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-IPV6900

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiated
Packaging Details: The seller standard export package
Delivery Time: within 3-5 days after get payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000pcs one month
Contact Now
Detailed Product Description
Color: Black Weight: 0.99kg
Meas: 235x225x97mm Main Chipset: Broadcom
Operation Temperature: 0~40℃ Relative Humidity: 10-65%



Black 4 SIP Poe IP Video Phone Broadcom Wifi Chip for SysLog / Web Capture 0.99kg

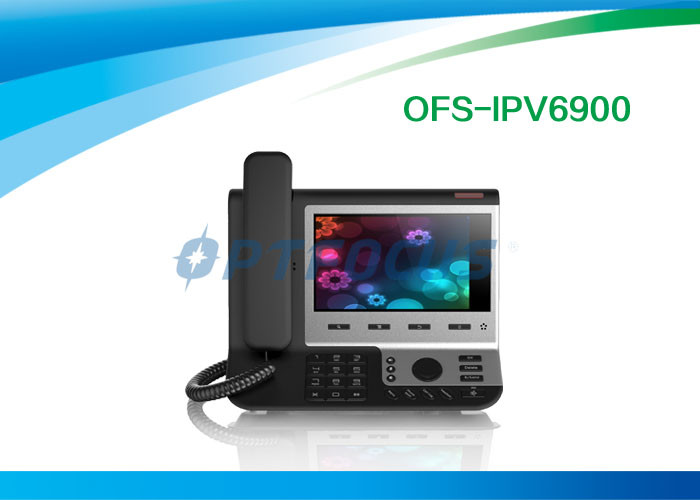

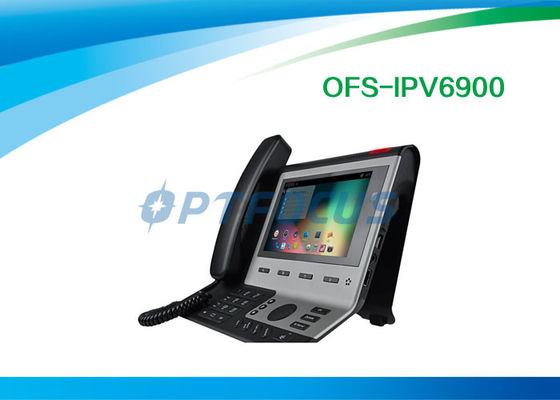

OFS-IPV6900 is the advanced IP video phone based on Android OS 4.0. It is equipped with the latest

freescale video chipset, a 7" LCD touch screen with 800x480 pixels and a 5M pixel camera. Android OS

guarantees the easy customization for telecom operator and service provider. The intelligent OS,

superior video quality, rich applications and affordable price, ensure OFS-IPV6900 IP video phone is the Pioneer for next generation smart video telephone.



Basic Feature

Support SIP 2.0 (RFC3261) and correlative RFCs

SIP supports 4 SIP servers, and backup SIP servers. Can connect to these SIP servers at the same

 time.

Support SIP UDP/TCP/TLS

Voice Codec:G.711A/U, G.723.1 high/low,G.729AB,G.722,iLBC ,AMR

Video Codec: H.263, H.264

Video solution: QCIF,CIF,VGA,4CIF,720P

Image format: JPG,PNG,GIF and BMP

Video format: MP4,3gp and FLV

Echo cancellation: G.168 Compliance in LEC, additional acoustic echo cancellation(AEC) can reach

96ms max filter length in hands-free mode

Support Voice Gain Setting, VAD, CNG

Support jitter buffer

Full duplex hands-free speakerphone

SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/

 IP call

DTMF Relay:support inband, SIP info, RFC2833

Support customized music rings

Multilanguage realizes localization

Support Multi-Country Tone Profile

Support STUN

Support SMS based on SIP

Volume(handfree/handset/headset/ring) adjustment

Visual angle adjustable display screen

Professional Speaker/handset HD Voice

Ergonomic handset(acoustical cochlea)

Support 1080P Video play



Advanced Application Features

Touched, Large dot matrix LCD display and softkeys make user easier to use

Friendly graphic menu

Open system with standard Android interface for customized development

SIP application: support forward/transfer (blind/attended/alert)/ holding/ waiting/3 ways conference/

call park/pickup/ join call/redial and unredial/click to dial

Support multi line and predial

Support messaging and MWI

Voice recording during talking /local

Call control features: flexible dial plan, dial peer,hotline, empty calling no. reject service, call firewall

for reject authenticated call, white list, limit call, do no disturb, auto answer, caller ID, CLIR (reject the anonymous call), CLIP (make a call with anonymous), Dial without register

Support call logs with missed calls/incoming calls/outgoing calls; The upper bound of all logs about

these types is 500

Support local Phonebook(XML/CSV/VCF)with 2000 entries

Phonebook records export/import

Support remote Phonebook

Support Function Key

Support Camera,Gallery,Picture frame and Screen saver

Media player(mp4, mp3, wav, wma)

USB disk, SD card file management

System files management

       Support SysLog and Web Capture



Network Features

WAN/LAN: support bridge mode

Support WIFI

Support PoE(802.3af)

Support DHCP Client on WAN

Support main DNS and secondary DNS server

Support VLAN

Support NTP Client

Support VPN L2TP,Open VPN/TLS, SRTP, HTTPS

Support QoS:802.1p/q, Diffserv

Support MD5 authentication

Network tools in telnet server: including ping, trace route, telnet client

Support Web Filter



Maintenance and Management

Android 4.0

Third party android application, e.g. email, IM, internet Radio, web browser

Application market

Desktop/google search

Desktop widget

Web ,telnet and keypad management

Management with different account right

Support automatic upgrades/configuration deployment

Support encrypted configuration files download with AES

Support pushing message

Support Auto Provision(DHCP option/PnP/Phone flash)

Support TR-069



Item

OFS-IPV6900

Adapter(Input/

Output)

Input:100-240V

Output:12V/1A

Port

WAN

10/100/1000 Base-T RJ-45 for LAN

LAN

10/100/1000 Base-T RJ-45 for PC

headset

3.5mm

SD card



HDMI

A type

USB

USB 2.0

Power Consumption

Idle : 2.5W/Active : 5W

LCD Size

Diagonal:7 inch

Pixels:800x480

capacitive touch screen

camera

5 mega pixel

Operation Temperature

0~40℃

Relative Humidity

10~65%

CPU

ARM Cortex –A9

(Freescale i.MX6)

CPU Frequence

1.0 GHz Quad/Dual

SDRAM

1GB

Flash

4GB

SD card

Optional

Weight

phone:1.2Kg/total:1.8Kg
