    Product Details:

    Place of Origin: China
    Brand Name: OPTFOCUS
    Certification: ROHS
    Model Number: OFS-FTH-512

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: negotiated
    Packaging Details: Carton Size(cm):63*61*45 Qty/CTN:4PCS G.W/CTN:15.8KG
    Delivery Time: 5-8 days afterpayment received
    Payment Terms: Western Union, T/T, L/C, Paypal
    Supply Ability: 10000PCS/Month
    Contact Now
    Detailed Product Description
    Size (mm)W*H: 510*250 Material: PC
    Core Capacity (max): 96cores Cable Ports: 4
    Max Diameter Of Cable (mm): 2*40, 2*20 Color: Black

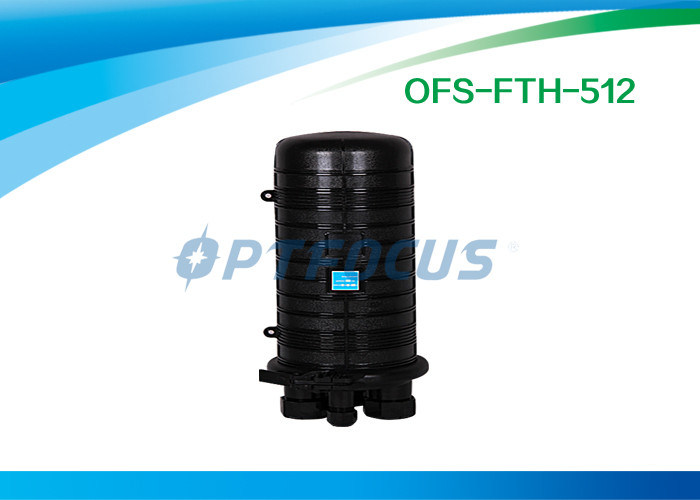

    96 Cores Outdoor Fiber Optic Joint Enclosure Vertical / Dome 4 port



    OFS-FTH-512

    Features:

    • Advanced internal structure design
    • Easy to re-enter,it never requires re-entry tool kit.
    • Teh closure is spacious enough for winding and storing fibers
    • Fiber Optic Splice Trays(FOSTs) are designed in SLIDE-IN-LOCK and its opening angle is about 90o
    • The curved diameter meets with international standard
    • Easy and fast to increase and reduce FOSTs
    • Straight-through for uncutting and branching for cut
    • Lay adapters suit for FTTH and easy to operate



    Applications



    l   Suitable for bunchy fibers



    l   Aerial,underground,wall-mounting,hand hole-mounting and duct-mounting



    l   It's especially applicable to FTTH optical fiber distribution

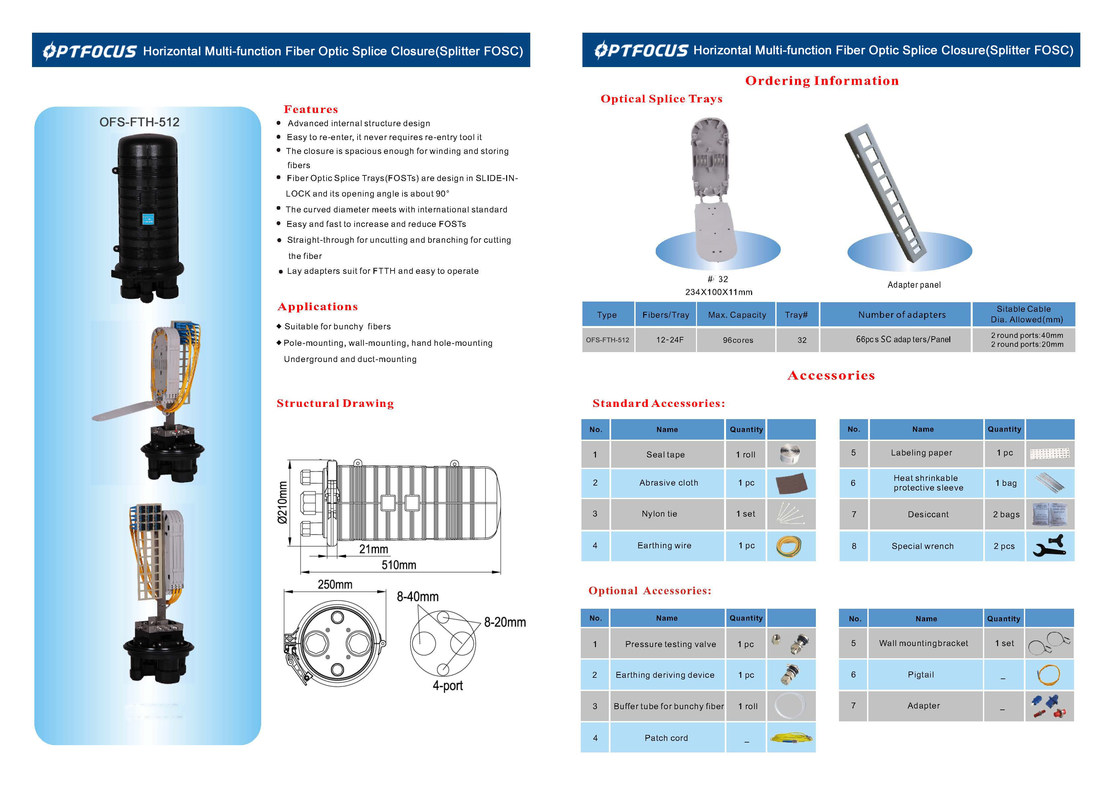

    OFS-FTH-512 Fiber Optic Splice Closure Datasheet



    Model No.

    Size (mm) W×H

    Core capacity

    Cable Ports (max)

    Max diameter of cable (mm)

    Adapter and holes of Front Panel

    OFS-FTH-512

    510x250

    96

    4

    2×Ø40
    2×Ø20

    SC adapters:66PCS





    Remarks:

    1. Installation accessories provided: one set of elastic seal fitting, seal tape, insulation tape, 2 pieces of special wrenches, abrasive cloth, earthing wire, nylon ties, labeling paper, measuring paper and desiccant.
    2. Accessories by customers’ selection: earthing device, buffer pipe for bunchy fiber, pressure testing valve, adapter panel, adapter, pigtail, patchcord, wall-mounting bracket and pole mounting bracket. 96 Cores Outdoor Fiber Optic Joint Enclosure Vertical / Dome 4 port
