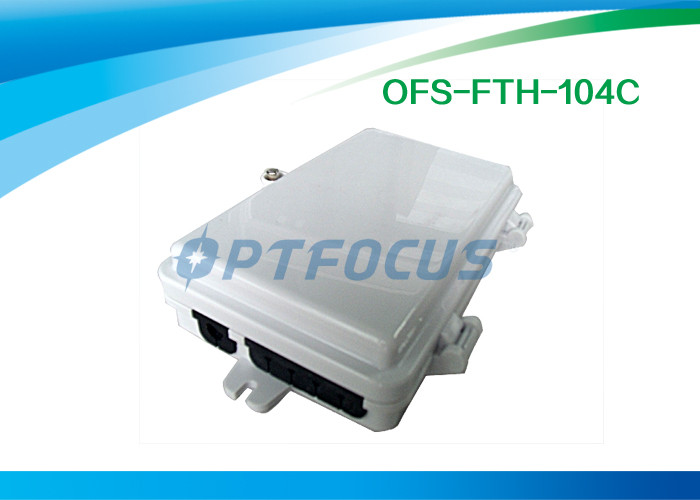

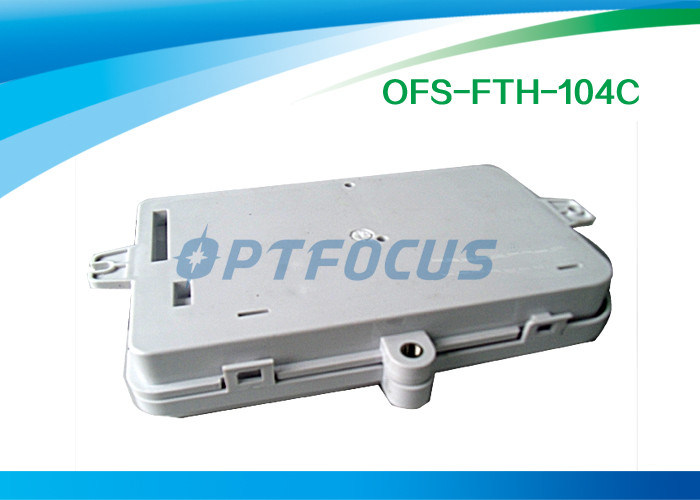

Wall Mount Fiber Termination Box 4 Core FTTH Small SC / FC / LC Connecter

Basic Information
Place of Origin: Guangdong, China(Mainland)
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-FTH-104C
Minimum Order Quantity: 5 pcs
Price: negotiated
Packaging Details: 540×350×370 mm
Delivery Time: 5-8 days after payment received
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000 pcs per month
Size(H*W*D)mm: H205×W115×D35 Max Capacity Of Splice: 2-4 Cores
Cable Diameter(mm): Φ7~Φ14 Inner Carton Weight: 0.25 Kg
Cable Ports: 2 Holes Inner Carton Dimensio N: 225×125 ×40 Mm
No Of Units Per Carton: 50 Pcs
High Light:

optical fiber termination box

,

optical termination box

Wall Mount Fiber Termination Box 4 Core FTTH Small SC / FC / LC Connecter



OFS-FTH-104C

 FTTH Outdoor Terminal Box



This series are used in the end termination of residential buildings and villas, to fix and splice with pigtails; can be installed on the wall; may adapt variety of optical connection styles; optical fiber can  be managed effectively.



FEATURES:






OFS-FTH-104C made of high quality engineer plastic, beautiful appearance, exquisite, using outdoor wall installation, reasonable internal structure, the installation, operation simple and convenient. The product is a maximum capacity of 4-core cable splice, splice tray with diversified structure, can be used

to install 1:4 PLC splitter, also can use heat shrink tube splice. And can use mechnical splicer connector the fiber cable,Optcial adaptor in the bottom  of the product's mounting bracket, the use of compression adapter installed, the adapter installation more secure, beautiful. and the cable entry port and exit port use the rubber plug , more operational flexibility






Main Technical Indexes:

  • Environmental Temperature:-25℃~40℃
  • Max capacity: 4 fibers;
  • Suitable types of fiber cables: 4 fibers outdoor fiber cables










Model No.



Size (mm) L×W×H



cable diameter(mm)

Cable Ports (max)

Max capacity of splice



QTY/CTN



Weight/unit(kg)



OFS-FTH-104C



210*140*40

Φ7~Φ10



1



4



60



20.4
