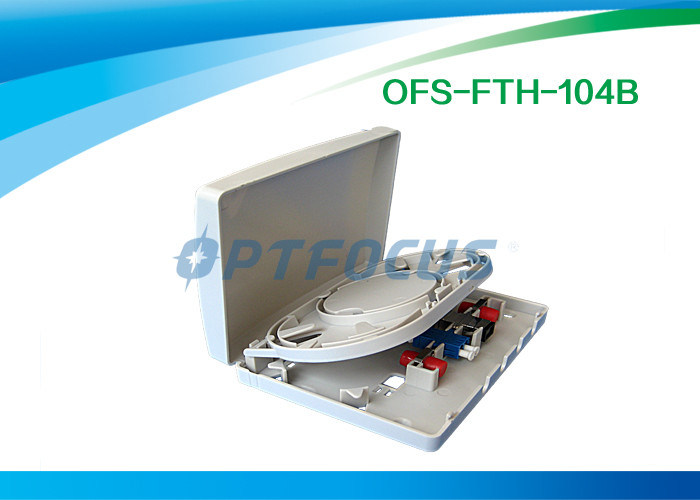

Small Wall Mount Fiber Termination Box 4 Core Lightweight 225×125×40 mm

Basic Information
Place of Origin: Guangdong, China(Mainland)
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-FTH-104 B
Minimum Order Quantity: 5 pcs
Price: negotiated
Packaging Details: 540×350×370 mm
Delivery Time: 5-8 days after payment received
Payment Terms: L/C, T/T, Western Union, paapal
Supply Ability: 10000 pcs per month
No Of Units Per Carton: 50 Pcs Max Capacity Of Splice: 2-4 Cores
Size(H*W*D)mm: H205×W115×D35 Cable Diameter(mm): Φ7~Φ14
Inner Carton Weight: 0.25 Kg Cable Ports: 2 Holes
Inner Carton Dimensio N: 225×125 ×40 Mm
High Light:

optical fiber termination box

,

optical termination box



Small Wall Mount Fiber Termination Box 4 Core Lightweight 225×125×40 mm



OFS-FTH-104





FTTH Termianl Box Datasheet



With max fiber capacity 4-16 cores, 4-16 adapter output, available for the installation of FC,SC,ST,LC adaptors





Items

OFS-FTH-104

OFS-FTH-108

OFS-FTH-116

Dimension

(mm)



H140×W130×D36



H200×W165×D40



H245×W200×D60

Weight(Kg)

0.4

0.6

1

Cable diameter (mm)



Φ5~Φ10



Φ5~Φ10



Φ5~Φ10



Cable entry ports



1hole



2holes



3holes



Max capacity



4cores



8cores



16cores







Model

Inner carton dimension

(mm)



Inner carton weight(kg)

Outer carton dimension

(mm)



Outer carton weight(kg)

No of unit per outer carton

(pcs)

OFS-FTH--104

150×145×55

0.4

730×320×290

22

50




Description

Type

Quantity

splice protective sleeves

60mm

available according to the fiber cores

Cable ties

60mm

10×splice tray

Installation nail

nail

3pcs



  Application:




Applicable to FTTH project, fixed and welding with pigtails of drop cable of residential building and villas, etc



  • Design of hinge and convenient press-pull button lock
  • Small size, light weight, pleasing in appearance
  • Can be installed on the wall with mechanical protection function
