    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: OPTFOCUS
    Certification: ROHS
    Model Number: OFS-FTH-C1

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: negotiated
    Packaging Details: 198*112*45 mm
    Delivery Time: 5-8 working days after payment received
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Dimension(mm) (LxWxH): 198*112*45 Max. No Of Splice Tray: 2
    Max. No. Of Pigtail: 12 AdapterMax.: SC, FC Or ST
    No. Of Adapter: 3 Material: Metal
    Fiber Count: 12

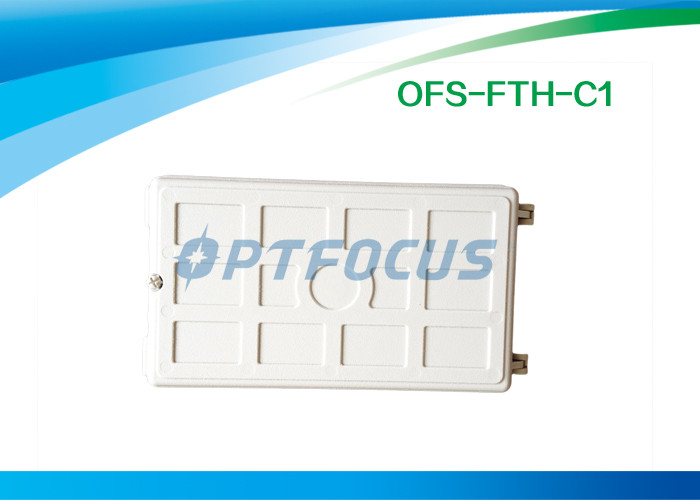

    Desktop Cable Termination Box 6 Core Optical Fiber Splice Tray 12 Pigtail Ø16mm



    OFS-FTH-C1

     FTTH Mini Terminal Box


     1. Applicable fiber cables



         Description                                                                                                                                          OFS-FTH-C1 termination box suits for jointing fibers with fiber pigtail and it protects fiber optic

    splices and helps to distribute. The termination box is either a wall-mounting type or desktop type,

    which is mainly used in telecommunication equipment room and network equipment room.

    OFS-FTH-C1 is applicable for splicing 2 pieces of fiber cable with max. diameter Ø16mm.



     2. Features



          ①.   The structure of OFS-FTH-C1 is innovative, designed in up-down bisection. Its installation is           simple. By untightening one piece of fixing nut, it succeeds in opening the housing and it allows

    fiber cable and fiber pigtail to pass in and out in single side.

             ②.   The housing of OFS-FTH-C1 is made of high strength polycarbonate plastic materials,

             which has mechanical strength; therefore it is reliable and long-lasting. It is of nice shape and                    beautiful appearance.

             ③.   Tray is designed in SLIDE-IN-LOCK and its opening angle is above 90o. Therefore it is easy for

    installation and maintenance. The curved diameter meets with the international standard. The capacity of tray is 6-12 cores.

    ④.  The elastic material is used to fix fiber pigtail. When the end of fiber pigtail can’t be determined (it is not used for the moment), it is possible to wind fiber pigtail into clasp. Whenever it is needed, the active connector could be installed outside of the housing. Therefore it can connect termination equipment without connecting adapters.



    3. Specifications:





    Model no.

    No of Entry

    /Exit Ports



    Max. No of Splice Tray



    Max Fiber Counter



    Max. No of Pigtail



    Max No. of   adapter



    Dimension (Lx W x H) mm





    OFS-FTH-C1



    2



    2



    12



    12



    /

    198*112*45





    Accessories

    Accessories provided with termination box: insulation tape .nylon tie .numbering paper. fixer . Accessories to be ordered in  addition :         pigtail , patch cord.
