| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | 3C,CE,FCC,RoHS |
| Model Number: | OFS-PE-DT10-I 10 |
| Minimum Order Quantity: | 2 piece |
| Price: | USD 19.9 1piece |
| Packaging Details: | Box and carton |
| Delivery Time: | 7-14 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 piece a month |
| Address Database Size: | 1K | Bandwidth: | 2Gbps (non-blocking) |
|---|---|---|---|
| Forwarding Mode: | Store-And-Forward | PoE Ports: | Port 1-8 Support POE |
| PoE Port Power: | 15.4W For Each POE Port | PoE Standard: | IEEE 802.3af |
| Warranty: | 2 Year Warranty | Keywords: | POE Switch |
| Key Word: | Ethernet Switch | ||
| High Light: | 1000Mbit Power Over Ethernet POE,MDIX Power Over Ethernet POE,2Gbps POE Gigabit Switch |
||

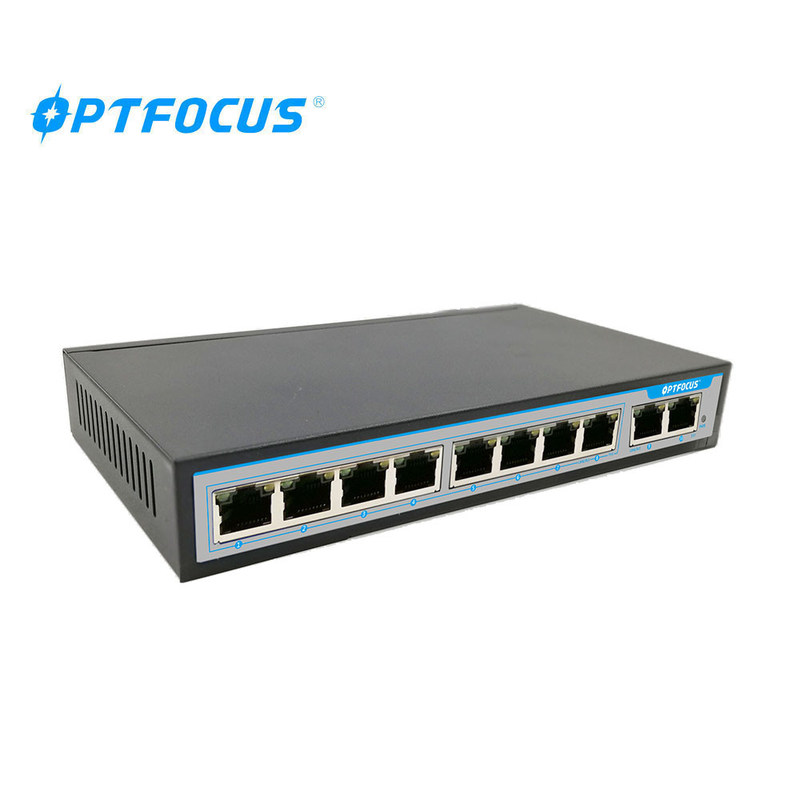

Power Supply 1000Mbit 10 Ports Ethernet Optical Fiber Poe Gigabit Switch
10-Ports 10/100/1000M PoE Switch with 8*10/100/1000M PoE Ports + 2*1000M SFP Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone,wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.This series of POE switches, using 8POE ports + 2uplink Gigabit Fiber port, the uplink port is to connect with the network equipment which provide data.
OFS-IGSF1T8-20seriesisanunmanagedGigabitindustrialEthernetfastswitchindependentlydevelopedbyourcompany,supporting1Gigabitopticalport(moduleoptional)+810/100/1000Base-TadaptiveRJ45ports,POEisoptional.Theproductcompletelyfollowsthedesignandmaterialsofindustrialproducts.Theshellismadeofaluminumalloytoenhancetheheatdissipationefficiency.Throughthedesignoffanlessheatdissipationcircuit,widerangeofworkingenvironmenttemperature,highprotectionlevelandothertechnologies,itprovidesexcellentindustrialproductssuchashigh/lowtemperatureresistance,lightningprotection,etc.Class-levelquality;industrial-gradethree-levelESDprotectionissuitableformanyoccasions,suchasdeploymentrequirementsinintelligenttransportation,outdoormonitoring,industrialnetworks,safecitiesandotherharshenvironments
OFS-PE-DT10-I-10/100M 8 ports PoE Switch
The OFS-PE-DT10-I 10 ports POE Switch, Adapted high-quality high-speed network IC and the most stable POE chip, POE port to meet the IEEE802.3af standard, this series of POE switches can be 10/100M Ethernet Network provides seamless connection, and POE power supply port can automatically detect IEEE802.3af compliant power supply equipment and its power supply,Only transmit data for non-POE equipment .
POE technology (Power over Ethernet) , it refers to some IP-based terminals (such as IP telephones, wireless access AP, network cameras, etc.) while transmitting data signals, but also for the device to provide DC power supply Technology, which receive DC power supply equipment called power receiving equipment.
This series of POE switches, using 8 POE ports + 2 uplink fast Ethernet port, the uplink port is to connect with the network equipment which provide data.
◆ 8*10/100/1000M PoE Ports + 2*1000M SFP Port ;
◆ Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards;
◆ Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆ Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆ Support port auto flip (Auto MDI/MDIX);
◆ Exchange mechanism using store-and-forward;
◆ All ports support wire-speed switching;
◆ Automatically supplied to adaptive devices;
◆ Panel indicator monitoring status and help failure analysis.
