| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE |
| Model Number: | OFS-WS01/02-20 |
| Minimum Order Quantity: | 2 pcs |
| Price: | USD 4~7.5/piece |
| Packaging Details: | 1 piece / box |
| Delivery Time: | 5-10 days, depend on the quantity |
| Payment Terms: | L/C , T/T , Western Union , MoneyGram |
| Supply Ability: | 50000 pcs / month |
| Product: | 10/100M Media Converter | Fiber Port: | 1*100Mbps |
|---|---|---|---|
| RJ45 Port: | 1*10/100Mbps,Auto MDI/MDI-X | Power Consumption: | 2.5W |
| Forwarding Rate: | 1488000pps/port | Working Temperature: | 0~55℃ |
| High Light: | 20km Fiber Optic Ethernet Converter,100mbps Fiber Optic EthernetConverter,2.5W Single Fiber Ethernet Converter |
||

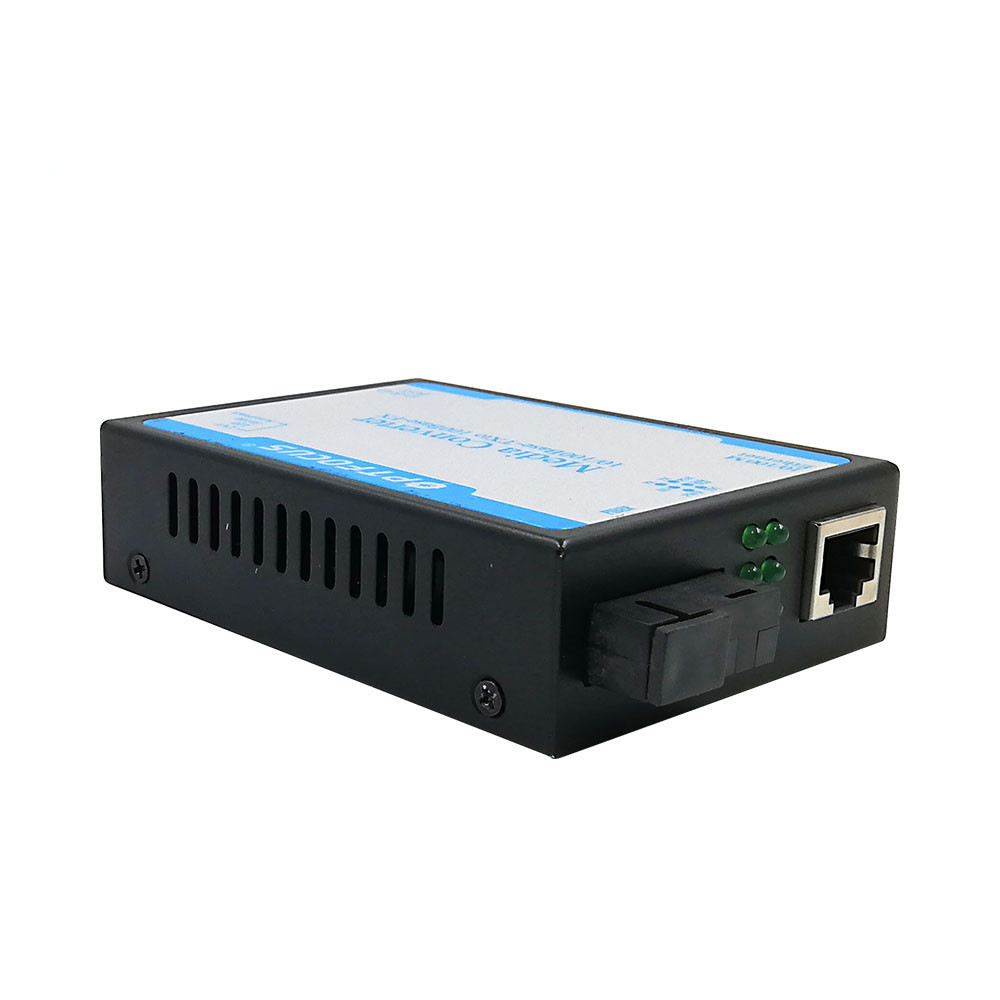

Metal Desktop 10/100mbps Sm Single Fiber 20km Fiber Optic Ethernet Media Converter
Description
OFS-WS01/02-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone.
The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.
Features
- 1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps
- 10/100Mbps Auto-negotiation auto-MDI-MDI-X
- Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX,100Base-FX Standard
- Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
- Supporting 1480bytes packet
- Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
- Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps
- Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
- LED indicators: Power, FX 100, FX Link/Act,TX 100, TX FDX, TX Link/Act
- Supports link fault passthrough function
- Design of internal or external powersupply for selection byend-users
Technical parameter list
| Product Name | 10/100M Media Converter | ||
| Product Model | OFS-WS01/02-20 | ||
| Connector | Fiber: 1* 100Mbps | ||
| RJ45: 1*10/100Mbps,Auto MDI/MDI-X | |||
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) | ||
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |||
| Fiber Media | Fiber(Multimode): 50/125, 62.5/125μm(the max distance up to 2km) | ||
| Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 120km) | |||
| Forwarding Mode | Store-and-Forward | ||
| Forwarding Rate | 1488000pps/port | ||
| Operating standard | EEE802.3, IEEE802.3u | ||
| External Power | Input:AC 110~240V Output:DC 5V (default). or Input:DC:12V~-72V;Output:DC 5V (Optional) |
||
| USB power supply(Optional). | |||
| Power consumption | 2.5W | ||
| LED |
Power, 100, FX Link/Act, TX 100, TX FDX, TX Link/Act. |
||
| Working Environment | Working temperature: 0~55ºC ; | ||
| Storage temperature: -20~75ºC | |||
| Relative Humidity: 5%~95 %( no condensation) | |||
| DIP settings | SW1 | ON |
TP at auto-negotiation(default)
|
| OFF |
Force TP at 10M or at half duplex
|
||
| SW2 | ON |
TP at 100M (default)
|
|
| OFF |
TP at 10M when TP at Force
|
||
| SW3 | ON |
TP at full duplex(default)
|
|
| OFF |
TP at half duplexwhen TP at Force
|
||
| SW4 | ON |
Disable Link Fault
|
|
| OFF |
Enable Link Fault Pass-Through
|
||
